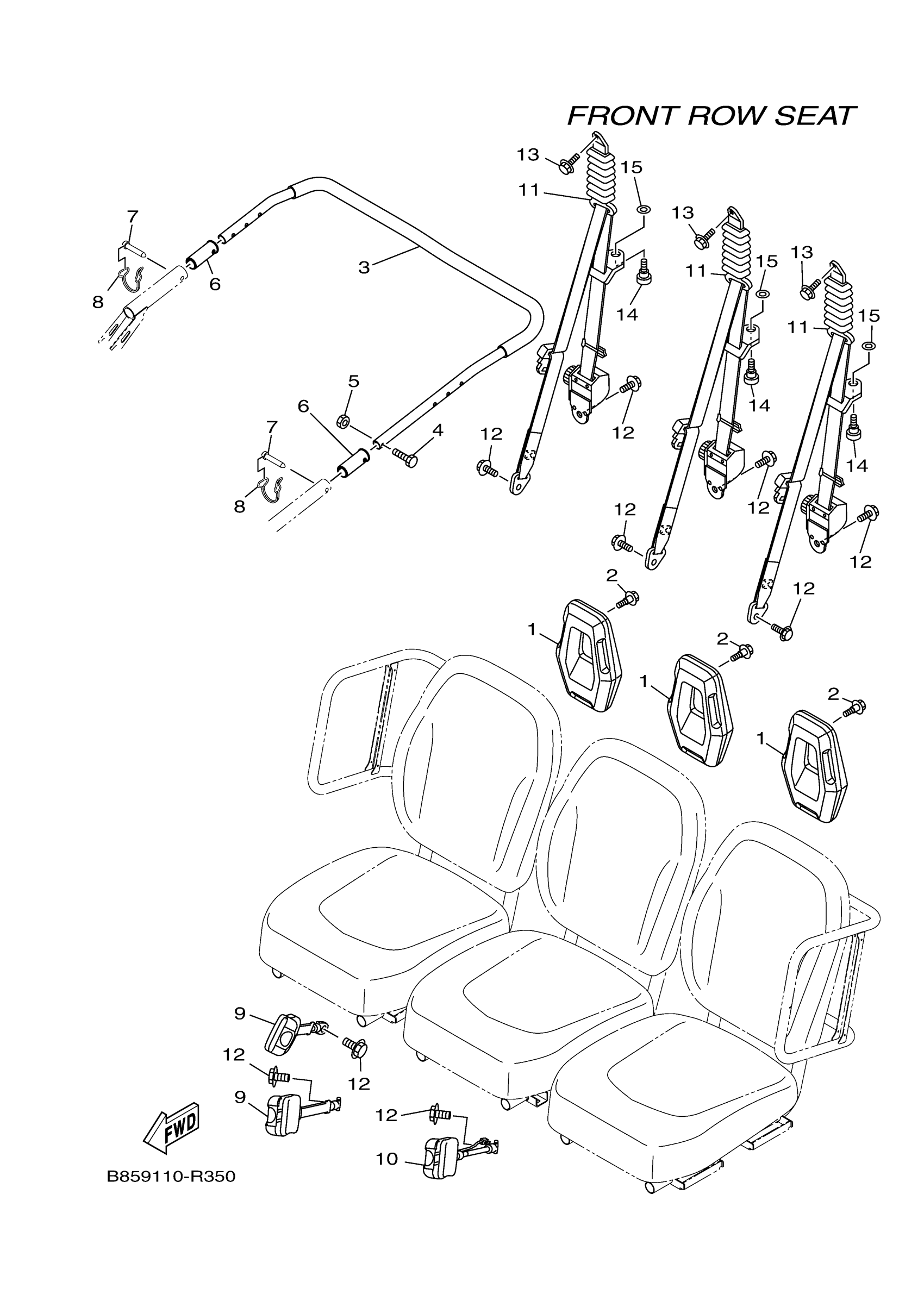

Yamaha YXC70VPXJR (VIKING VI EPS) B85H1 2018 SEAT 2 Diagram

#

Description
Price

1

HEAD REST

2PG-F472L-00-00

Unavailable

2

BOLT

90109-06079-00

$2.60

3

ASSIST GRIP ASSY.,

1XD-F470J-00-00

$139.99

4

BOLT

90101-06824-00

$3.24

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

BUSH, CAP

1XD-F467K-00-00

Unavailable

7

PIN, LOCK

1XD-F5926-00-00

$2.70

8

SNAP, PIN

1XD-F311F-00-00

$7.99

9

FR. BELT RECEIVER

2PG-F470R-00-00

$43.99

10

FR. BELT RECEIVER

2PG-F470R-10-00

$97.99

11

FR. SEAT BELT ASSY

B85-F470L-00-00

$161.99

12

BOLT, FLANGE

95812-12020-00

$8.49

13

BOLT,HEX. SOCKET B

90111-12002-00

$3.81

14

BOLT, SPECIAL

16B-F3394-01-00

$2.70

15

WASHER, PLATE

90201-11801-00

Unavailable
