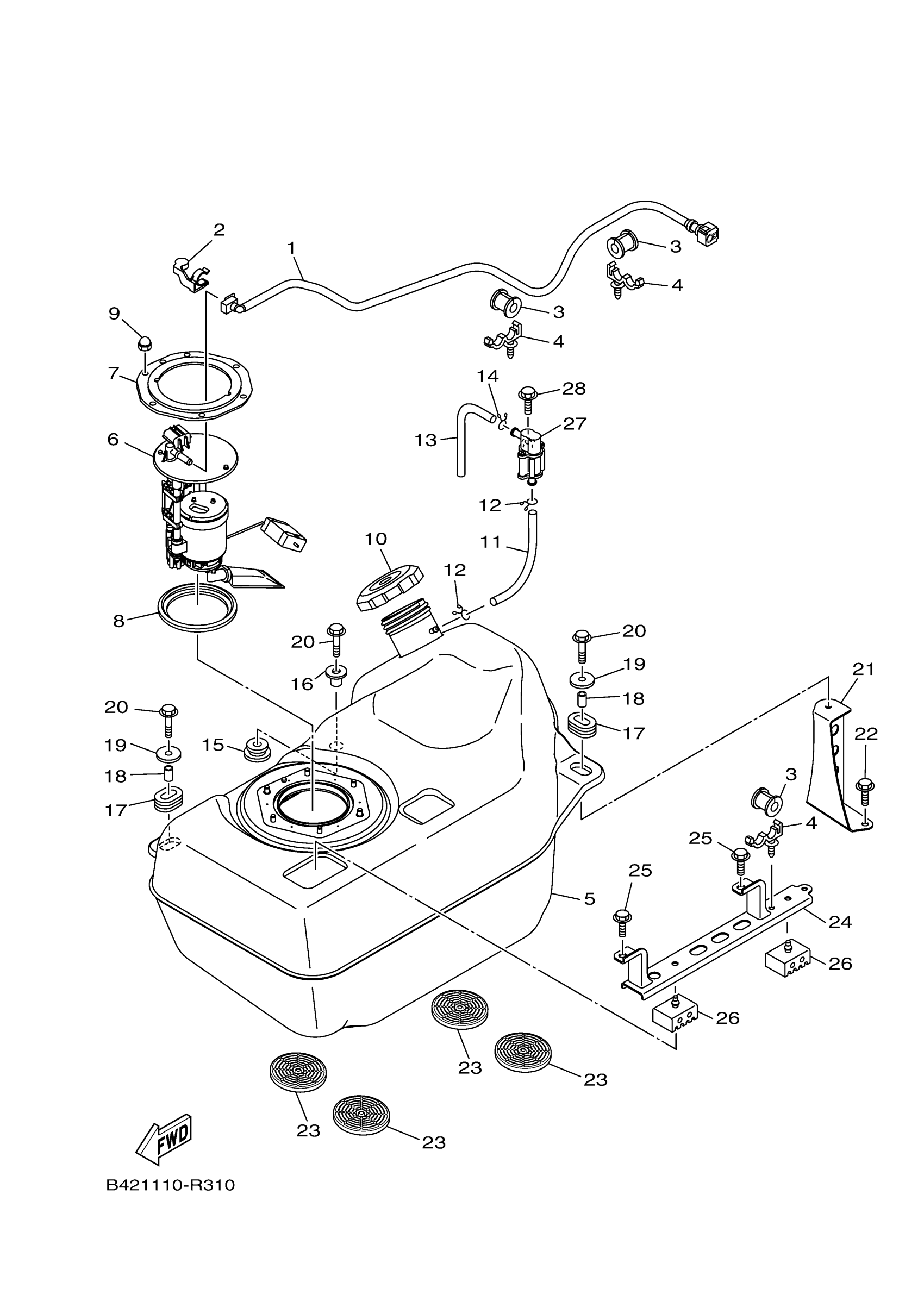

Yamaha YXC70VPXJR (VIKING VI EPS) B85H1 2018 FUEL TANK Diagram

#

Description
Price

1

PIPE, FUEL 1

1XD-13971-01-00

$88.99

2

CLAMP

90464-14004-00

$7.49

3

GROMMET(4CG)

90480-20543-00

$8.49

4

CLAMP

90464-20010-00

$3.23

5

FUEL TANK COMP.

1XD-F4110-00-00

$244.99

6

Fuel Pump Comp

3B4-13907-13-00

$317.99

7

BRACKET, FUEL PUMP

3B4-24491-00-00

Unavailable

8

O-RING

1S3-24486-00-00

$17.49

9

NUT (J17)

95380-06800-00

$8.49

10

CAP ASSY

BVG-24610-00-00

Unavailable

11

HOSE (L160)

90445-09827-00

Unavailable

12

CLIP

90467-090A2-00

$4.41

13

HOSE (L85)

90445-09826-00

Unavailable

14

CLIP

90467-090A2-00

$4.41

15

GROMMET

90480-18016-00

$8.49

16

COLLAR

90387-07021-00

Unavailable

17

GROMMET(38W)

90480-01400-00

Unavailable

18

COLLAR(2UJ)

90387-061V1-00

Unavailable

19

WASHER (23T)

90201-065G8-00

Unavailable

20

BOLT, FLANGE

95817-06030-00

Unavailable

21

BRACKET, FUEL TANK 1

1XD-F4291-00-00

Unavailable

22

BOLT, FLANGE

90105-06831-00

Unavailable

23

DAMPER, LOCATING 1

2MB-F4181-00-00

Unavailable

24

STAY, FUEL TANK 1

1XD-F4157-00-00

Unavailable

25

BOLT, FLANGE

90105-08867-00

Unavailable

26

DAMPER, LOCATING 2

1XD-24182-00-00

Unavailable

27

PIPE JOINT ASSY

28P-24380-00-00

Unavailable

28

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

Unavailable
