- YXC70VPXJR (VIKING VI EPS) B85H1 2018
FRONT BRAKE CALIPER

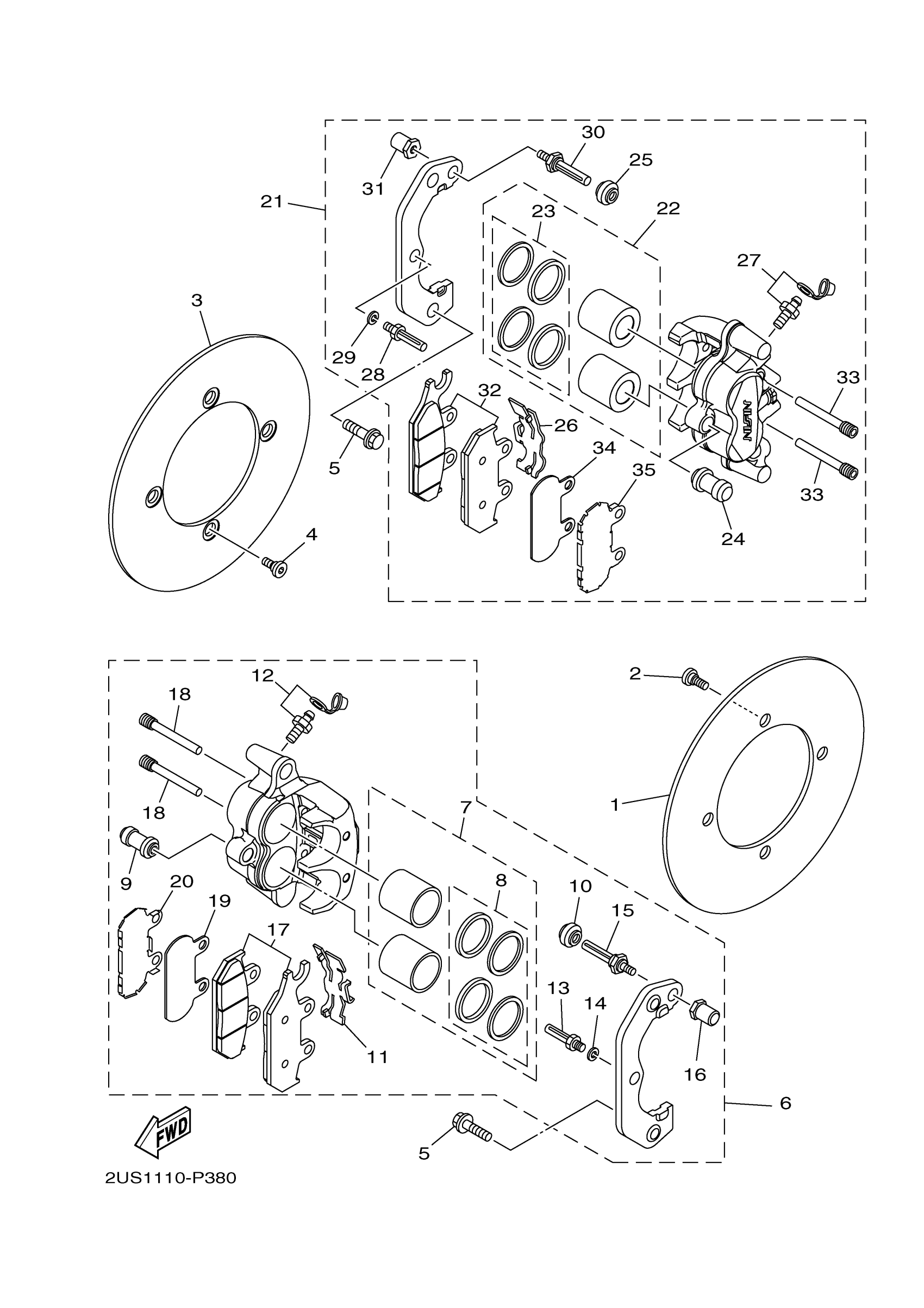

Yamaha YXC70VPXJR (VIKING VI EPS) B85H1 2018 FRONT BRAKE CALIPER Diagram
#
1
DISC, BRAKE (LEFT)
1XD-F582T-00-00
$53.99
2
BOLT
90109-08087-00
$8.49
3
DISC, BRAKE (LEFT)
1XD-F582T-00-00
$53.99
4
BOLT
90109-08087-00
$8.49
5
BOLT, FLANGE
90105-10265-00
$5.60
6
CALIPER ASSY (LEFT
2PG-2580T-00-00
Unavailable
7
PISTON ASSY, CALIPER
1XD-25802-00-00
$44.99
8
CALIPER SEAL KIT
1XD-25803-00-00
$42.99
9
BOOT 2
1UY-25937-51-00
$14.49
10
BOOT, CALIPER
3JD-25917-00-00
$8.99
11
SUPPORT, PAD
1XD-25919-00-00
$13.49
12
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
13
BOLT
1UY-25926-51-00
$4.47
14
WASHER, SPRING
1UY-25938-51-00
Unavailable
15
BOLT
3JD-25926-00-00
$7.99
16
NUT
3JD-25961-00-00
Unavailable
17
BRAKE PAD KIT
1XD-25805-00-00
Unavailable
18
PIN, PAD
3TB-25933-00-00
Unavailable
19
SHIM, CALIPER
2PG-25827-00-00
Unavailable
20
SHIM, CALIPER
2PG-25828-00-00
Unavailable
21
CALIPER ASSY (RIGH
2PG-2580U-00-00
Unavailable
22
PISTON ASSY, CALIPER
1XD-25802-00-00
$44.99
23
CALIPER SEAL KIT
1XD-25803-00-00
$42.99
24
BOOT 2
1UY-25937-51-00
$14.49
25
BOOT, CALIPER
3JD-25917-00-00
$8.99
26
SUPPORT, PAD
1XD-25919-00-00
$13.49
27
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
28
BOLT
1UY-25926-51-00
$4.47
29
WASHER, SPRING
1UY-25938-51-00
Unavailable
30
BOLT
3JD-25926-00-00
$7.99
31
NUT
3JD-25961-00-00
Unavailable
32
BRAKE PAD KIT
1XD-25805-10-00
Unavailable
33
PIN, PAD
3TB-25933-00-00
Unavailable
34
SHIM, CALIPER
2PG-25827-00-00
Unavailable
35
SHIM, CALIPER
2PG-25828-00-00
Unavailable
