- YXC70VPXHR (VIKING VI EPS) B85A1 2017
FRONT SUSPENSION WHEEL

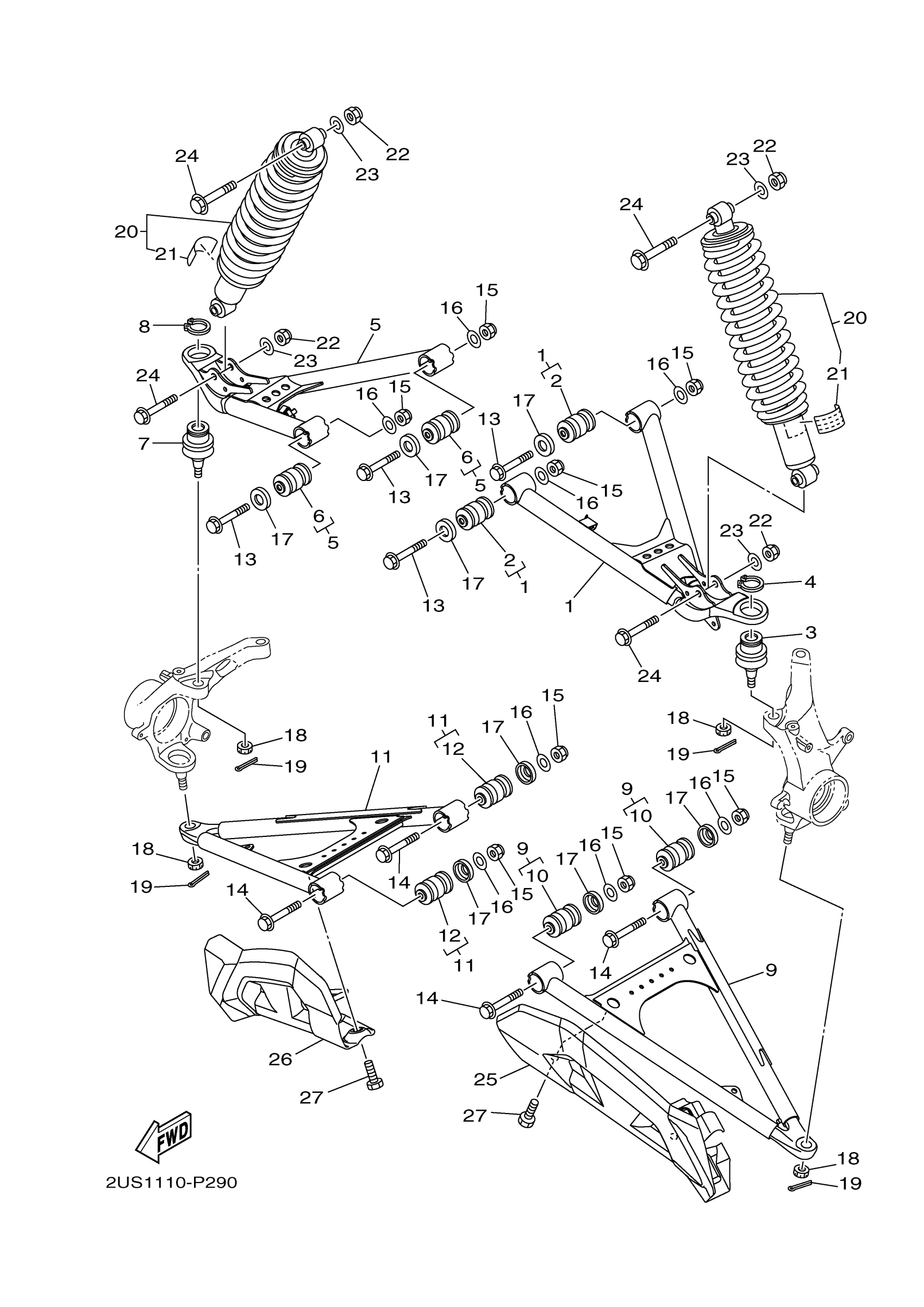

Yamaha YXC70VPXHR (VIKING VI EPS) B85A1 2017 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
1
FRONT UPPER ARM CO
1XD-F3540-02-00
$87.99
2
BUSH
1HP-F3526-00-00
$22.99
3
BALL JOINT 2
1XD-23579-00-00
$76.99
4
CIRCLIP
93410-32075-00
$9.49
5
FRONTUPPERARMCOMP.(RIGHT)
1XD-F3550-01-00
Unavailable
6
BUSH
1HP-F3526-00-00
$22.99
7
BALL JOINT 2
1XD-23579-00-00
$76.99
8
CIRCLIP
93410-32075-00
$9.49
9
FRONT LOWER ARM CO
2PG-F3570-01-00
$91.99
10
BUSH
1HP-F3526-00-00
$22.99
11
FRONT LOWER ARM CO
2PG-F3580-01-00
$87.99
12
BUSH
1HP-F3526-00-00
$22.99
13
BOLT, FLANGE
90105-10272-00
$7.49
14
BOLT, FLANGE
90105-10267-00
$9.49
15
NUT, SELF-LOCKING
90185-10012-00
$9.49
16
WASHER, PLATE
90201-10035-00
Unavailable
17
WASHER
5KM-22149-10-00
Unavailable
18
NUT, CASTLE
90171-12001-00
Unavailable
19
PIN, COTTER
91490-25020-00
Unavailable
20
SHOCK ABSORBER ASS
2PG-F3390-00-00
Unavailable
21
LABEL,WARNING
1HP-F2259-01-00
Unavailable
22
NUT, SELF-LOCKING
90185-10012-00
$9.49
23
WASHER, PLATE
90201-10035-00
Unavailable
24
BOLT, FLANGE
90105-10199-00
Unavailable
25
COVER, UNDER 1
1XD-F3123-00-00
Unavailable
26
COVER, LOWER 2
1XD-F3133-00-00
Unavailable
27
BOLT
90109-06220-00
Unavailable
