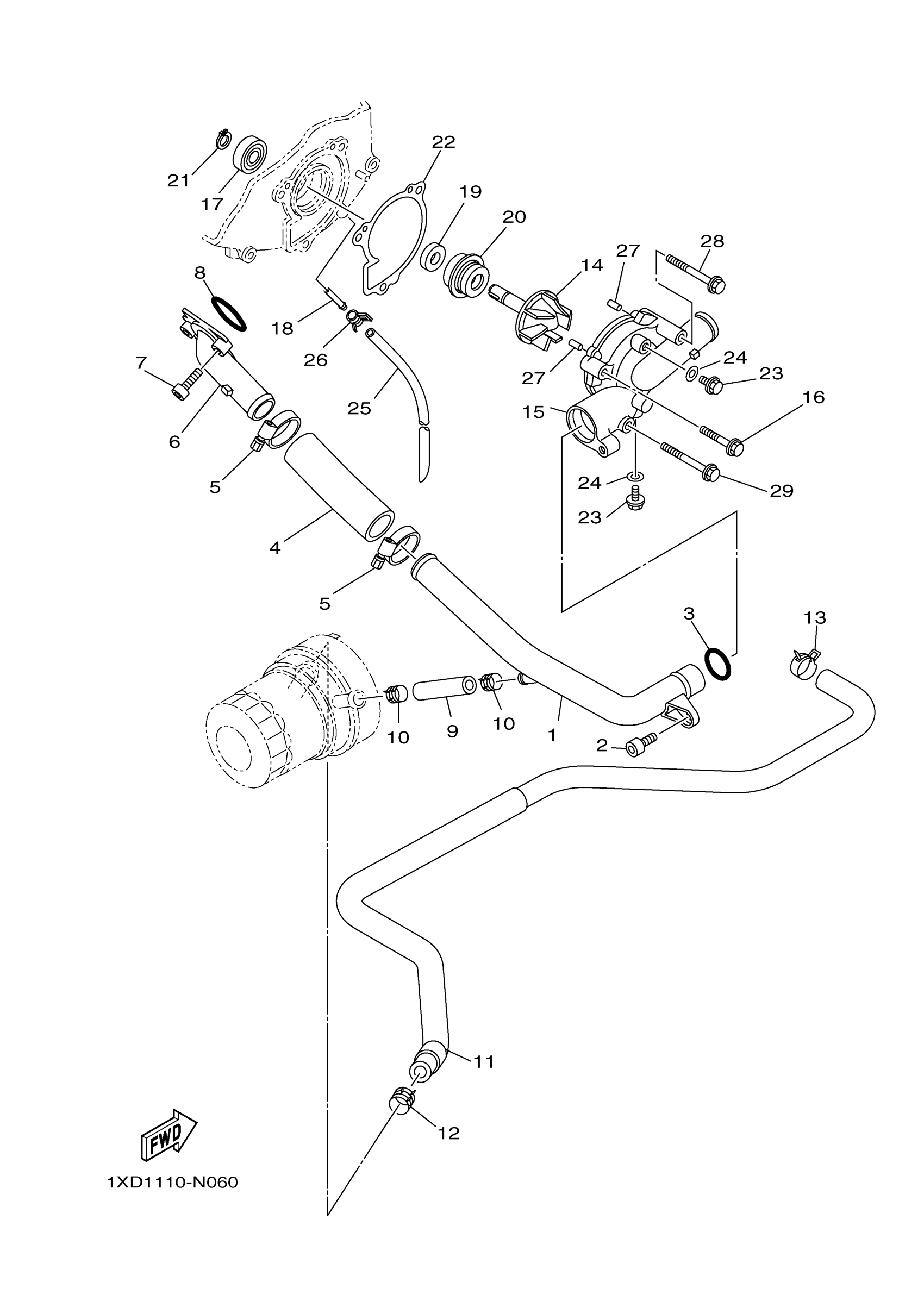

Yamaha YXC70VPXGR (VIKING VI EPS) B8512 2016 WATER PUMP Diagram

#

Description
Price

1

PIPE 1

1XD-12481-00-00

$40.99

2

BOLT,SOCKET

91317-06012-00

$8.49

3

O-RING

93210-21190-00

$7.49

4

HOSE (L88)

90445-29002-00

$5.49

5

HOSE CLAMP ASSY

90450-32015-00

$17.99

6

JOINT 1

5KM-12469-00-00

$56.99

7

BOLT,SOCKET HEAD

91314-06020-00

$1.49

8

O-RING

93210-33006-00

$4.72

9

HOSE (L58)

90445-16018-00

Unavailable

10

CLIP (4X7)

90467-15054-00

$8.49

11

HOSE 2

1XD-1243E-00-00

$42.99

12

CLIP (4X7)

90467-15054-00

$8.49

13

CLIP (4X7)

90467-15054-00

$8.49

14

IMPELLER SHAFT ASSY

3B4-12450-00-00

$53.99

15

COVER, HOUSING

5B4-12422-00-00

$80.99

16

BOLT, FLANGE

95022-06030-00

Unavailable

17

BRG,R-B 6000 26MM 19G KY

93306-00004-00

Unavailable

18

PIPE, DRAIN

5D3-1243K-00-00

Unavailable

19

OIL SEAL (J10)

93101-10090-00

Unavailable

20

SEAL, MECHANICAL

11H-12438-10-00

Unavailable

21

CIRCLIP(10W)

99009-10400-00

Unavailable

22

GASKET, HOUSING COVER 2

3B4-12428-00-00

Unavailable

23

BOLT, FLANGE

95022-06010-00

Unavailable

24

GASKET 256113960000

90430-06014-00

Unavailable

25

HOSE (L1050)

90445-072G8-00

Unavailable

26

CLIP(42X)

90467-07093-00

Unavailable

27

PIN,DOWEL (603)

93604-10011-00

Unavailable

28

BOLT, FLANGE

95022-06050-00

Unavailable

29

BOLT, FLANGE

95022-06050-00

Unavailable
