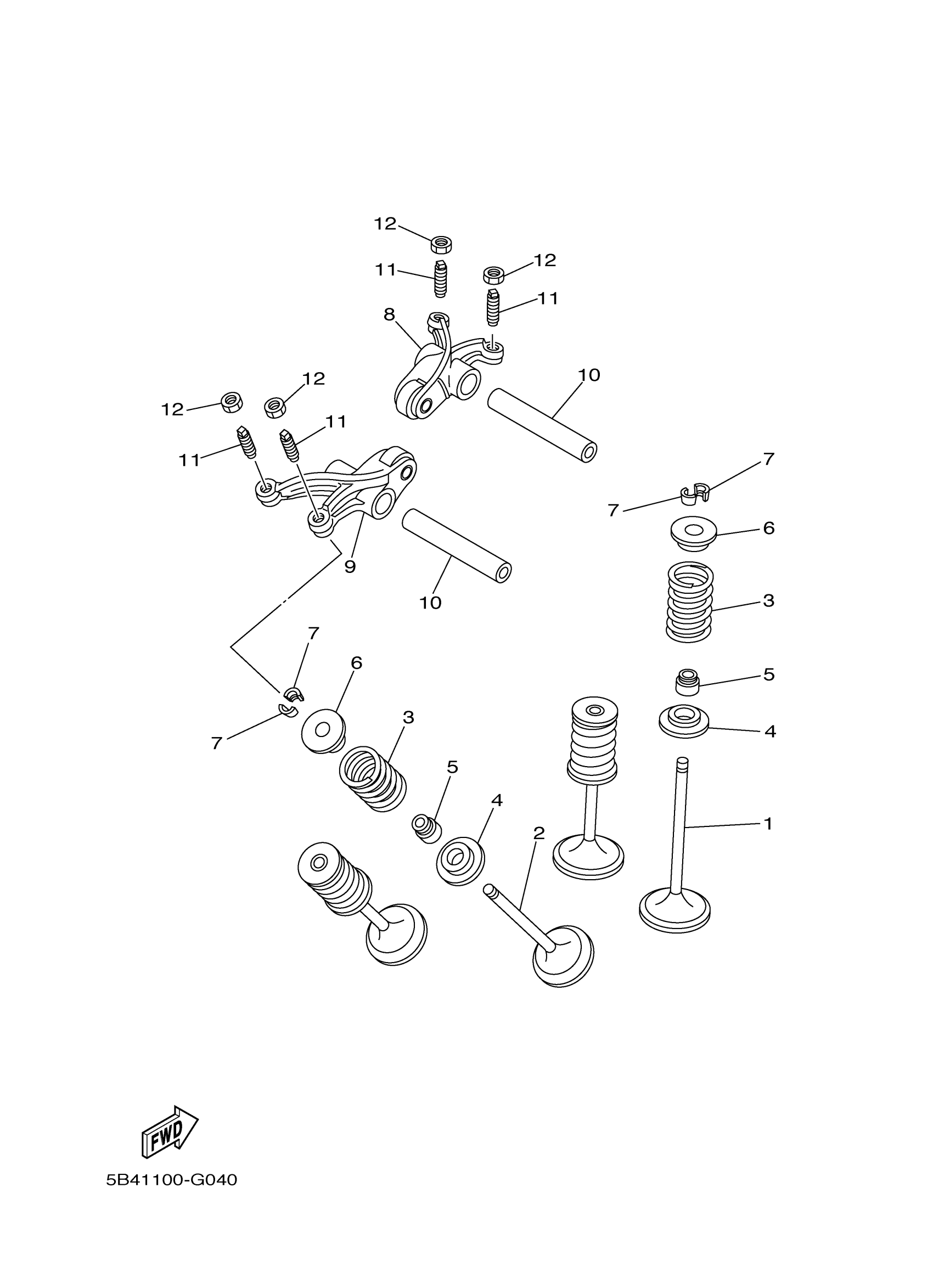

Yamaha YXC70VPSHL (VIKING VI EPS SPECIAL EDITION) B85F 2017 VALVE Diagram

VALVE, INTAKE

5VK-12111-00-00

$41.99

VALVE, EXHAUST

5VK-12121-00-00

$85.99

SPRING, VALVE INNER

5VK-12113-00-00

$19.49

SEAT, VALVE SPRING

1PE-12116-00-00

$7.99

SEAL, VALVE STEM

5H0-12119-00-00

$16.49

RETAINER, VALVE SPRING

3YF-12117-01-00

$15.49

COTTER, VALVE

4G0-12118-00-00

$7.99

ARM, VALVE ROCKER

5VK-12151-00-00

$138.99

ARM, VALVE ROCKER 2

5VK-12161-10-00

$94.99

SHAFT, ROCKER

5VK-12146-00-00

$22.99

SCREW, VALVE ADJUSTING

5XT-12159-00-00

$9.99

NUT HEXAGON 371121580000

90170-06128-00

$8.49
