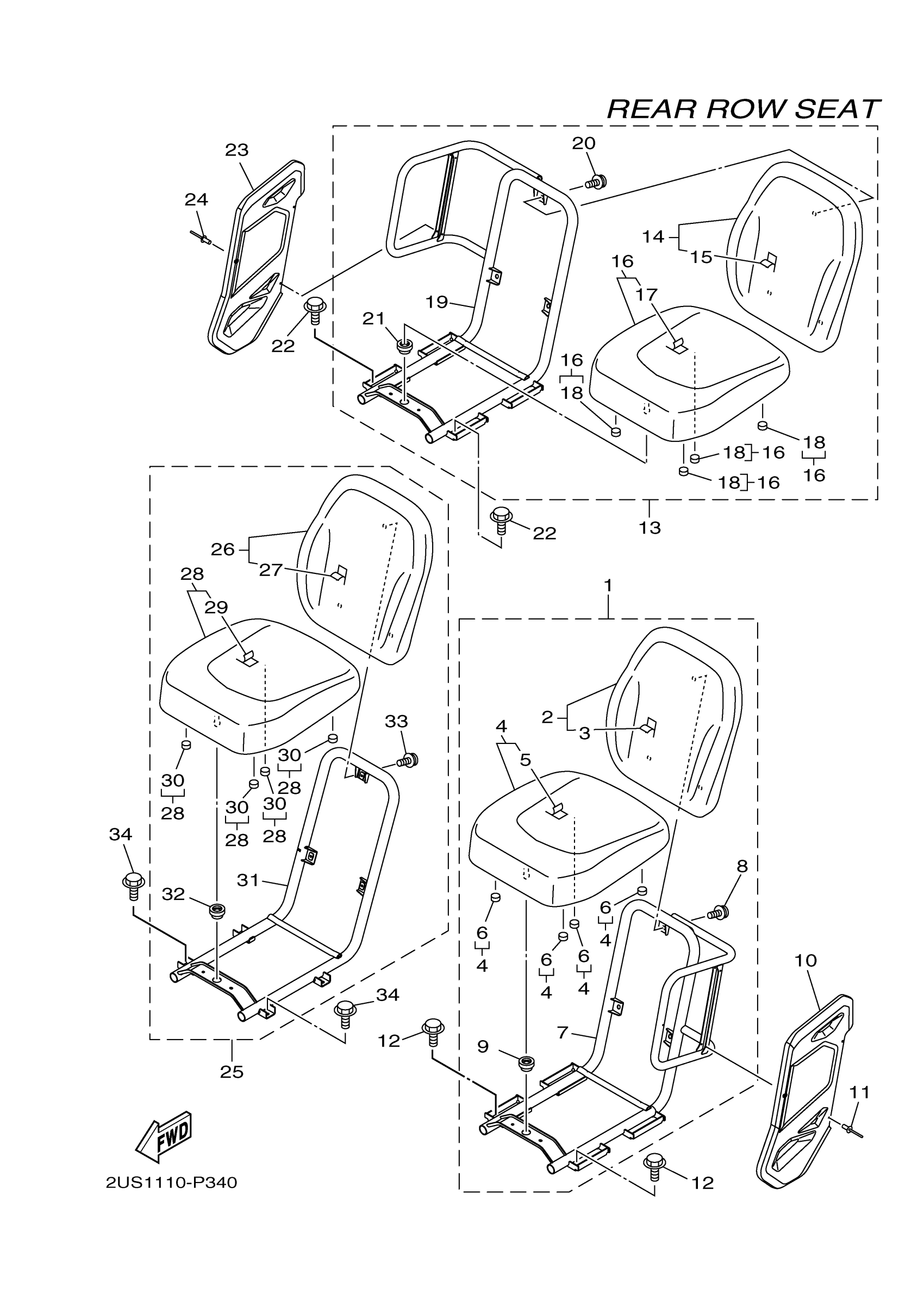

Yamaha YXC70VPSHL (VIKING VI EPS SPECIAL EDITION) B85F 2017 SEAT 3 Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-20-00

$304.09

2

. SEAT BACK ASSY

1XD-F4790-20-00

$182.06

3

.. COVER, SINGLE SEAT

1XD-F4711-20-00

$80.03

4

. SEAT ASSY

1XD-F4700-20-00

$198.18

5

. COVER, SEAT

1XD-F4731-20-00

$89.22

6

DAMPER, SEAT

1XD-F4723-00-00

$1.45

7

FRAME, SEAT 1

1XD-F473C-01-00

$290.15

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

9

GROMMET

1XD-F4742-00-00

$3.04

10

COVER,2

1XD-F475X-01-00

$30.57

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

12

BOLT, FLANGE

95817-08012-00

$3.71

13

SEAT 2

2PG-F7499-20-00

Unavailable

14

. SEAT BACK ASSY

1XD-F4790-20-00

$182.06

15

.. COVER, SINGLE SEAT

1XD-F4711-20-00

$80.03

16

. SEAT ASSY

1XD-F4700-20-00

$198.18

17

. COVER, SEAT

1XD-F4731-20-00

$89.22

18

DAMPER, SEAT

1XD-F4723-00-00

$1.45

19

FRAME, SEAT 2

1XD-F473D-01-00

$249.85

20

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

21

GROMMET

1XD-F4742-00-00

$3.04

22

BOLT, FLANGE

95817-08012-00

$3.71

23

COVER,2

1XD-F475X-01-00

$30.57

24

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

25

SEAT 3

2PG-F749A-20-00

$256.04

26

. SEAT BACK ASSY

1XD-F4790-20-00

$182.06

27

.. COVER, SINGLE SEAT

1XD-F4711-20-00

$80.03

28

. SEAT ASSY

1XD-F4700-20-00

$198.18

29

. COVER, SEAT

1XD-F4731-20-00

$89.22

30

DAMPER, SEAT

1XD-F4723-00-00

$1.45

31

DAMPER

1XD-F473Y-01-00

Unavailable

32

GROMMET

1XD-F4742-00-00

$3.04

33

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

34

BOLT, FLANGE

95817-08012-00

$3.71
