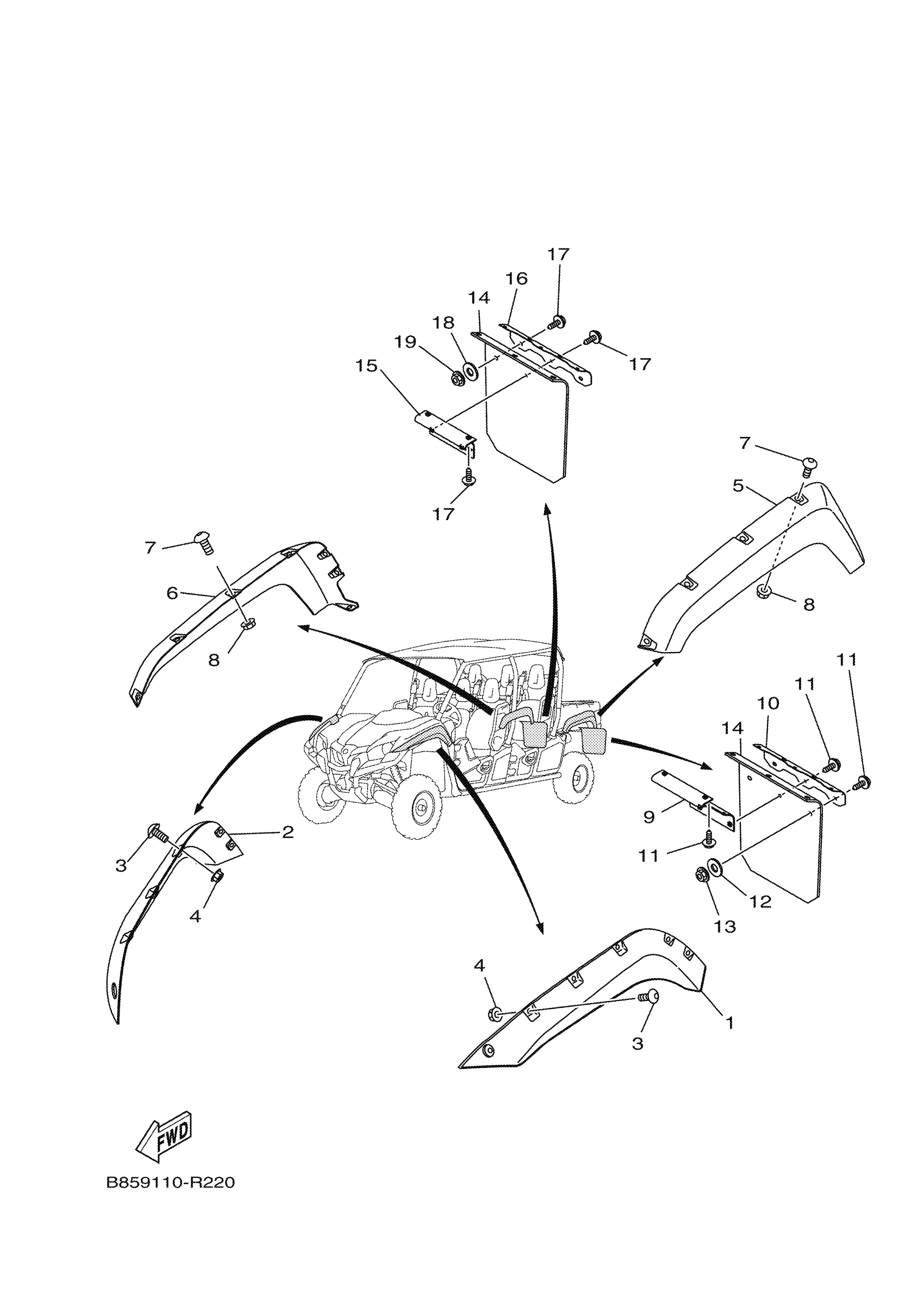

Yamaha YXC70VPSHL (VIKING VI EPS SPECIAL EDITION) B85F 2017 FENDER Diagram

#

Description
Price

1

OVER,FENDER

1XP-F1551-00-00

$20.99

2

FENDER,OVER 2

1XP-F1555-00-00

$22.99

3

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

4

NUT, U FLANGE

95604-06200-00

$8.49

5

FENDER, OVER 3

1XP-F1559-00-00

$22.99

6

FENDER, OVER 4

1XP-F1560-00-00

$22.99

7

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

8

NUT, U FLANGE

95604-06200-00

$8.49

9

PLATE,FLAP FITTING 1

1XP-F1623-00-00

$29.99

10

BRACKET 1

1XP-F8426-00-00

$12.49

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

WASHER, PLATE

90201-06081-00

Unavailable

13

NUT, U FLANGE

95604-06200-00

$8.49

14

FLAP

1XP-F1691-00-00

$36.99

15

PLATE,FLAP FTNG 2

1XP-F1624-00-00

$29.99

16

BRACKET 1

1XP-F8426-00-00

$12.49

17

BOLT, WITH WASHER

90119-06226-00

$8.49

18

WASHER, PLATE

90201-06081-00

Unavailable

19

NUT, U FLANGE

95604-06200-00

$8.49
