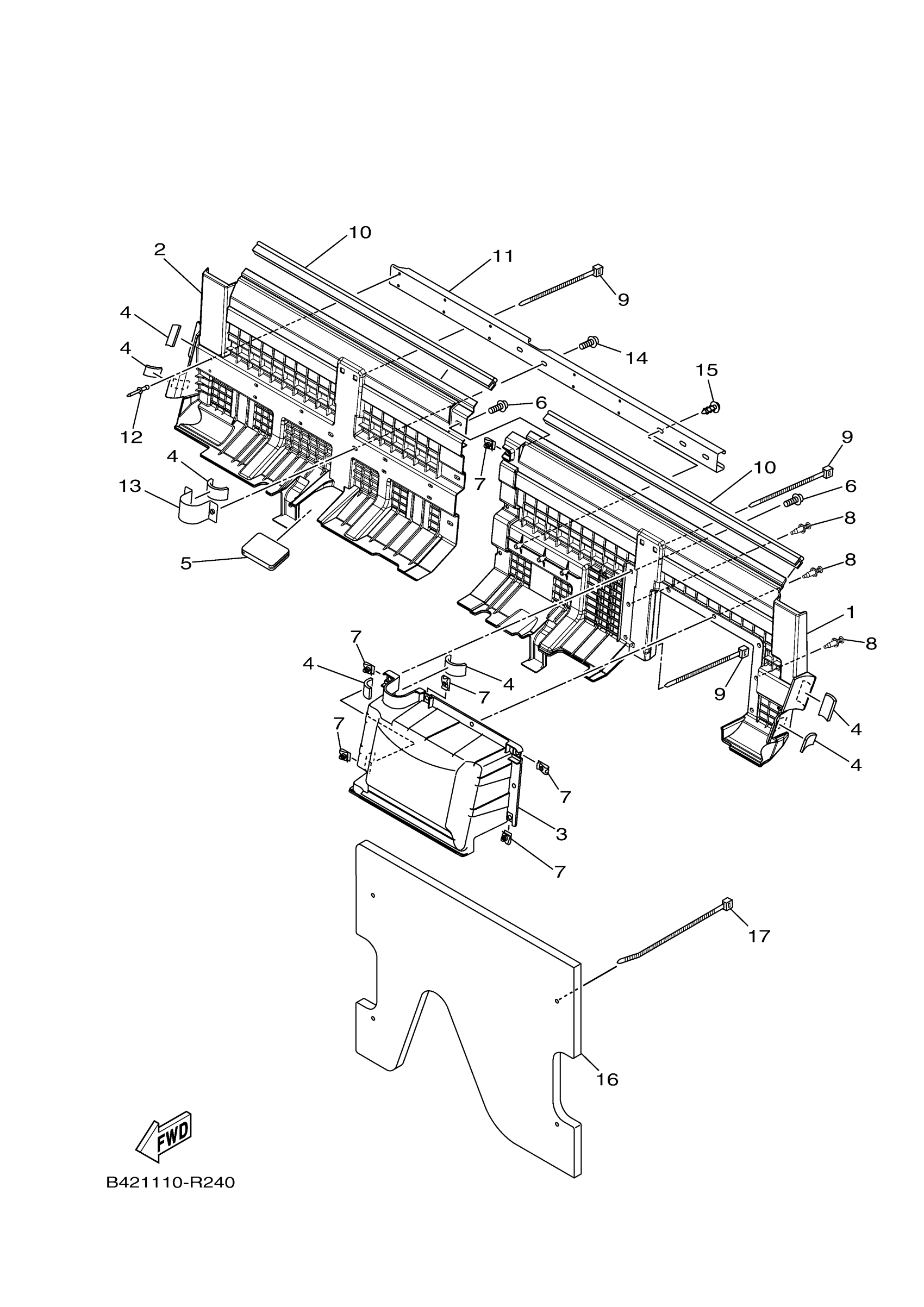

Yamaha YXC70VPSGB (VI EPS SPECIAL EDITION) B857 2016 SIDE COVER 4 Diagram

#

Description
Price

1

PLATE 1

B42-F191B-00-00

$43.99

2

PLATE 2

B42-F191C-00-00

Unavailable

3

COVER 1

B42-F198F-00-00

Unavailable

4

DAMPER

5UG-K7588-01-00

$7.49

5

GROMMET

B42-F1719-00-00

Unavailable

6

BOLT, WITH WASHER

90119-06226-00

$8.49

7

NUT, SPRING

90183-060A6-00

$5.49

8

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

9

CLAMP

90464-48800-00

Unavailable

10

SEAL 1

B42-F1732-00-00

Unavailable

11

REINF.

B42-F175G-00-00

$17.99

12

RIVET, BLIND

90267-409U3-00

Unavailable

13

BRACKET 1

B42-F172K-00-00

$7.49

14

BOLT, WITH WASHER

90119-06226-00

$8.49

15

SCREW, TAPPING

90167-06800-00

$1.71

16

INSULATOR, SIDE COVER

B42-2174A-01-00

Unavailable

17

CLAMP

90464-76800-00

Unavailable
