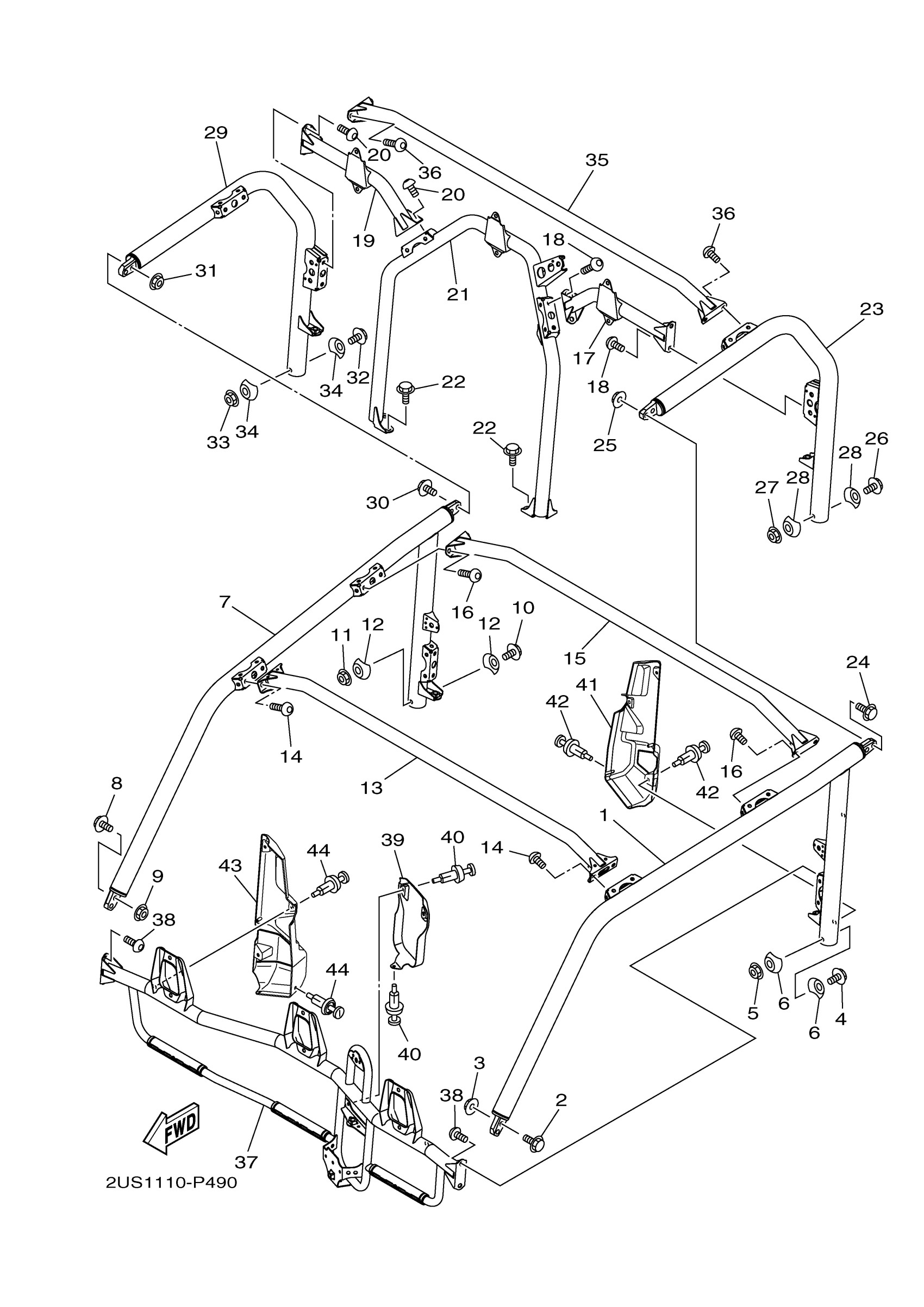

Yamaha YXC70VPSGB (VI EPS SPECIAL EDITION) B857 2016 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

2PG-K831A-01-00

$184.99

2

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

3

NUT, SELF-LOCKING

90185-10011-00

$5.60

4

BOLT, BUTTON HEAD

92012-10070-00

$3.76

5

NUT, SELF-LOCKING

90185-10011-00

$5.60

6

WASHER 2

1XD-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

2PG-K831E-01-00

$281.99

8

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

9

NUT, SELF-LOCKING

90185-10011-00

$5.60

10

BOLT, BUTTON HEAD

92012-10070-00

$3.76

11

NUT, SELF-LOCKING

90185-10011-00

$5.60

12

WASHER 2

1XD-K7526-00-00

$5.49

13

MEMBER, ROOF FRAME

2PG-K8392-00-00

$65.99

14

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

15

MEMBER, ROOF FRAME

2PG-K8393-00-00

$83.99

16

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

17

SUNROOF PIPE ASSY

2PG-K830E-00-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

19

SUNROOF PIPE ASSY

2PG-K830F-00-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

21

ROOF SUPPORT ASSY

2PG-K830A-00-00

Unavailable

22

BOLT, FLANGE

95812-10016-00

Unavailable

23

RRAME, SUNROOF 1

2PG-K833M-00-00

Unavailable

24

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

25

NUT, SELF-LOCKING

90185-10011-00

$5.60

26

BOLT, BUTTON HEAD

92012-10070-00

$3.76

27

NUT, SELF-LOCKING

90185-10011-00

$5.60

28

WASHER 2

1XD-K7526-00-00

$5.49

29

FRAME, SUNROOF 2

2PG-K833R-00-00

Unavailable

30

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

31

NUT, SELF-LOCKING

90185-10011-00

$5.60

32

BOLT, BUTTON HEAD

92012-10070-00

$3.76

33

NUT, SELF-LOCKING

90185-10011-00

$5.60

34

WASHER 2

1XD-K7526-00-00

$5.49

35

MEMBER, ROOF FRAME 3

2PG-K8394-00-00

Unavailable

36

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

37

ROOF SUPPORT ASSY 3

2PG-K830C-00-00

Unavailable

38

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

39

COVER, 4

2PG-K8284-02-00

Unavailable

40

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

41

COVER,SD PILLAR LH

2PG-K813F-02-00

Unavailable

42

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

43

COVER,SD PILLAR RH

2PG-K813G-02-00

Unavailable

44

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable
