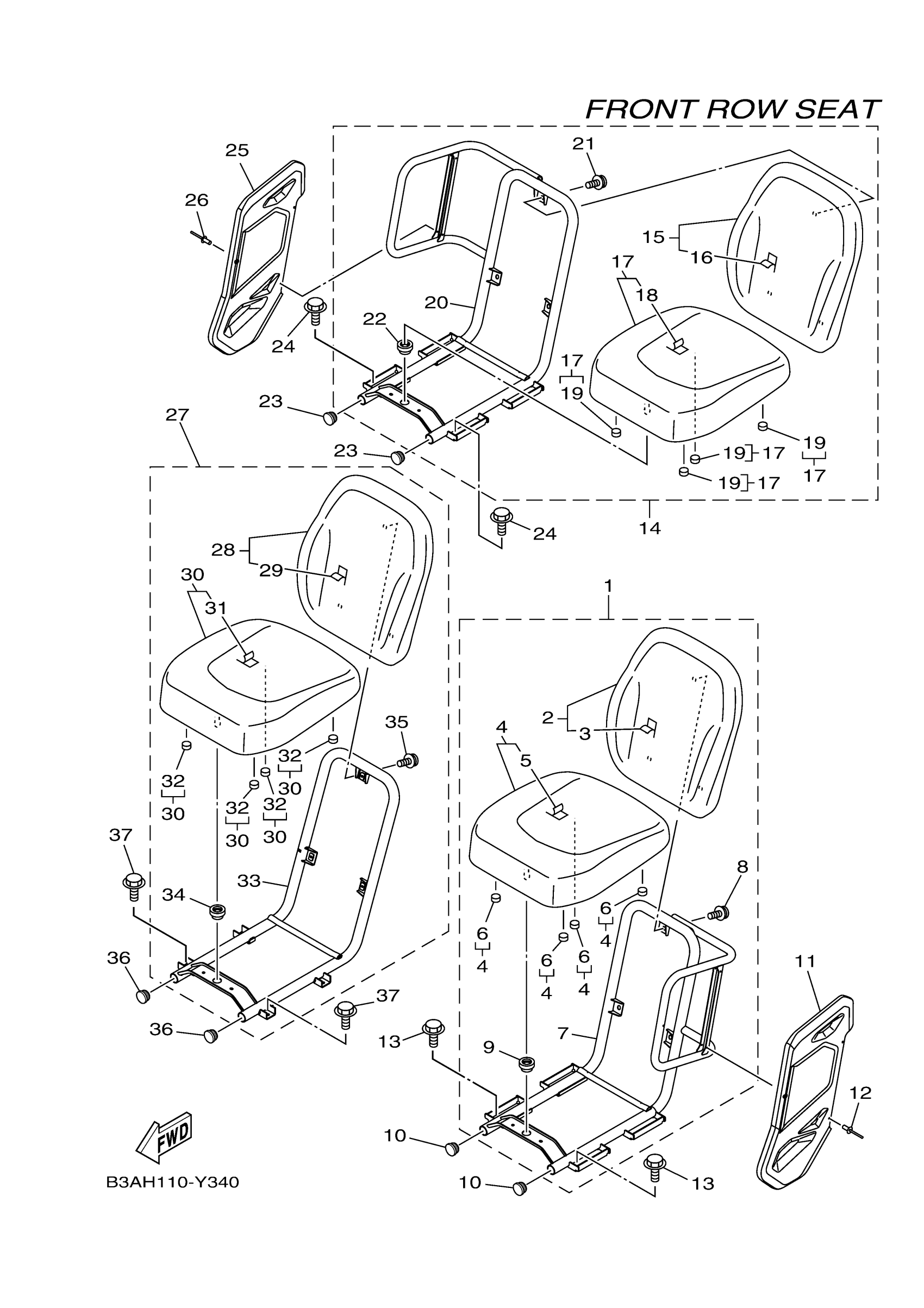

Yamaha YXC70VPRSW (VIKING VI EPS RANCH) BHEH 2025 SEAT Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-11-00

Unavailable

2

SEAT BACK ASSY

1XD-F4790-10-00

$472.71

3

COVER, SINGLE SEAT

1XD-F4711-10-00

Unavailable

4

SEAT ASSY

1XD-F4700-10-00

$506.86

5

COVER, SEAT

1XD-F4731-10-00

$157.47

6

DAMPER, SEAT

1XD-F4723-00-00

$1.47

7

FRAME, SEAT 1

1XD-F473C-01-00

$294.55

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

9

GROMMET

1XD-F4742-00-00

$2.96

10

PLUG

2HC-F2417-00-00

$1.97

11

COVER,2

1XD-F475X-01-00

$31.03

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

13

BOLT, FLANGE

95817-08012-00

$3.71

14

SEAT 2

2PG-F7499-11-00

Unavailable

15

SEAT BACK ASSY

1XD-F4790-10-00

$472.71

16

COVER, SINGLE SEAT

1XD-F4711-10-00

Unavailable

17

SEAT ASSY

1XD-F4700-10-00

$506.86

18

COVER, SEAT

1XD-F4731-10-00

$157.47

19

DAMPER, SEAT

1XD-F4723-00-00

$1.47

20

FRAME, SEAT 2

1XD-F473D-01-00

$253.64

21

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

22

GROMMET

1XD-F4742-00-00

$2.96

23

PLUG

2HC-F2417-00-00

$1.97

24

BOLT, FLANGE

95817-08012-00

$3.71

25

COVER,2

1XD-F475X-01-00

$31.03

26

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

27

SEAT 3

2PG-F749A-11-00

$383.48

28

SEAT BACK ASSY

1XD-F4790-10-00

$472.71

29

COVER, SINGLE SEAT

1XD-F4711-10-00

Unavailable

30

SEAT ASSY

1XD-F4700-10-00

$506.86

31

COVER, SEAT

1XD-F4731-10-00

$157.47

32

DAMPER, SEAT

1XD-F4723-00-00

$1.47

33

DAMPER

1XD-F473Y-01-00

Unavailable

34

GROMMET

1XD-F4742-00-00

$2.96

35

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

36

PLUG

2HC-F2417-00-00

$1.97

37

BOLT, FLANGE

95817-08012-00

$3.71
