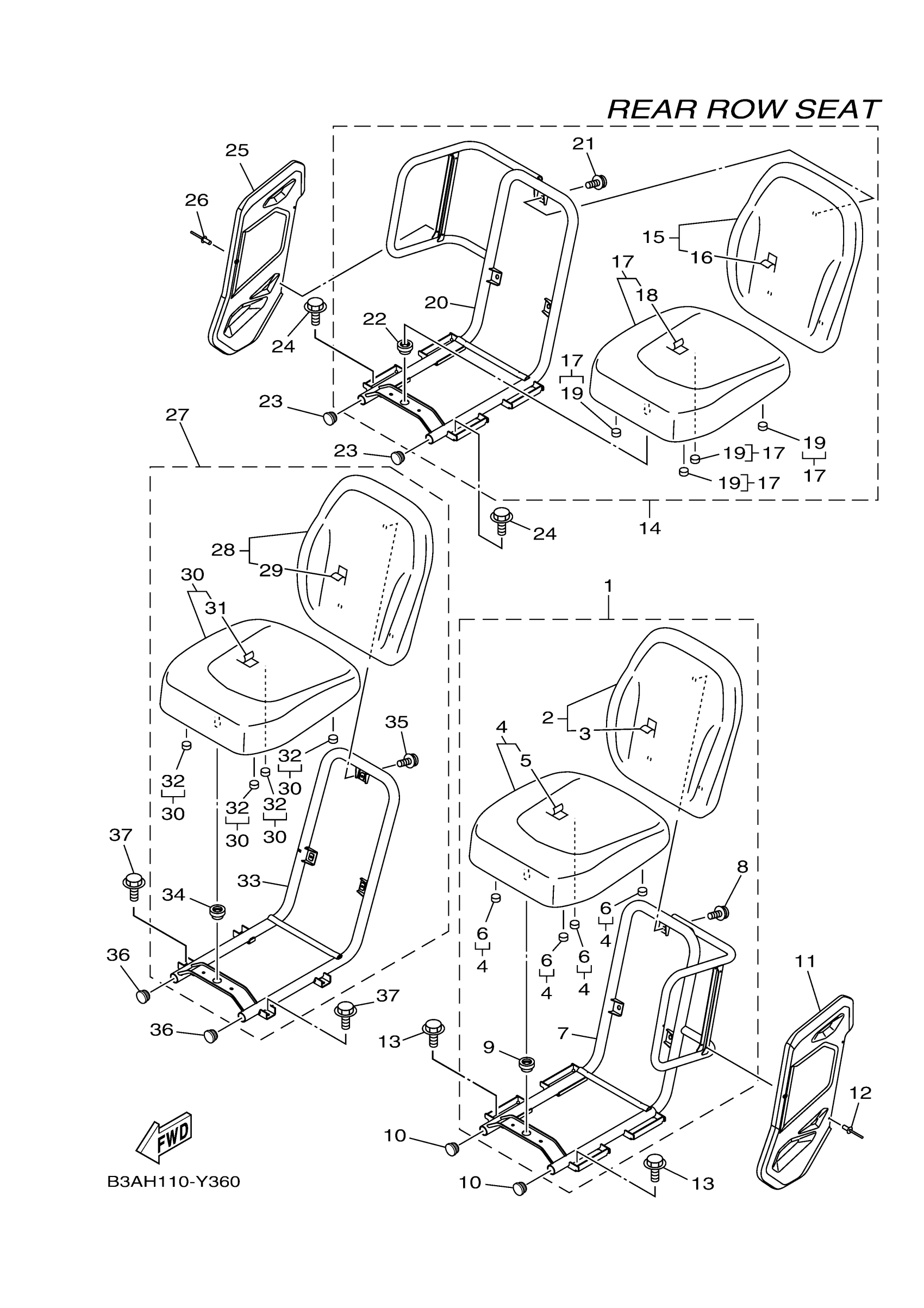

Yamaha YXC70VPRSW (VIKING VI EPS RANCH) BHEH 2025 SEAT 3 Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-11-00

Unavailable

2

SEAT BACK ASSY

1XD-F4790-10-00

$465.66

3

COVER, SINGLE SEAT

1XD-F4711-10-00

Unavailable

4

SEAT ASSY

1XD-F4700-10-00

$499.30

5

COVER, SEAT

1XD-F4731-10-00

$155.12

6

DAMPER, SEAT

1XD-F4723-00-00

$1.45

7

FRAME, SEAT 1

1XD-F473C-01-00

$290.15

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

9

GROMMET

1XD-F4742-00-00

$3.04

10

PLUG

2HC-F2417-00-00

$1.94

11

COVER,2

1XD-F475X-01-00

$30.57

12

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

13

BOLT, FLANGE

95817-08012-00

$3.71

14

SEAT 2

2PG-F7499-11-00

Unavailable

15

SEAT BACK ASSY

1XD-F4790-10-00

$465.66

16

COVER, SINGLE SEAT

1XD-F4711-10-00

Unavailable

17

SEAT ASSY

1XD-F4700-10-00

$499.30

18

COVER, SEAT

1XD-F4731-10-00

$155.12

19

DAMPER, SEAT

1XD-F4723-00-00

$1.45

20

FRAME, SEAT 2

1XD-F473D-01-00

$249.85

21

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

22

GROMMET

1XD-F4742-00-00

$3.04

23

PLUG

2HC-F2417-00-00

$1.94

24

BOLT, FLANGE

95817-08012-00

$3.71

25

COVER,2

1XD-F475X-01-00

$30.57

26

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

27

SEAT 3

2PG-F749A-11-00

$377.76

28

SEAT BACK ASSY

1XD-F4790-10-00

$465.66

29

COVER, SINGLE SEAT

1XD-F4711-10-00

Unavailable

30

SEAT ASSY

1XD-F4700-10-00

$499.30

31

COVER, SEAT

1XD-F4731-10-00

$155.12

32

DAMPER, SEAT

1XD-F4723-00-00

$1.45

33

DAMPER

1XD-F473Y-01-00

Unavailable

34

GROMMET

1XD-F4742-00-00

$3.04

35

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

36

PLUG

2HC-F2417-00-00

$1.94

37

BOLT, FLANGE

95817-08012-00

$3.71
