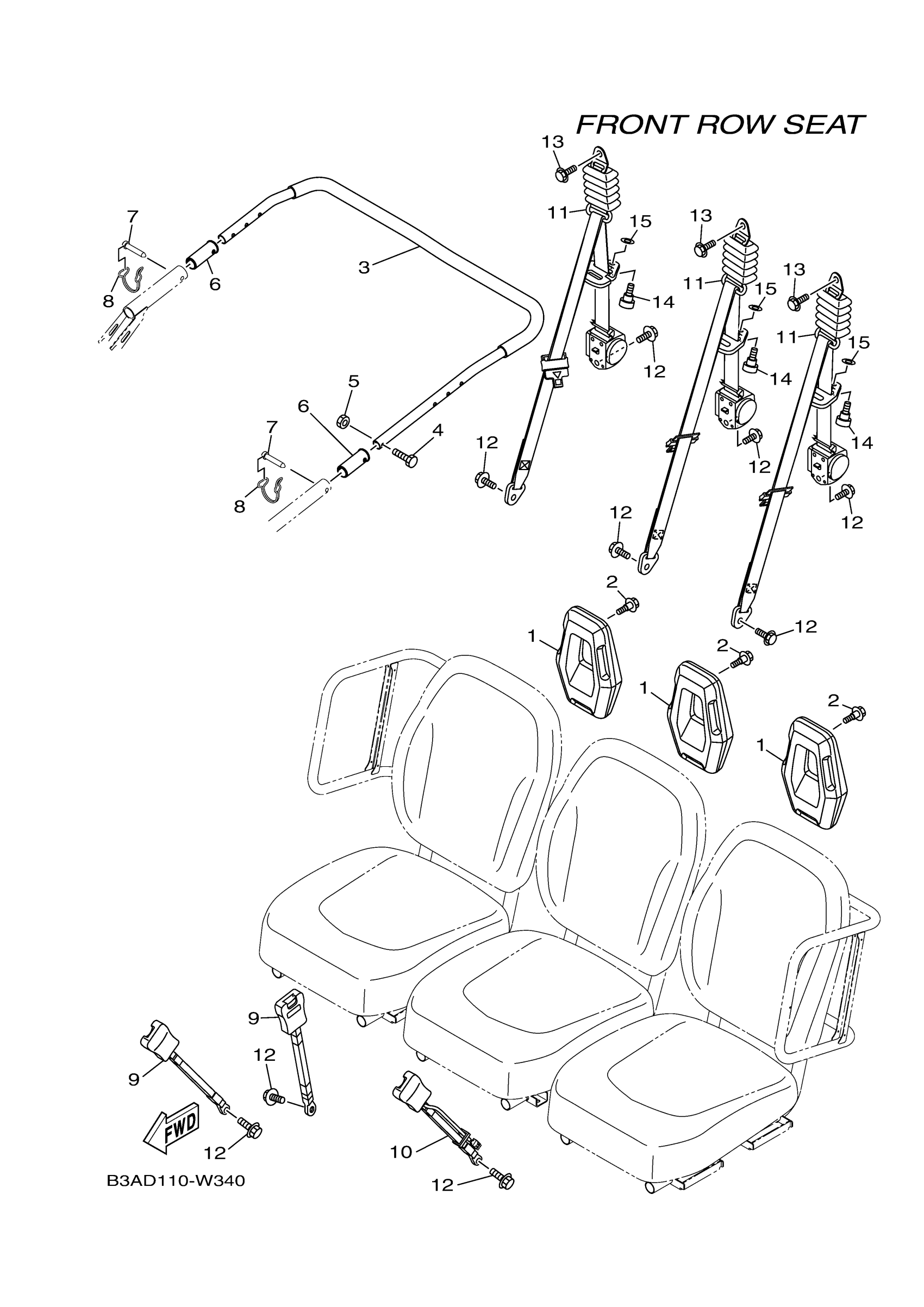

Yamaha YXC70VPRRC (VIKING VI EPS RANCH) BHEE 2024 SEAT 2 Diagram

#

Description
Price

1

HEAD REST

2PG-F472L-00-00

Unavailable

2

BOLT

90109-06079-00

$2.14

3

ASSIST GRIP ASSY.,

1XD-F470J-00-00

$116.64

4

BOLT

90101-06824-00

$1.13

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

BUSH, CAP

1XD-F467K-00-00

$2.21

7

PIN, LOCK

1XD-F5926-00-00

$2.40

8

SNAP, PIN

1XD-F311F-00-00

Unavailable

9

FR. BELT RECEIVER

BHF-F470R-00-00

$34.27

10

FR. BELT RECEIVER

BHF-F470R-10-00

$63.72

11

FR. SEAT BELT ASSY

BHF-F470L-01-00

Unavailable

12

BOLT, FLANGE

95812-12020-00

$6.06

13

BOLT,HEX. SOCKET B

90111-12002-00

$3.19

14

BOLT, SPECIAL

16B-F3394-01-00

$2.42

15

WASHER, PLATE

90201-11801-00

$1.15
