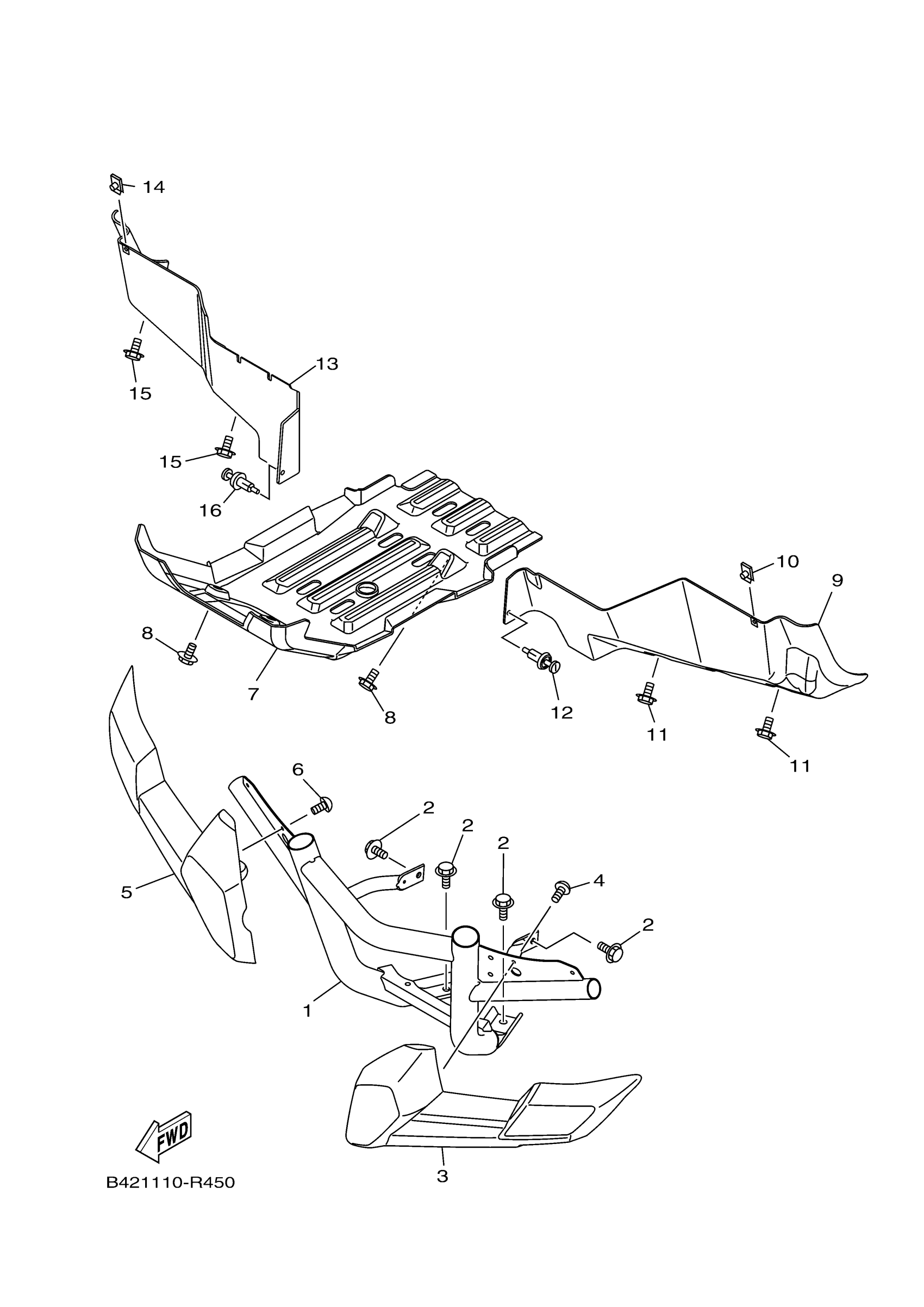

Yamaha YXC70VPRRC (VIKING VI EPS RANCH) BHEE 2024 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

1XD-F845N-10-00

$155.60

2

BOLT, FLANGE

95812-10016-00

$7.70

3

COVER 1

1XD-F842M-02-00

$39.93

4

SCREW, TAPPING

90167-06800-00

$0.73

5

COVER 2

1XD-F842N-02-00

$39.74

6

SCREW, TAPPING

90167-06800-00

$0.73

7

COVER, LOWER

1XD-F8385-02-00

Unavailable

8

BOLT

90109-06202-00

$2.46

9

GUARD 1

1XD-F2361-00-00

$23.30

10

NUT, SPRING

90183-060A6-00

$3.90

11

BOLT

90109-06202-00

$2.46

12

RIVET

90269-06800-00

$1.35

13

GUARD 2

1XD-F2362-00-00

$46.76

14

NUT, SPRING

90183-060A6-00

$3.90

15

BOLT

90109-06202-00

$2.46

16

RIVET

90269-06800-00

$1.35
