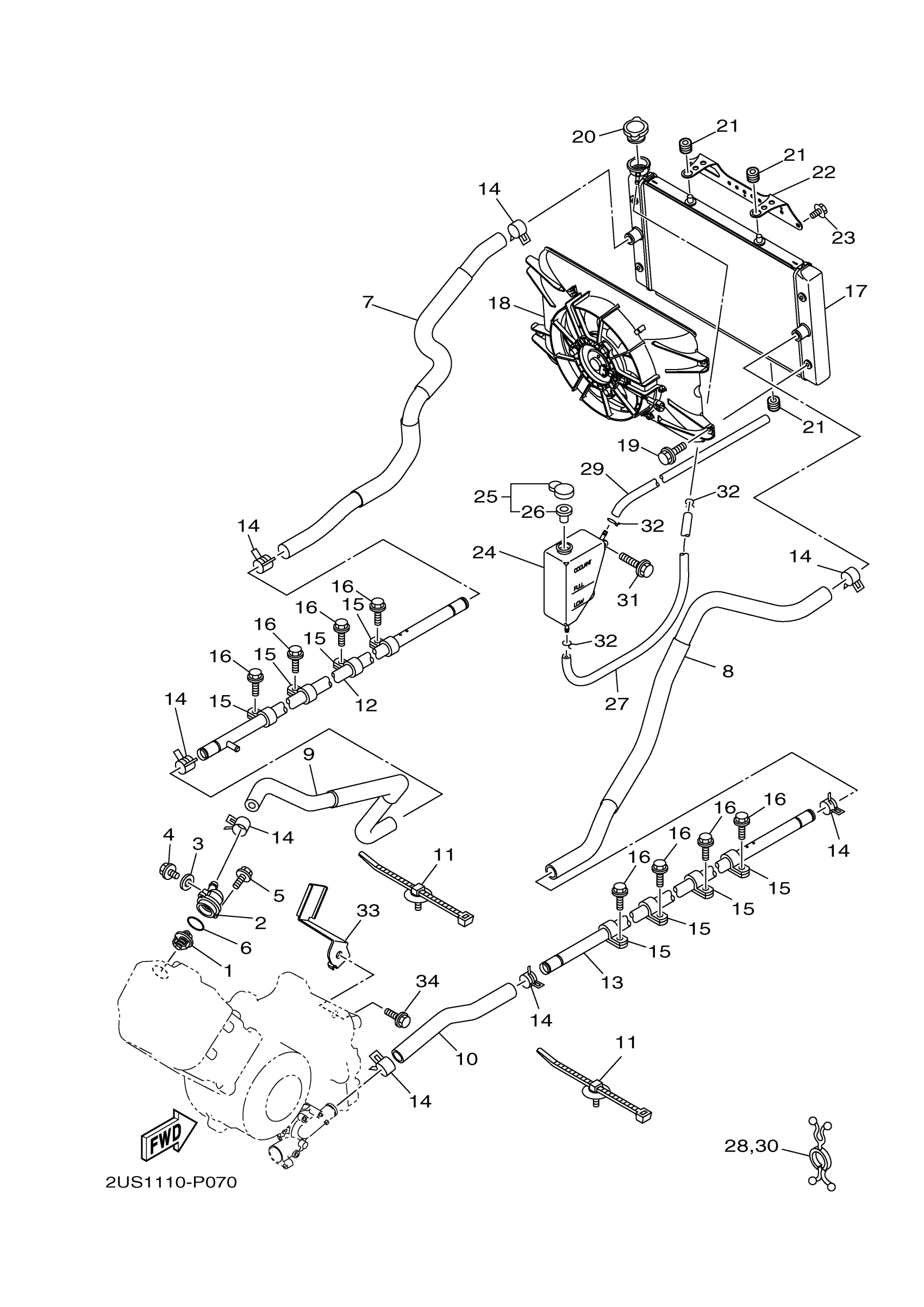

Yamaha YXC70VPRPC (VIKING VI EPS RANCH) BHEB 2023 RADIATOR & HOSE Diagram

#

Description
Price

1

THERMOSTAT

1XD-12411-01-00

$37.99

2

COVER, THERMOSTAT

5B4-12413-00-00

$46.99

3

GASKET 256113960000

90430-06014-00

Unavailable

4

BOLT, FLANGE

95022-06010-00

$5.60

5

BOLT, FLANGE

95022-06020-00

$3.62

6

O-RING (132)

93210-41042-00

$7.49

7

HOSE 1

1XD-E2576-00-00

$36.99

8

HOSE 2

1XD-E2577-00-00

$36.99

9

HOSE 3

1XD-E2578-00-00

$31.99

10

HOSE 4

1XD-E2579-00-00

$15.49

11

CLAMP

1NS-F1338-00-00

$3.33

12

PIPE, WATER

2PG-E2564-00-00

$40.99

13

PIPE 3

2PG-E2483-00-00

Unavailable

14

CLIP

90467-26189-00

$7.49

15

CLAMP

90461-12800-00

$2.28

16

BOLT, FLANGE

90105-06831-00

Unavailable

17

RADIATOR ASY

1XD-E2461-01-00

Unavailable

18

BLOWER ASSY

1XD-E2405-01-00

Unavailable

19

BOLT, BLOWER HOLDI

1XD-E2675-00-00

Unavailable

20

CAP, RADIATOR

1XD-E2462-00-00

Unavailable

21

GROMMET(2GH)

90480-12475-00

Unavailable

22

BRACKET, WATER COO

1XD-E2518-00-00

Unavailable

23

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

24

TANK, RECOVERY

1XD-F1871-00-00

Unavailable

25

CAP

1AA-21815-00-00

Unavailable

26

GASKET

1AA-21874-00-00

Unavailable

27

HOSE (L920)

90445-08846-00

Unavailable

28

CLAMP(3XV)

90464-29179-00

Unavailable

29

HOSE (L760)

90445-08845-00

Unavailable

30

CLAMP(3XV)

90464-29179-00

Unavailable

31

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

32

CLIP 101235600

90467-08003-00

Unavailable

33

STAY

1XD-E2443-00-00

Unavailable

34

BOLT, FLANGE

95814-10040-00

Unavailable
