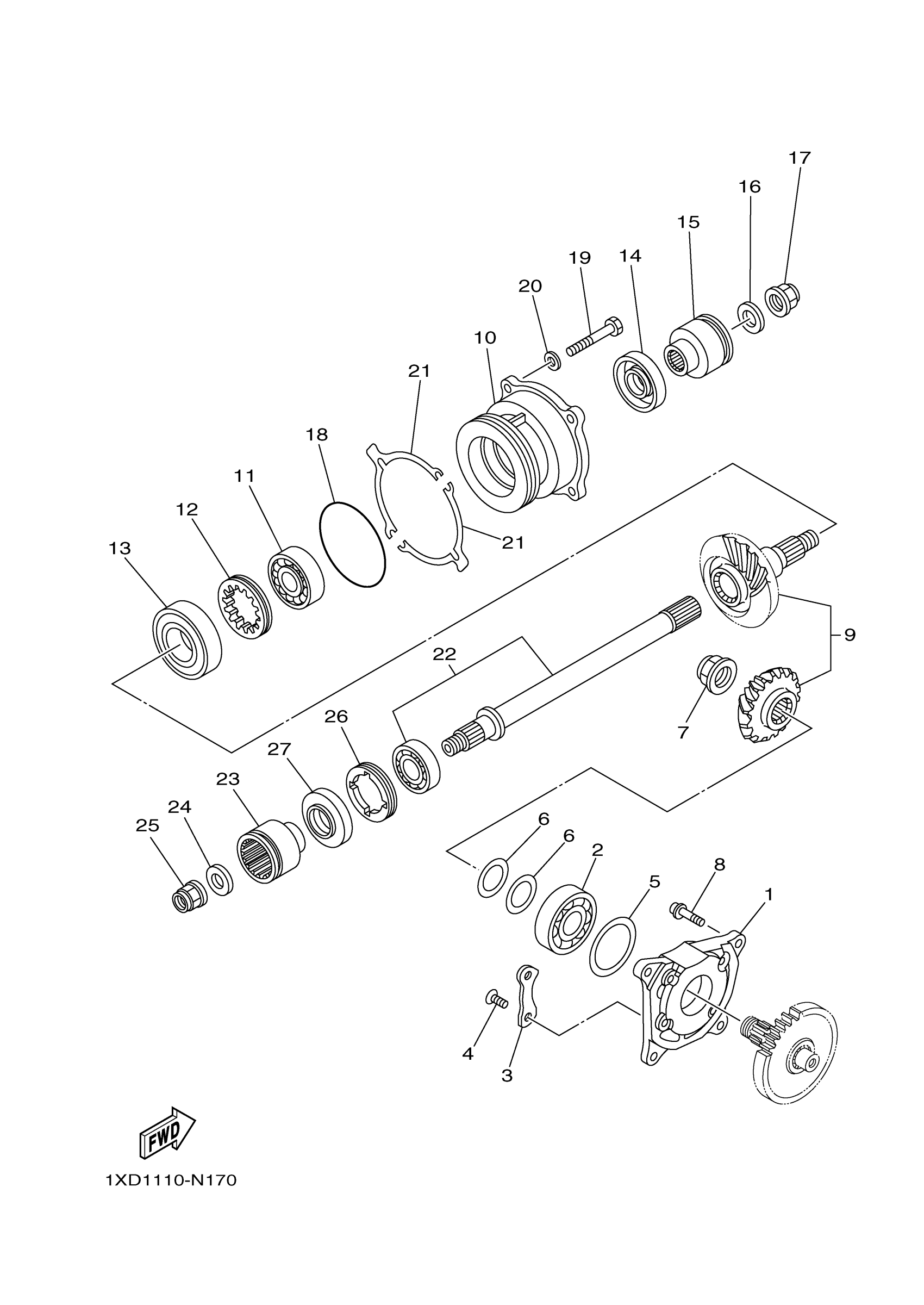

Yamaha YXC70VPRPC (VIKING VI EPS RANCH) BHEB 2023 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

HOUSING, BEARING

5B4-17521-00-00

$91.87

2

BEARING

93306-30584-00

$49.64

3

PLATE, BEARING COVER

11H-15383-02-00

$10.29

4

SCREW

90149-08013-00

$5.81

5

WASHER, PLATE(6K4)

90201-46M28-00

$10.29

6

SHIM, PINION (0.5T)

5KM-17531-50-00

$5.96

6

SHIM, PINION (0.55T)

5KM-17531-60-00

$3.26

6

SHIM, PINION (0.6T)

5KM-17531-70-00

$3.42

6

SHIM, PINION (0.7T)

5KM-17531-80-00

$3.32

6

SHIM, PINION (0.8T)

5KM-17531-90-00

$3.45

6

SHIM, PINION (0.9T)

5KM-17531-A0-00

$3.45

6

SHIM, PINION (1.0T)

5KM-17531-B0-00

$3.29

7

NUT

90179-22013-00

$21.97

8

BOLT, HEXAGON SOCKET HEAD

90110-08092-00

$5.50

9

PINION SET

2PG-17530-01-00

$343.72

10

HOUSING, BEARING

3B4-17551-00-00

Unavailable

11

BEARING(1LX)

93306-37204-00

Unavailable

12

NUT

90179-60001-00

Unavailable

13

BEARING

93306-20654-00

Unavailable

14

OIL SEAL

93102-30010-00

Unavailable

15

COUPLING

3B4-17832-10-00

Unavailable

16

WASHER, PLATE(3JP)

90201-166R5-00

Unavailable

17

Nut

90179-16006-00

Unavailable

18

O-RING (14X)

93210-78544-00

Unavailable

19

BOLT, HEXAGON

97017-08030-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

$2.17

21

SHIM, PINION (0.1T)

3B4-17531-00-00

Unavailable

21

SHIM, PINION (0.15T)

3B4-17531-10-00

Unavailable

21

SHIM, PINION (0.2T)

3B4-17531-20-00

Unavailable

21

SHIM, PINION (0.3T)

3B4-17531-30-00

Unavailable

21

SHIM, PINION (0.4T)

3B4-17531-40-00

Unavailable

21

SHIM, PINION (0.5T)

3B4-17531-50-00

Unavailable

21

SHIM, PINION (0.6T)

3B4-17531-60-00

Unavailable

22

MIDDLE DRIVEN SHAFT ASSY

1XD-1755A-00-00

Unavailable

23

COUPLING

3B4-17832-10-00

Unavailable

24

WASHER, PLATE(3JP)

90201-166R5-00

Unavailable

25

Nut

90179-16006-00

Unavailable

26

NUT(4KB)

90179-55660-00

Unavailable

27

OIL SEAL

93102-30010-00

Unavailable
