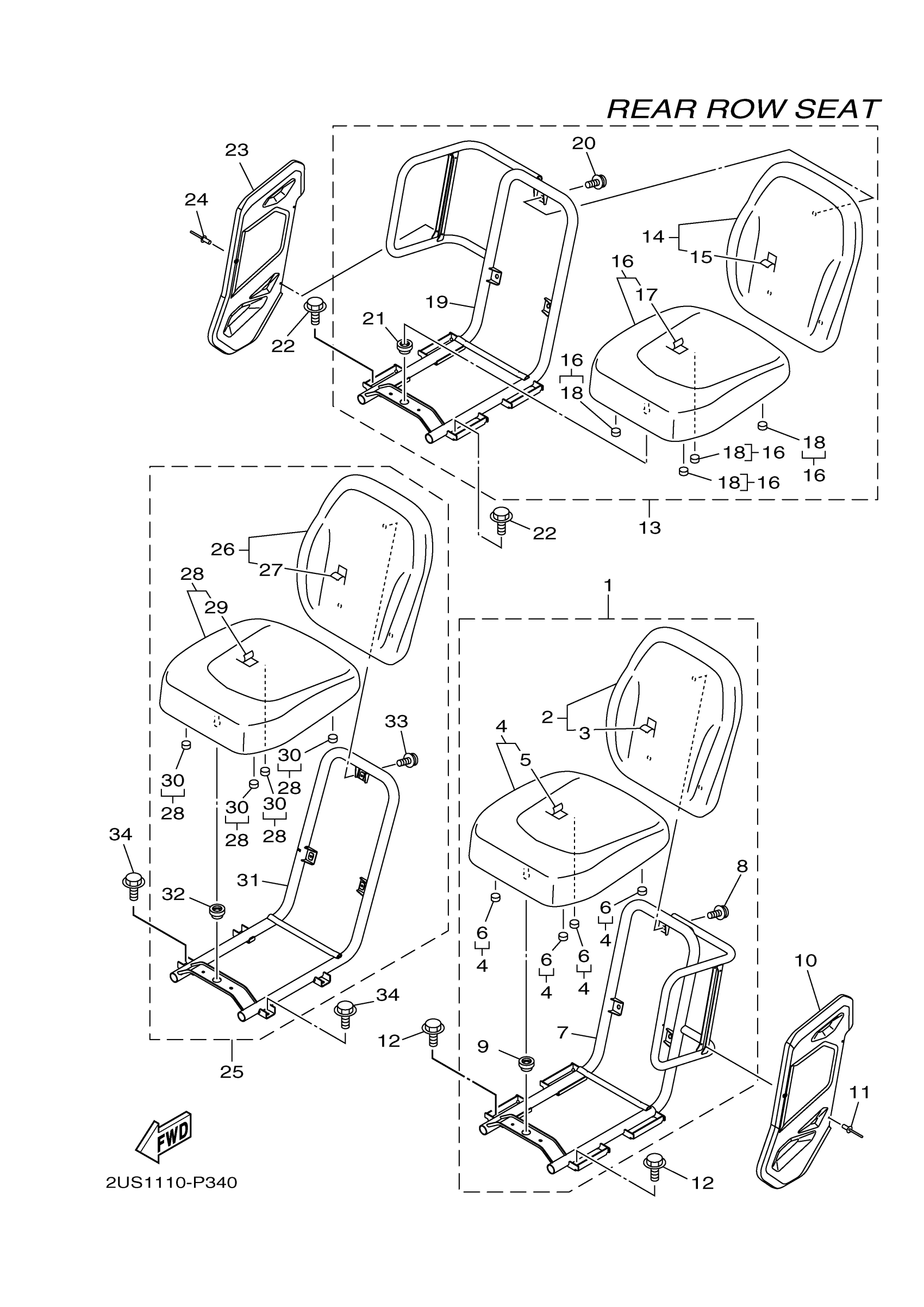

Yamaha YXC70VPRMC (VIKING VI EPS RANCH EDITION) BHE4 2021 SEAT 3 Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-11-00

Unavailable

2

SEAT BACK ASSY

1XD-F4790-10-00

$458.81

3

COVER, SINGLE SEAT

1XD-F4711-10-00

Unavailable

4

SEAT ASSY

1XD-F4700-10-00

$491.96

5

COVER, SEAT

1XD-F4731-10-00

$152.84

6

DAMPER, SEAT

1XD-F4723-00-00

$1.43

7

FRAME, SEAT 1

1XD-F473C-01-00

$285.88

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

9

GROMMET

1XD-F4742-00-00

Unavailable

10

COVER,2

1XD-F475X-01-00

$30.12

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

12

BOLT, FLANGE

95817-08012-00

$3.81

13

SEAT 2

2PG-F7499-11-00

Unavailable

14

SEAT BACK ASSY

1XD-F4790-10-00

$458.81

15

COVER, SINGLE SEAT

1XD-F4711-10-00

Unavailable

16

SEAT ASSY

1XD-F4700-10-00

$491.96

17

COVER, SEAT

1XD-F4731-10-00

$152.84

18

DAMPER, SEAT

1XD-F4723-00-00

$1.43

19

FRAME, SEAT 2

1XD-F473D-01-00

$246.18

20

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

21

GROMMET

1XD-F4742-00-00

Unavailable

22

BOLT, FLANGE

95817-08012-00

$3.81

23

COVER,2

1XD-F475X-01-00

$30.12

24

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

25

SEAT 3

2PG-F749A-10-00

$263.12

26

SEAT BACK ASSY

1XD-F4790-10-00

$458.81

27

COVER, SINGLE SEAT

1XD-F4711-10-00

Unavailable

28

SEAT ASSY

1XD-F4700-10-00

$491.96

29

COVER, SEAT

1XD-F4731-10-00

$152.84

30

DAMPER, SEAT

1XD-F4723-00-00

$1.43

31

DAMPER

1XD-F473Y-01-00

Unavailable

32

GROMMET

1XD-F4742-00-00

Unavailable

33

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

34

BOLT, FLANGE

95817-08012-00

$3.81
