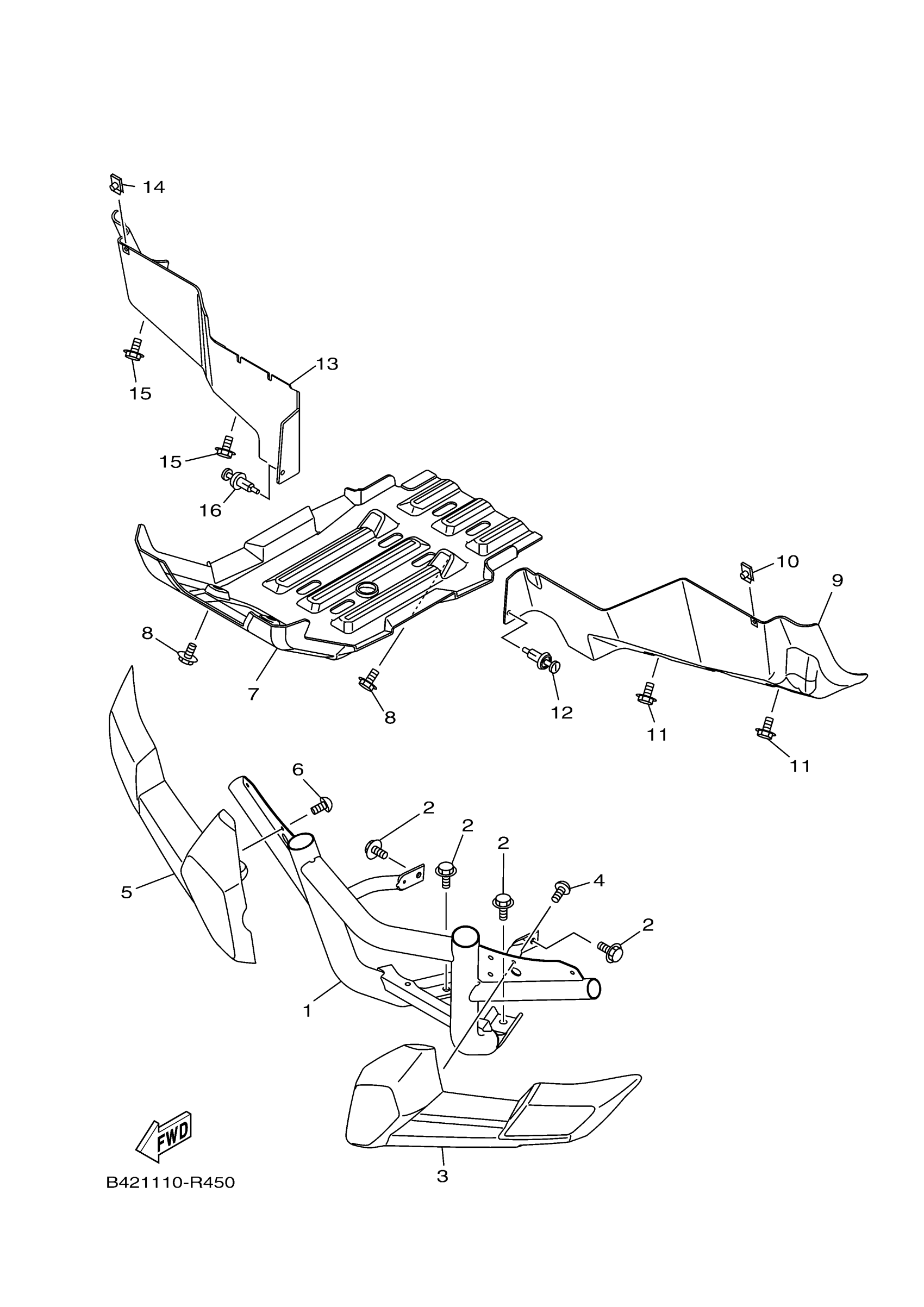

Yamaha YXC70VPRMC (VIKING VI EPS RANCH EDITION) BHE4 2021 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

1XD-F845N-10-00

$193.99

2

BOLT, FLANGE

95812-10016-00

$9.49

3

COVER 1

1XD-F842M-02-00

$53.99

4

SCREW, TAPPING

90167-06800-00

$1.71

5

COVER 2

1XD-F842N-01-00

$45.99

6

SCREW, TAPPING

90167-06800-00

$1.71

7

COVER, LOWER

1XD-F8385-02-00

Unavailable

8

BOLT

90109-06202-00

$7.49

9

GUARD 1

1XD-F2361-00-00

$29.99

10

NUT, SPRING

90183-060A6-00

$5.49

11

BOLT

90109-06202-00

$7.49

12

RIVET

90269-06800-00

$2.18

13

GUARD 2

1XD-F2362-00-00

$59.99

14

NUT, SPRING

90183-060A6-00

$5.49

15

BOLT

90109-06202-00

$7.49

16

RIVET

90269-06800-00

$2.18
