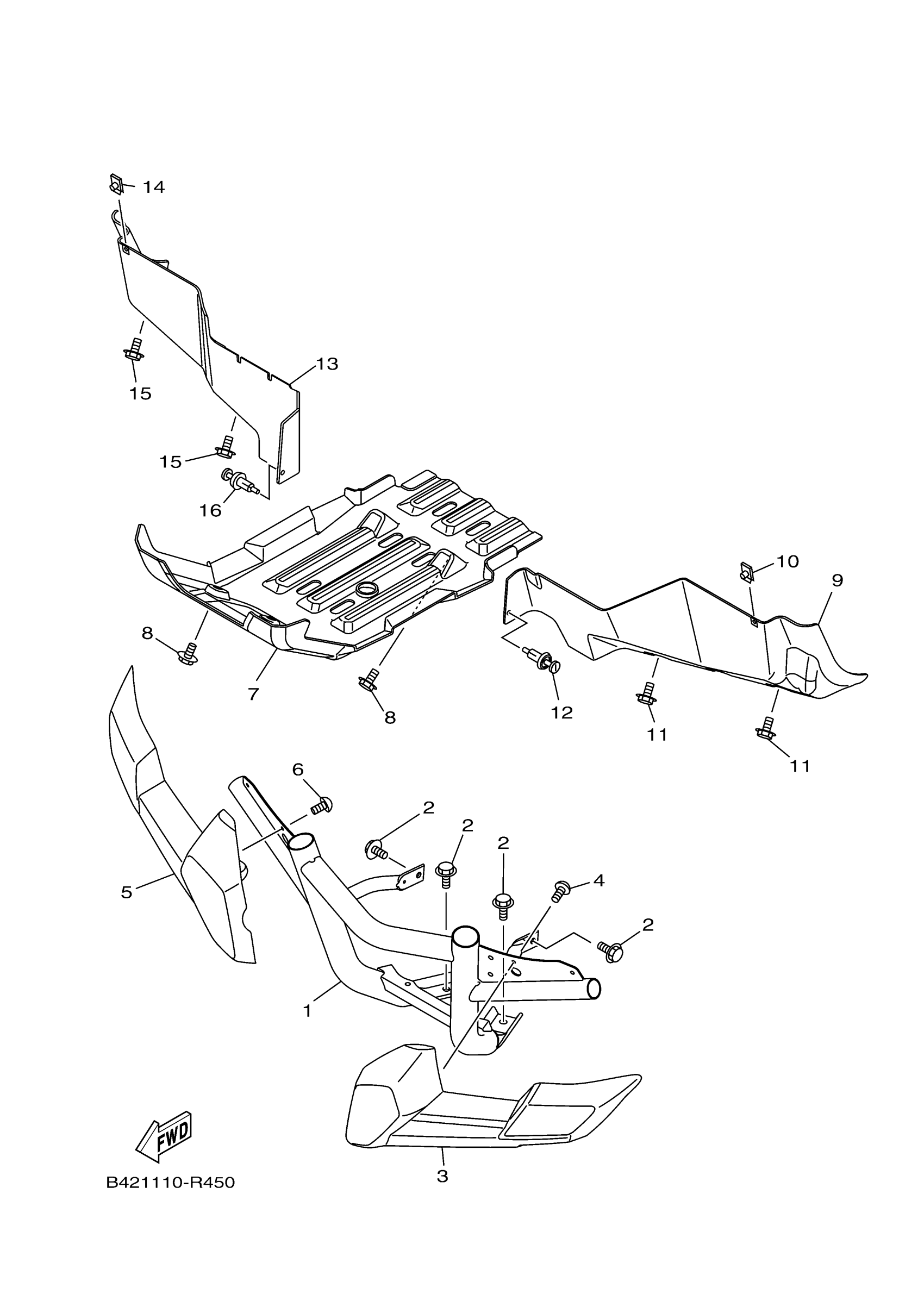

Yamaha YXC70VPRLC (VIKING VI EPS RANCH EDITION) B85W 2020 GUARD Diagram

Description

Price

BAR, CARRY FRONT

1XD-F845N-10-00

$193.99

BOLT, FLANGE

95812-10016-00

$9.49

COVER 1

1XD-F842M-02-00

$53.99

SCREW, TAPPING

90167-06800-00

$1.71

COVER 2

1XD-F842N-01-00

$45.99

SCREW, TAPPING

90167-06800-00

$1.71

COVER, LOWER

1XD-F8385-02-00

Unavailable

BOLT

90109-06202-00

$7.49

GUARD 1

1XD-F2361-00-00

$29.99

NUT, SPRING

90183-060A6-00

$5.49

BOLT

90109-06202-00

$7.49

RIVET

90269-06800-00

$2.18

GUARD 2

1XD-F2362-00-00

$59.99

NUT, SPRING

90183-060A6-00

$5.49

BOLT

90109-06202-00

$7.49

RIVET

90269-06800-00

$2.18
