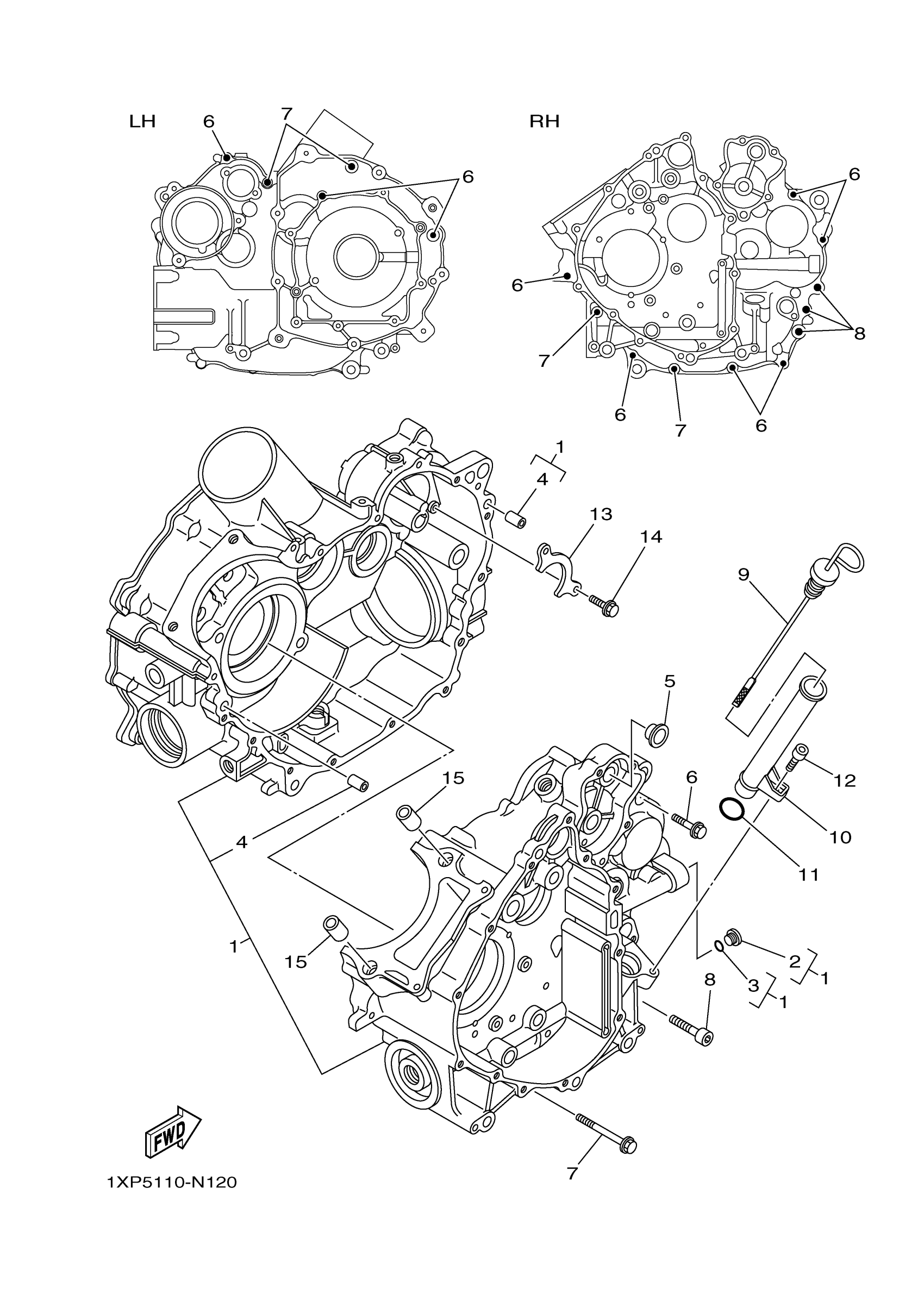

Yamaha YXC70VPRKC (VIKING VI EPS RANCH EDITION) B85S 2019 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3B4-15100-27-00

Unavailable

2

PLUG

36Y-15189-01-00

Unavailable

3

O-RING(1L9)

93210-16325-00

$5.47

4

PIN, DOWEL(2VG)

99530-10116-00

$3.14

5

SPACER, CAM SHAFT

3B4-18581-00-00

$33.23

6

BOLT, FLANGE

95022-06030-00

$1.31

7

BOLT, FLANGE

95022-06060-00

$5.84

8

BOLT,SOCKET

91314-08040-00

$4.89

9

PLUG, OIL LEVEL

5B4-15362-00-00

$31.33

10

PIPE, OIL

5B4-15112-00-00

$49.62

11

O-RING (26H)

93210-21631-00

$5.99

12

BOLT,SOCKET

91317-06012-00

$5.75

13

PLATE, BEARING COVER

3B4-15388-00-00

$3.55

14

BOLT, FLANGE

95022-06020-00

$3.11

15

PIN, DOWEL

99530-14016-00

$2.98
