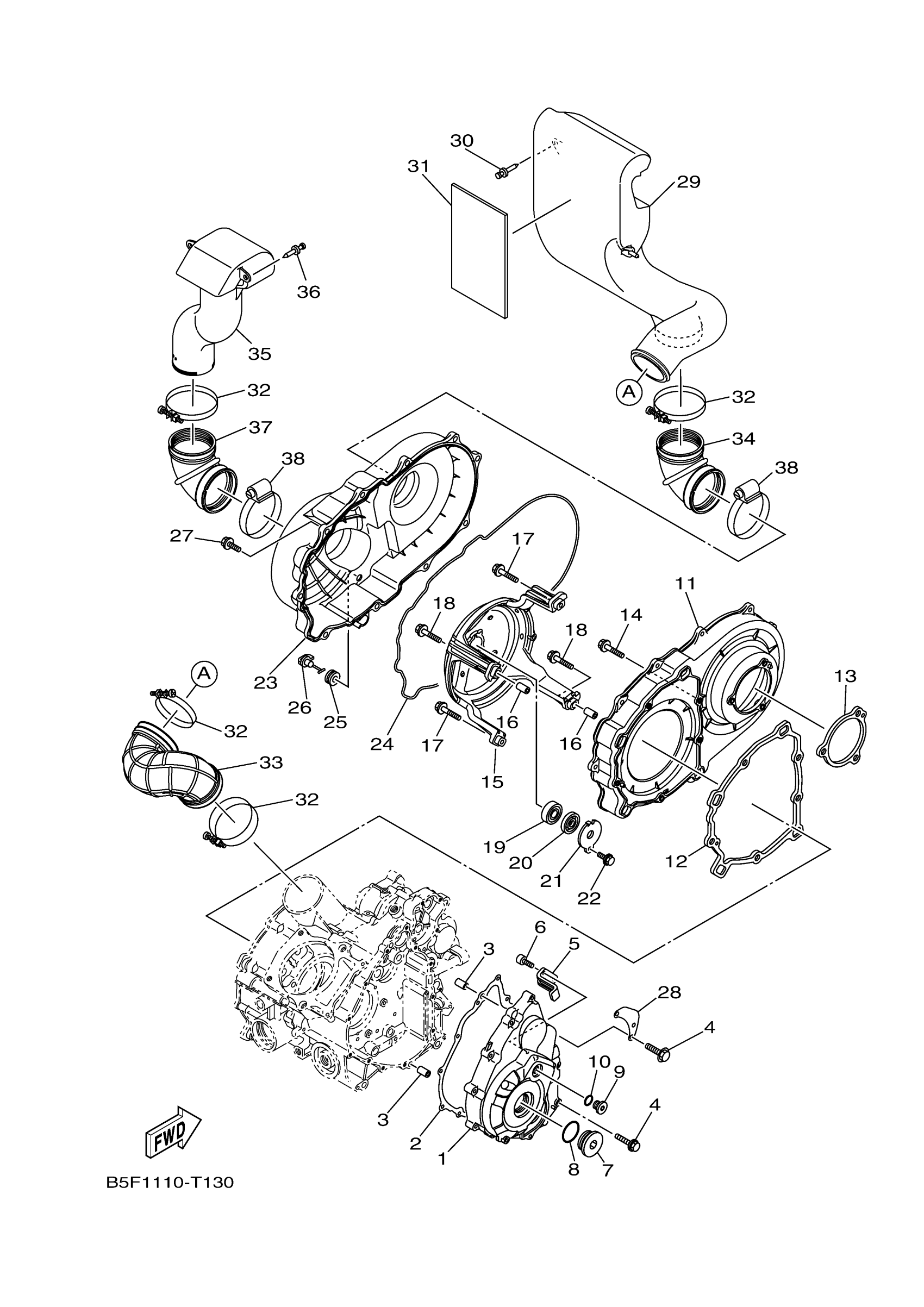

Yamaha YXC70VPRJC (VIKING VI EPS RANCH EDITION) B85L 2018 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

3B4-15411-10-00

$212.99

2

GASKET, CRANKCASE COVER 1

3B4-15451-00-00

$32.99

3

PIN, DOWEL(2VG)

99530-10116-00

$4.25

4

BOLT, FLANGE

95022-06030-00

$3.72

5

PLATE

3B4-15113-00-00

$6.99

6

BOLT

91312-05014-00

$2.97

7

PLUG, STRAIGHT SCREW

90340-36004-00

$18.99

8

O-RING

93210-35804-00

$0.48

9

PLUG, STRAIGHT SCREW

90340-14016-00

$17.99

10

O-RING (2H9)

93210-14369-00

$7.49

11

COVER, CRANKCASE 2

1XD-15421-01-00

$88.99

12

GASKET

3B4-15453-01-00

$16.49

13

SEAL, CRANKCASE

3B4-15315-00-00

$12.99

14

95822-06030

95822-06030-00

$1.38

15

HOUSING, BEARING

1XD-15442-00-00

$96.99

16

PIN, DOWEL(2VG)

99530-10116-00

$4.25

17

95822-06030

95822-06030-00

$1.38

18

BOLT, FLANGE

95817-06040-00

Unavailable

19

BEARING(3WF)

93306-20119-00

Unavailable

20

OIL SEAL

93101-12168-00

Unavailable

21

PLATE, BEARING COVER

4WV-15381-00-00

Unavailable

22

BOLT, FLANGE

95022-06016-00

Unavailable

23

COVER, CRANKCASE 3

1XD-15431-01-00

Unavailable

24

SEAL, CRANKCASE

3B4-15379-00-00

Unavailable

25

GROMMET (462)

90480-13018-00

Unavailable

26

PLUG, DRAIN

5KM-15351-00-00

Unavailable

27

BOLT, FLANGE

95817-06020-00

Unavailable

28

STAY, CRANKCASE COVER 1

1XD-1541A-00-00

Unavailable

29

DUCT, AIR

1XD-E5477-01-00

Unavailable

30

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

31

DAMPER

B42-2174X-00-00

Unavailable

32

CLAMP,HOSE

90460-85135-00

Unavailable

33

SEAL, AIR DUCT

1XD-E5474-00-00

Unavailable

34

SEAL, AIR DUCT

1XD-E5472-00-00

Unavailable

35

DUCT, AIR

1XD-E5473-01-00

Unavailable

36

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

37

SEAL, AIR DUCT

1XD-E5472-00-00

Unavailable

38

HOSE CLAMP ASSY

90450-95802-00

Unavailable
