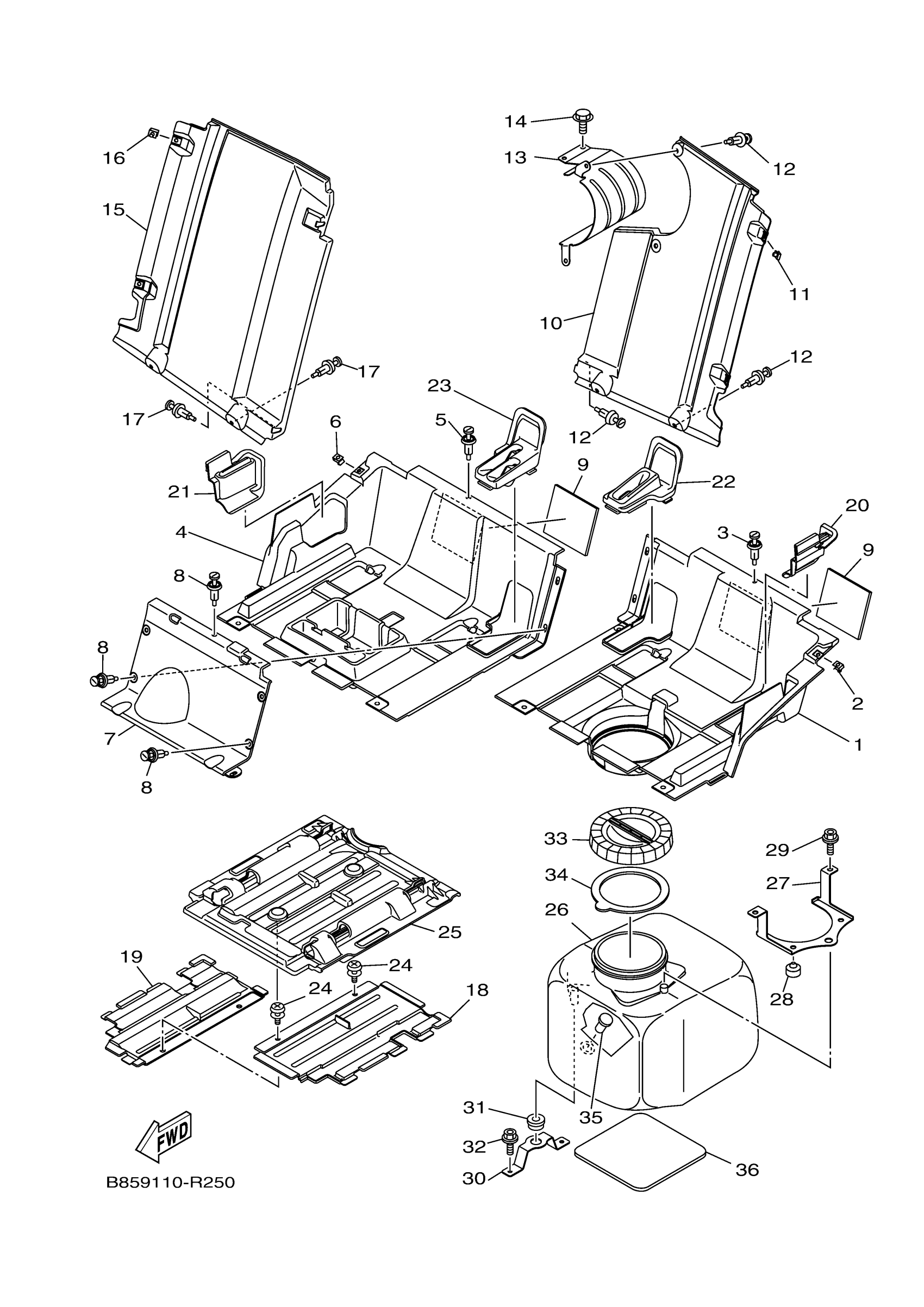

Yamaha YXC70VPRHC (VIKING VI EPS RANCH EDITION) B85G 2017 SIDE COVER 3 Diagram

#

Description
Price

1

PLATE, UNDER 1

1XD-F84A3-00-00

$26.42

2

NUT, SPRING

90183-060A6-00

$3.90

3

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

4

PLATE, UNDER 2

1XD-F84A4-00-00

$41.67

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

NUT, SPRING

90183-060A6-00

$3.90

7

PLATE, UNDER 3

1XD-F84A5-00-00

$13.67

8

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

9

DAMPER

B42-21747-00-00

Unavailable

10

MUD GUARD 1

1XD-F2327-00-00

$27.97

11

NUT, SPRING

90183-060A6-00

$3.90

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

PANEL 1

1XD-F172A-00-00

$8.74

14

BOLT, FLANGE

90105-08867-00

$1.47

15

MUD GUARD 2

1XD-F2328-01-00

$25.41

16

NUT, SPRING

90183-060A6-00

$3.90

17

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

18

PLATE, UNDER 4

B42-F84A6-00-00

$6.58

19

PLATE, UNDER 5

B42-F84A7-00-00

$6.58

20

PLATE, RUBBER 1

B42-F8483-01-00

$7.03

21

PLATE, RUBBER 2

B42-F8484-01-00

$7.85

22

PLATE, RUBBER 3

B42-F8485-00-00

Unavailable

23

PLATE, RUBBER 4

B42-F8499-00-00

$8.74

24

RIVET

5UG-F3483-00-00

Unavailable

25

PLATE

B42-F176E-00-00

Unavailable

26

BOX 1

1XP-F838K-01-00

Unavailable

27

BRKT., CANISTER

1XP-F115R-00-00

Unavailable

28

PAD, SEAT

22W-24741-00-00

Unavailable

29

BOLT, FLANGE

90105-08867-00

$1.47

30

BRKT., FR. STORAGE

1XP-F253E-00-00

$4.14

31

GROMMET (1L9)

90480-22196-00

Unavailable

32

BOLT, FLANGE

90105-06831-00

Unavailable

33

CAP

1XP-F151B-00-00

Unavailable

34

SEAL

1XP-F8307-01-00

Unavailable

35

. PLUG, BLIND

90605-502U1-00

$2.16

36

DAMPER, PLATE

90520-03820-00

Unavailable
