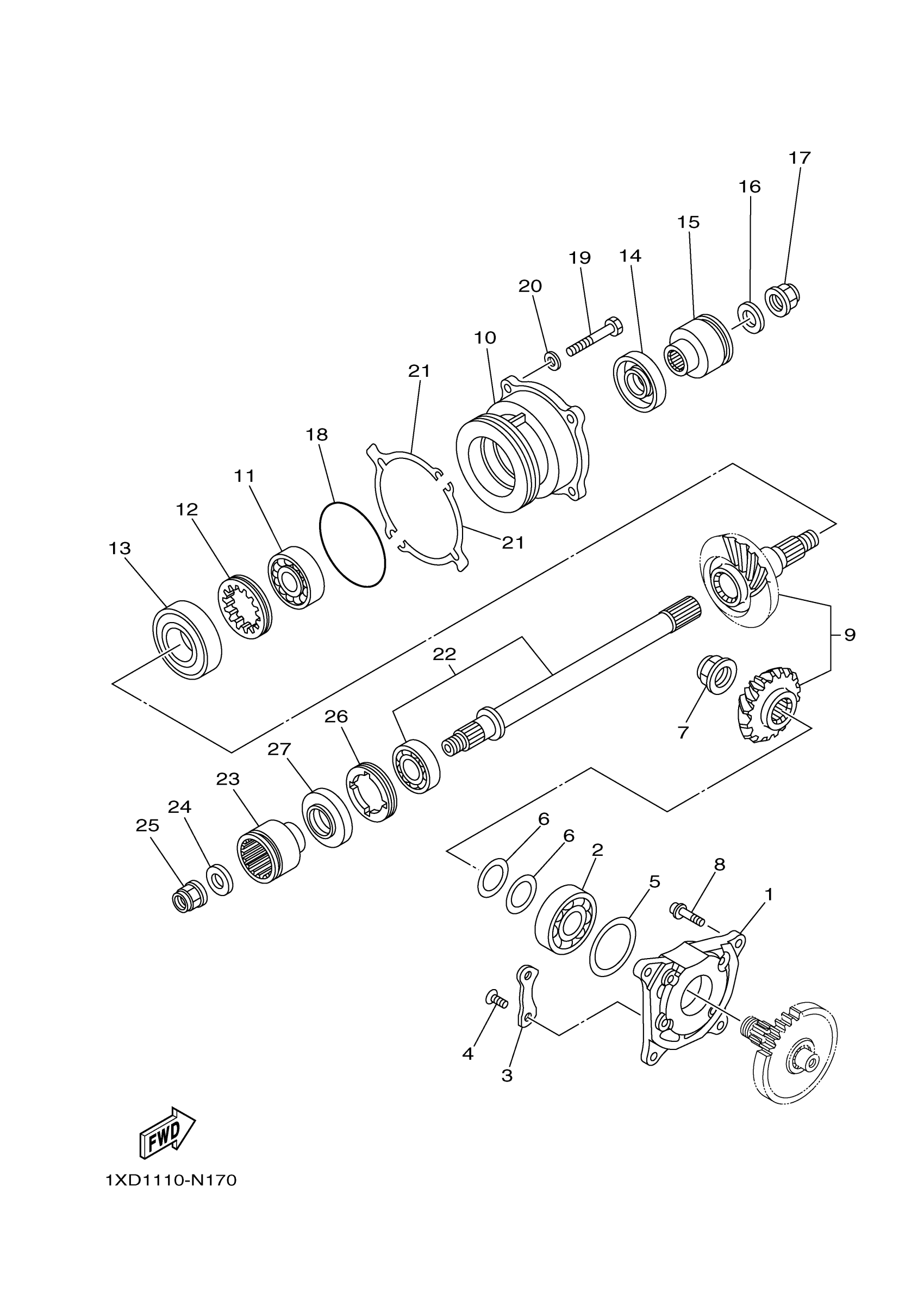

Yamaha YXC70VPRHC (VIKING VI EPS RANCH EDITION) B85G 2017 MIDDLE DRIVE GEAR Diagram

HOUSING, BEARING

5B4-17521-00-00

$113.99

BEARING

93306-30584-00

$61.99

PLATE, BEARING COVER

11H-15383-02-00

$14.49

SCREW

90149-08013-00

$8.49

WASHER, PLATE(6K4)

90201-46M28-00

$14.99

SHIM, PINION (0.5T)

5KM-17531-50-00

$7.99

SHIM, PINION (0.55T)

5KM-17531-60-00

$4.42

SHIM, PINION (0.6T)

5KM-17531-70-00

$5.49

SHIM, PINION (0.7T)

5KM-17531-80-00

$4.52

SHIM, PINION (0.8T)

5KM-17531-90-00

$4.63

SHIM, PINION (0.9T)

5KM-17531-A0-00

$4.63

SHIM, PINION (1.0T)

5KM-17531-B0-00

$4.94

NUT

90179-22013-00

$26.99

BOLT, HEXAGON SOCKET HEAD

90110-08092-00

$5.60

PINION SET

2PG-17530-01-00

$423.99

HOUSING, BEARING

3B4-17551-00-00

Unavailable

BEARING(1LX)

93306-37204-00

Unavailable

NUT

90179-60001-00

Unavailable

BEARING

93306-20654-00

Unavailable

OIL SEAL

93102-30010-00

Unavailable

COUPLING

3B4-17832-10-00

Unavailable

WASHER, PLATE(3JP)

90201-166R5-00

Unavailable

Nut

90179-16006-00

Unavailable

O-RING (14X)

93210-78544-00

Unavailable

BOLT, HEXAGON

97017-08030-00

Unavailable

.. WASHER, PLATE

92990-08600-00

Unavailable

SHIM, PINION (0.1T)

3B4-17531-00-00

Unavailable

SHIM, PINION (0.15T)

3B4-17531-10-00

Unavailable

SHIM, PINION (0.2T)

3B4-17531-20-00

Unavailable

SHIM, PINION (0.3T)

3B4-17531-30-00

Unavailable

SHIM, PINION (0.4T)

3B4-17531-40-00

Unavailable

SHIM, PINION (0.5T)

3B4-17531-50-00

Unavailable

SHIM, PINION (0.6T)

3B4-17531-60-00

Unavailable

MIDDLE DRIVEN SHAFT ASSY

1XD-1755A-00-00

Unavailable

COUPLING

3B4-17832-10-00

Unavailable

WASHER, PLATE(3JP)

90201-166R5-00

Unavailable

Nut

90179-16006-00

Unavailable

NUT(4KB)

90179-55660-00

Unavailable

OIL SEAL

93102-30010-00

Unavailable
