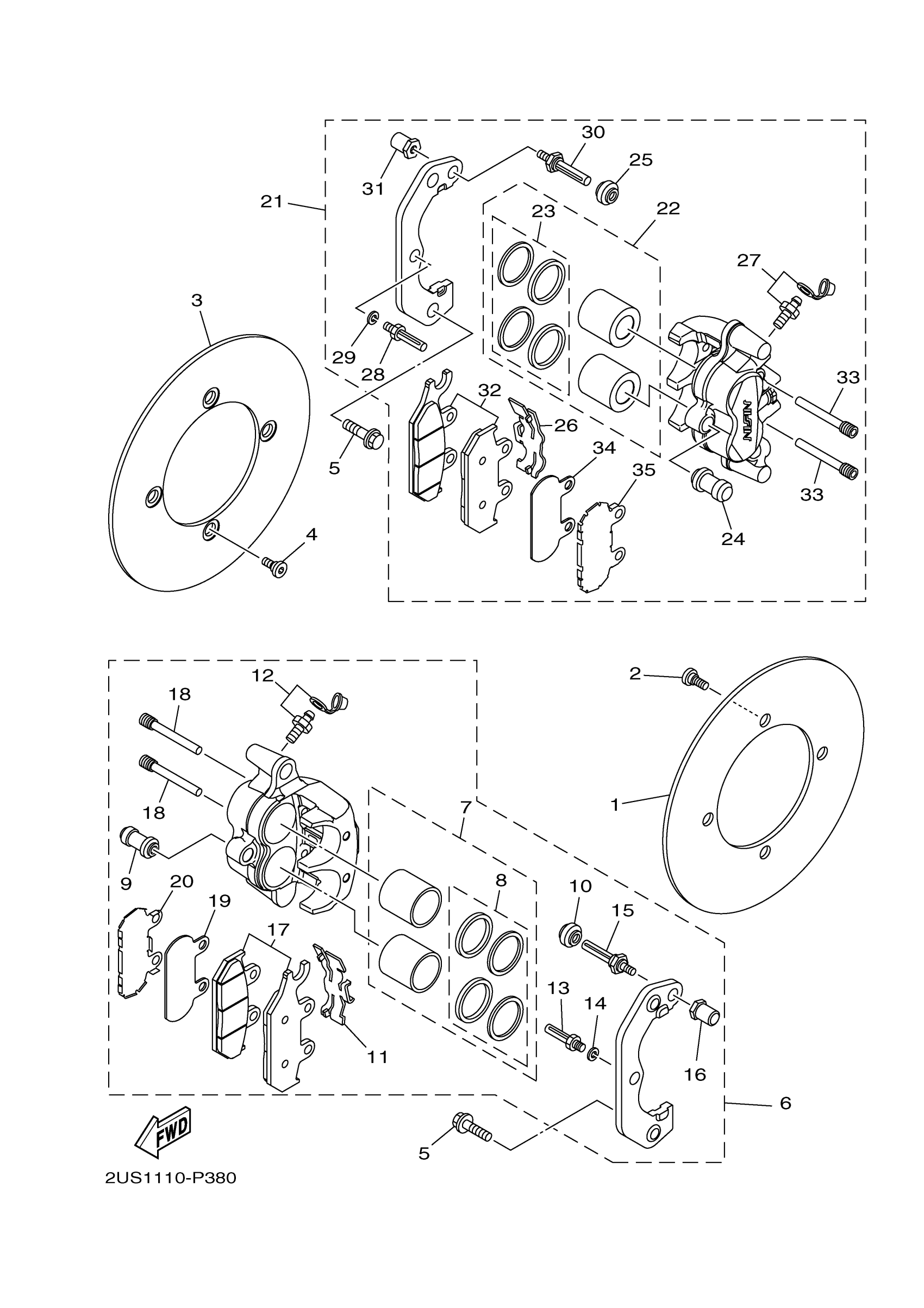

Yamaha YXC70VPRHC (VIKING VI EPS RANCH EDITION) B85G 2017 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

1XD-F582T-00-00

$53.99

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE (LEFT)

1XD-F582T-00-00

$53.99

4

BOLT

90109-08087-00

$8.49

5

BOLT, FLANGE

90105-10265-00

$5.60

6

CALIPER ASSY (LEFT

2PG-2580T-00-00

Unavailable

7

PISTON ASSY, CALIPER

1XD-25802-00-00

$44.99

8

CALIPER SEAL KIT

1XD-25803-00-00

$42.99

9

BOOT 2

1UY-25937-51-00

$14.49

10

BOOT, CALIPER

3JD-25917-00-00

$8.99

11

SUPPORT, PAD

1XD-25919-00-00

$13.49

12

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

13

BOLT

1UY-25926-51-00

$4.47

14

WASHER, SPRING

1UY-25938-51-00

Unavailable

15

BOLT

3JD-25926-00-00

$7.99

16

NUT

3JD-25961-00-00

Unavailable

17

BRAKE PAD KIT

1XD-25805-00-00

Unavailable

18

PIN, PAD

3TB-25933-00-00

Unavailable

19

SHIM, CALIPER

2PG-25827-00-00

Unavailable

20

SHIM, CALIPER

2PG-25828-00-00

Unavailable

21

CALIPER ASSY (RIGH

2PG-2580U-00-00

Unavailable

22

PISTON ASSY, CALIPER

1XD-25802-00-00

$44.99

23

CALIPER SEAL KIT

1XD-25803-00-00

$42.99

24

BOOT 2

1UY-25937-51-00

$14.49

25

BOOT, CALIPER

3JD-25917-00-00

$8.99

26

SUPPORT, PAD

1XD-25919-00-00

$13.49

27

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

28

BOLT

1UY-25926-51-00

$4.47

29

WASHER, SPRING

1UY-25938-51-00

Unavailable

30

BOLT

3JD-25926-00-00

$7.99

31

NUT

3JD-25961-00-00

Unavailable

32

BRAKE PAD KIT

1XD-25805-10-00

Unavailable

33

PIN, PAD

3TB-25933-00-00

Unavailable

34

SHIM, CALIPER

2PG-25827-00-00

Unavailable

35

SHIM, CALIPER

2PG-25828-00-00

Unavailable
