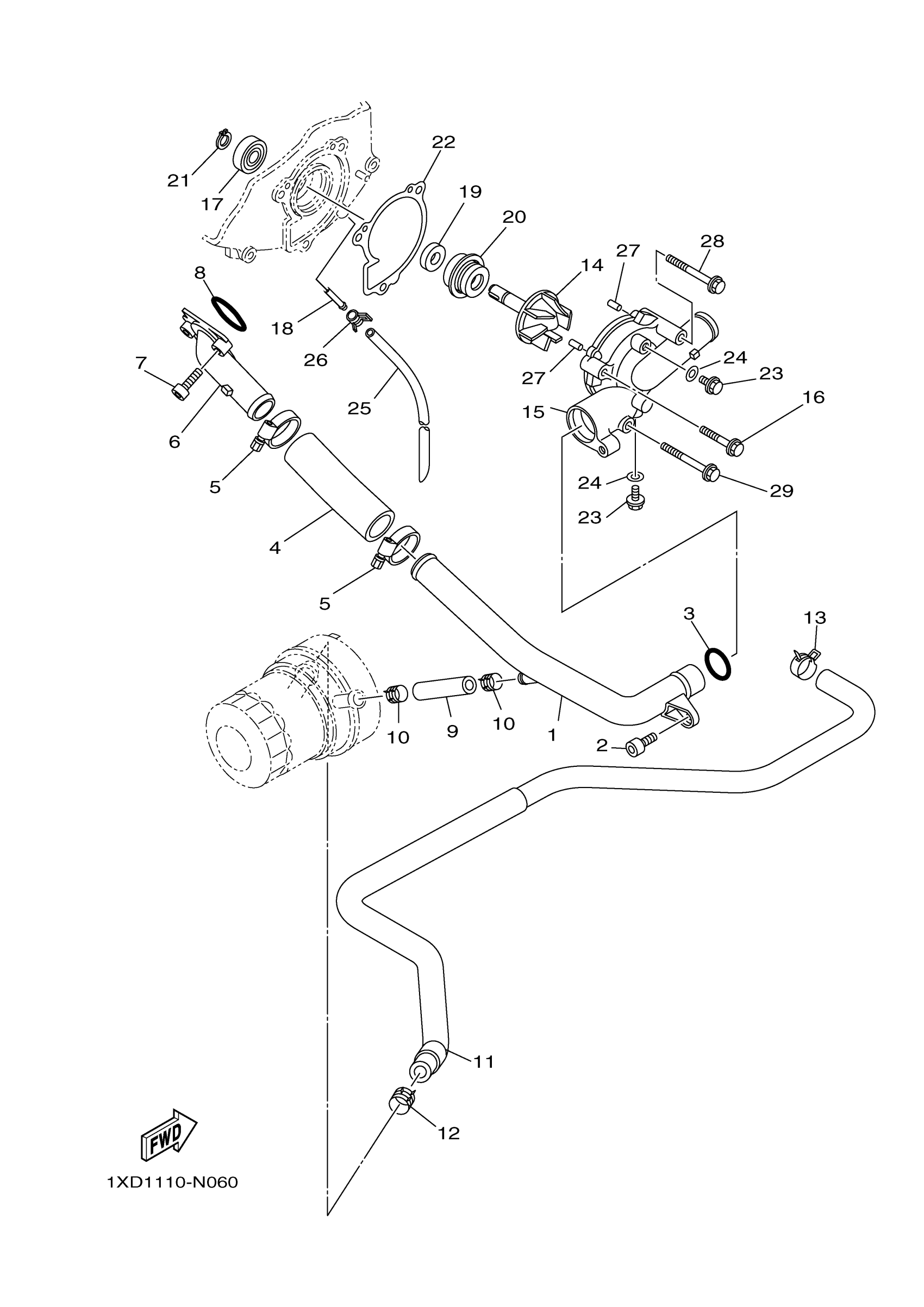

Yamaha YXC70VPHNH (VIKING VI EPS HUNTING) BHE7 2022 WATER PUMP Diagram
#
Description
Price
1
PIPE 1
1XD-12481-00-00
$40.99
2
BOLT,SOCKET
91317-06012-00
$8.49
3
O-RING
93210-21190-00
$7.49
4
HOSE (L88)
90445-29002-00
$5.49
5
HOSE CLAMP ASSY
90450-32015-00
$17.99
6
JOINT 1
5KM-12469-00-00
$56.99
7
BOLT,SOCKET HEAD
91314-06020-00
$1.49
8
O-RING
93210-33006-00
$4.72
9
HOSE (L58)
90445-16018-00
Unavailable
10
CLIP (4X7)
90467-15054-00
$8.49
11
HOSE 2
1XD-1243E-00-00
$42.99
12
CLIP (4X7)
90467-15054-00
$8.49
13
CLIP (4X7)
90467-15054-00
$8.49
14
IMPELLER SHAFT ASSY
3B4-12450-00-00
$53.99
15
COVER, HOUSING
5B4-12422-00-00
$80.99
16
BOLT, FLANGE
95022-06030-00
Unavailable
17
BRG,R-B 6000 26MM 19G KY
93306-00004-00
Unavailable
18
PIPE, DRAIN
B4D-E243K-00-00
Unavailable
19
OIL SEAL (J10)
93101-10090-00
Unavailable
20
SEAL, MECHANICAL
11H-12438-10-00
Unavailable
21
CIRCLIP(10W)
99009-10400-00
Unavailable
22
GASKET, HOUSING COVER 2
3B4-12428-00-00
Unavailable
23
BOLT, FLANGE
95022-06010-00
Unavailable
24
GASKET 256113960000
90430-06014-00
Unavailable
25
HOSE (L1050)
90445-072G8-00
Unavailable
26
CLIP(42X)
90467-07093-00
Unavailable
27
PIN,DOWEL (603)
93604-10011-00
Unavailable
28
BOLT, FLANGE
95022-06050-00
Unavailable
29
BOLT, FLANGE
95022-06050-00
Unavailable
