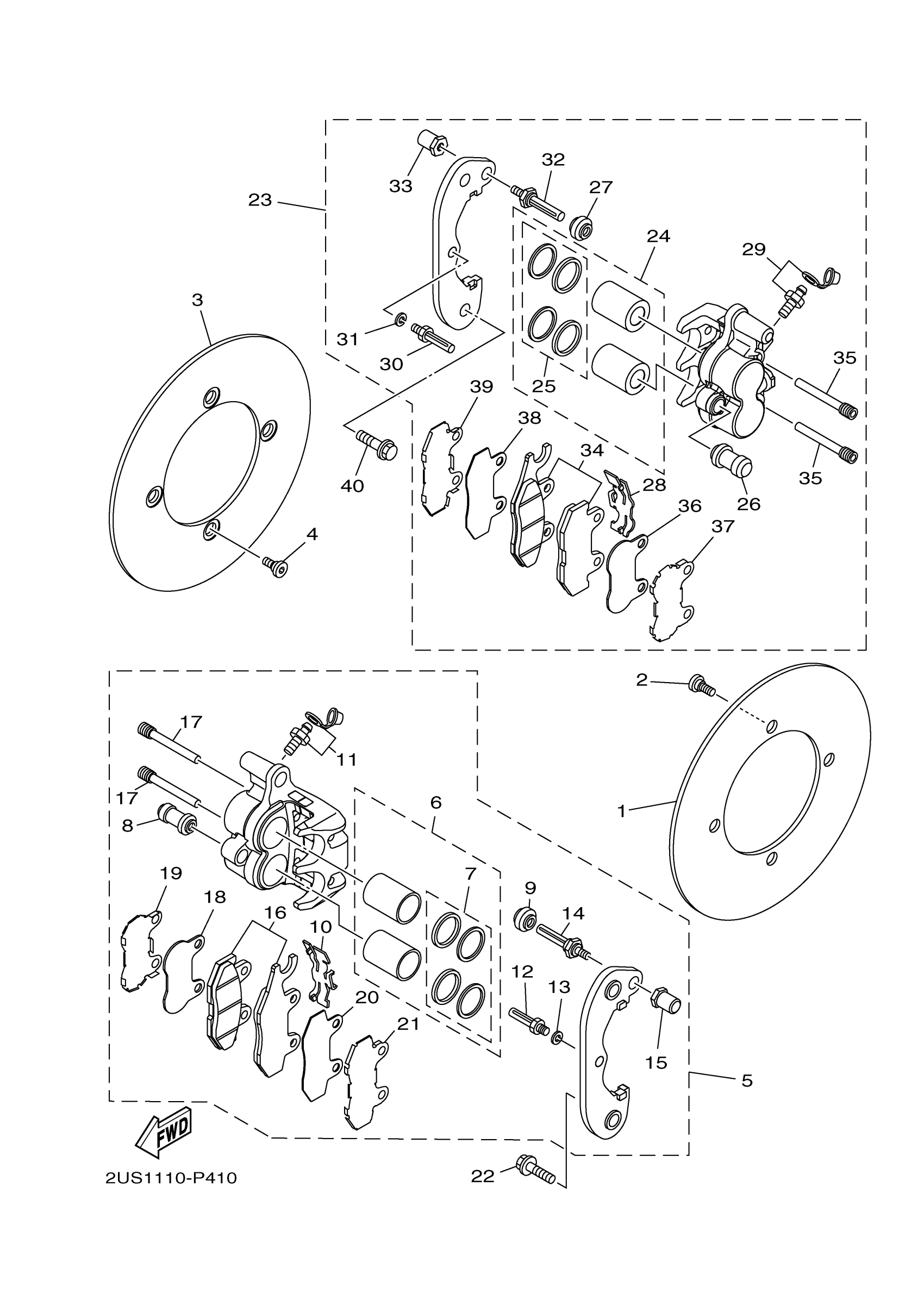

Yamaha YXC70VPHNH (VIKING VI EPS HUNTING) BHE7 2022 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

1XD-F582T-00-00

$43.55

2

BOLT

90109-08087-00

$2.47

3

DISC, BRAKE (LEFT)

1XD-F582T-00-00

$43.55

4

BOLT

90109-08087-00

$2.47

5

CALIPER ASSY, REAR

2PG-2580V-01-00

Unavailable

6

PISTON ASSY, CALIPER

3LD-25802-00-00

$45.39

7

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

8

BOOT 2

1UY-25937-51-00

$11.48

9

BOOT, CALIPER

3JD-25917-00-00

$7.03

10

SPRING, PAD

3LD-25934-01-00

$25.18

11

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

12

BOLT

1UY-25926-51-00

$3.11

13

WASHER, SPRING

1UY-25938-51-00

Unavailable

14

BOLT

3JD-25926-00-00

$5.99

15

NUT

3JD-25961-00-00

$6.46

16

BRAKE PAD KIT 2

1XD-25806-01-00

Unavailable

17

PIN, PAD

3FV-25924-00-00

Unavailable

18

SHIM, CALIPER

2PG-25827-10-00

Unavailable

19

SHIM, CALIPER

2PG-25828-10-00

Unavailable

20

SHIM, CALIPER

2PG-25827-20-00

Unavailable

21

SHIM, CALIPER

2PG-25828-20-00

Unavailable

22

BOLT, FLANGE

90105-10265-00

Unavailable

23

CALIPER ASSY, REAR

2PG-2580W-01-00

Unavailable

24

PISTON ASSY, CALIPER

3LD-25802-00-00

$45.39

25

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

26

BOOT 2

1UY-25937-51-00

$11.48

27

BOOT, CALIPER

3JD-25917-00-00

$7.03

28

SPRING, PAD

3LD-25934-01-00

$25.18

29

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

30

BOLT

1UY-25926-51-00

$3.11

31

WASHER, SPRING

1UY-25938-51-00

Unavailable

32

BOLT

3JD-25926-00-00

$5.99

33

NUT

3JD-25961-00-00

$6.46

34

BRAKE PAD KIT 2

1XD-25806-11-00

Unavailable

35

PIN, PAD

3FV-25924-00-00

Unavailable

36

SHIM, CALIPER

2PG-25827-10-00

Unavailable

37

SHIM, CALIPER

2PG-25828-10-00

Unavailable

38

SHIM, CALIPER

2PG-25827-20-00

Unavailable

39

SHIM, CALIPER

2PG-25828-20-00

Unavailable

40

BOLT, FLANGE

90105-10265-00

Unavailable
