SIDE COVER 2

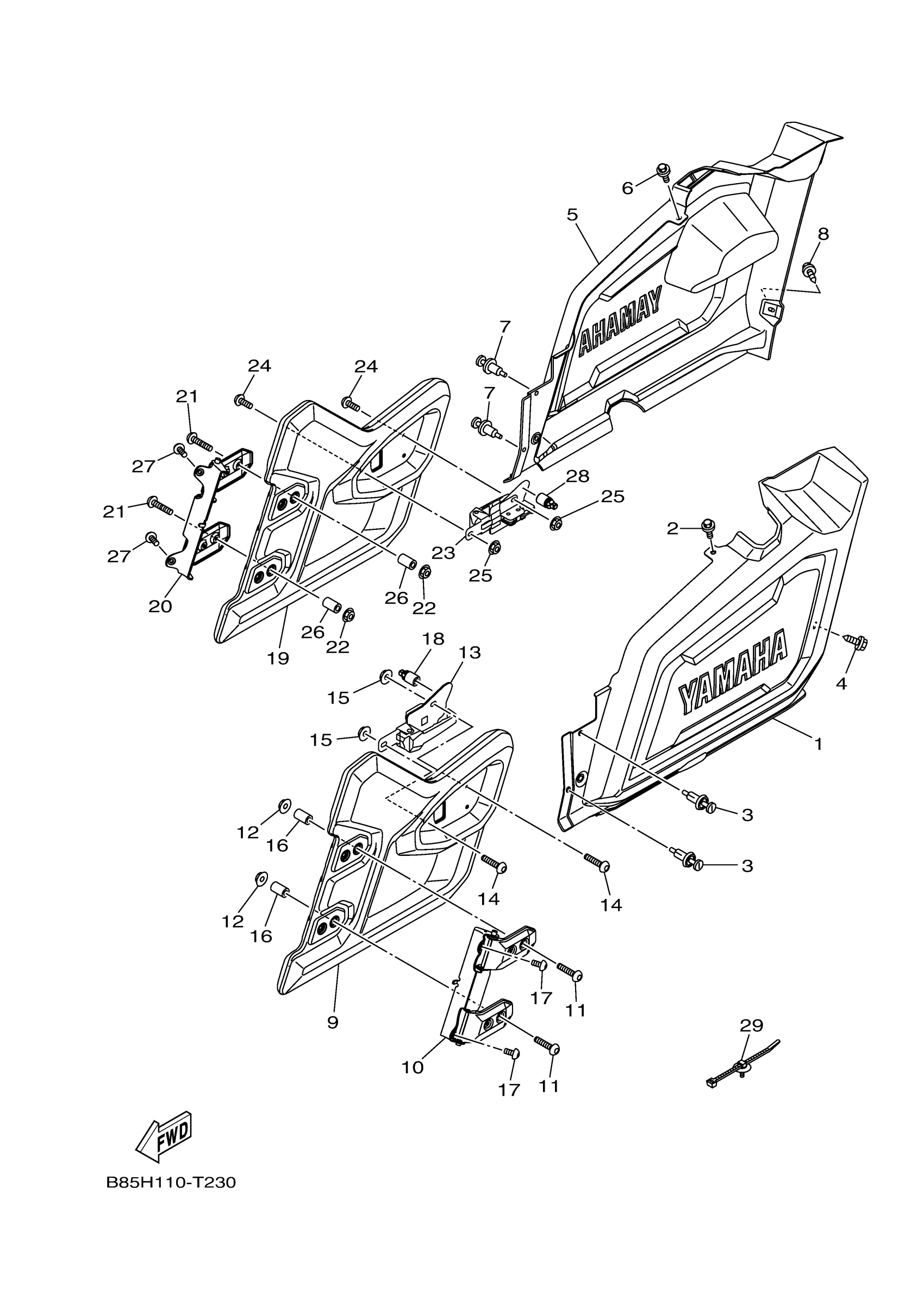

Yamaha YXC70VPHLH (VIKING VI EPS HUNTER) B85V 2020 SIDE COVER 2 Diagram
#
Description
Price
1
COVER, SIDE 2
1XD-F1721-00-00
$30.99
2
BOLT, WITH WASHER
90119-06226-00
$8.49
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
BOLT, WITH WASHER
90119-06226-00
$8.49
5
COVER, SIDE 3
1XD-F1731-00-00
$28.99
6
BOLT, WITH WASHER
90119-06226-00
$8.49
7
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
8
BOLT, WITH WASHER
90119-06226-00
$8.49
9
DOOR PANEL
2PG-K8571-11-00
$63.99
10
HINGE ASS'Y
2PG-F4772-10-00
$48.99
11
BOLT
90109-06897-00
$0.90
12
NUT, U FLANGE
95604-06200-00
$8.49
13
BODY, LATCH 1
2MB-K7171-00-00
$69.99
14
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
15
NUT, U FLANGE
95604-06200-00
$8.49
16
COLLAR
90387-06304-00
Unavailable
17
SCREW
90149-06847-00
Unavailable
18
PAD
2MB-F8378-00-00
Unavailable
19
DOOR PANEL
2PG-K8571-11-00
$63.99
20
HINGE,SEAT 2
2PG-F4779-10-00
Unavailable
21
BOLT
90109-06897-00
$0.90
22
NUT, U FLANGE
95604-06200-00
$8.49
23
BODY, LATCH 2
2MB-K7172-00-00
Unavailable
24
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
25
NUT, U FLANGE
95604-06200-00
$8.49
26
COLLAR
90387-06304-00
Unavailable
27
SCREW
90149-06847-00
Unavailable
28
PAD
2MB-F8378-00-00
Unavailable
29
CLAMP
5B4-F1338-00-00
Unavailable
