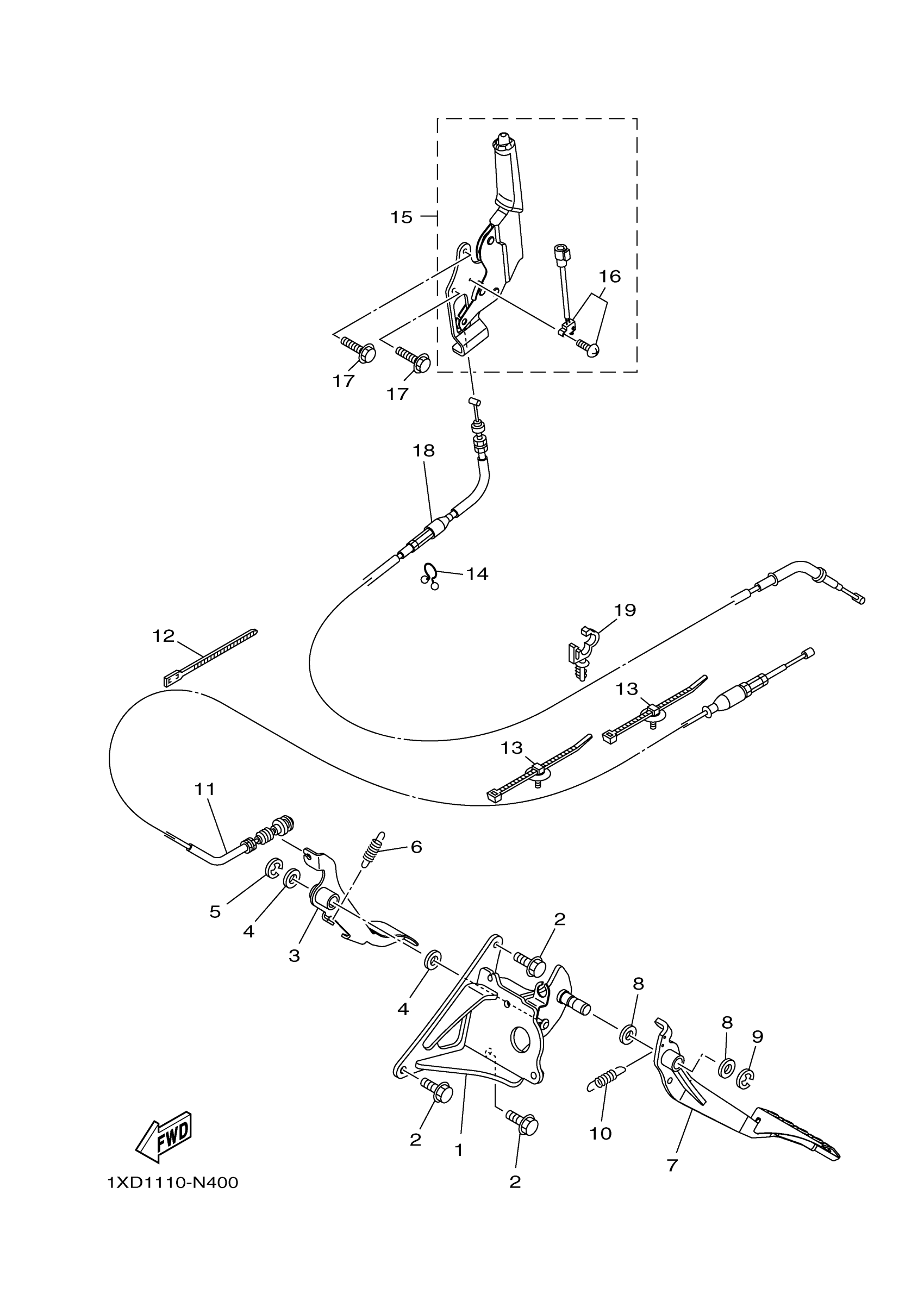

Yamaha YXC70VPHJH (VIKING VI EPS HUNTER) B85K 2018 PEDAL WIRE Diagram

#

Description
Price

1

BRACKET,PEDL SUPRT

1XD-F2548-10-00

$62.62

2

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

3

ACCEL PEDAL ASSY

1XD-F7801-00-00

$14.17

4

WASHER, PLATE

90201-15018-00

$5.90

5

CIRCLIP (122)

93430-12008-00

$4.89

6

SPRING, TENSION

90506-23023-00

$3.91

7

PEDAL, BRAKE

1XD-F7200-00-00

$27.97

8

WASHER, PLATE

90201-15018-00

$5.90

9

CIRCLIP (122)

93430-12008-00

$4.89

10

SPRING, TENSION

90506-23023-00

$3.91

11

CABLE, THROTTLE 1

2PG-26311-00-00

$67.48

12

CLAMP(JN6)

90464-40825-00

$1.63

13

CLAMP

5B4-F1338-00-00

$2.80

14

CLAMP

90464-20804-00

$2.18

15

PARKING LEVER ASSY

BDW-F5690-00-00

$72.92

16

. SWITCH COMP

5UG-H251S-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

WIRE, BRAKE 1

2PG-26341-02-00

Unavailable

19

CLAMP

90464-12830-00

Unavailable
