- YXC70VPHHH (VIKING VI EPS HUNTER) B85D 2017
RADIATOR HOSE

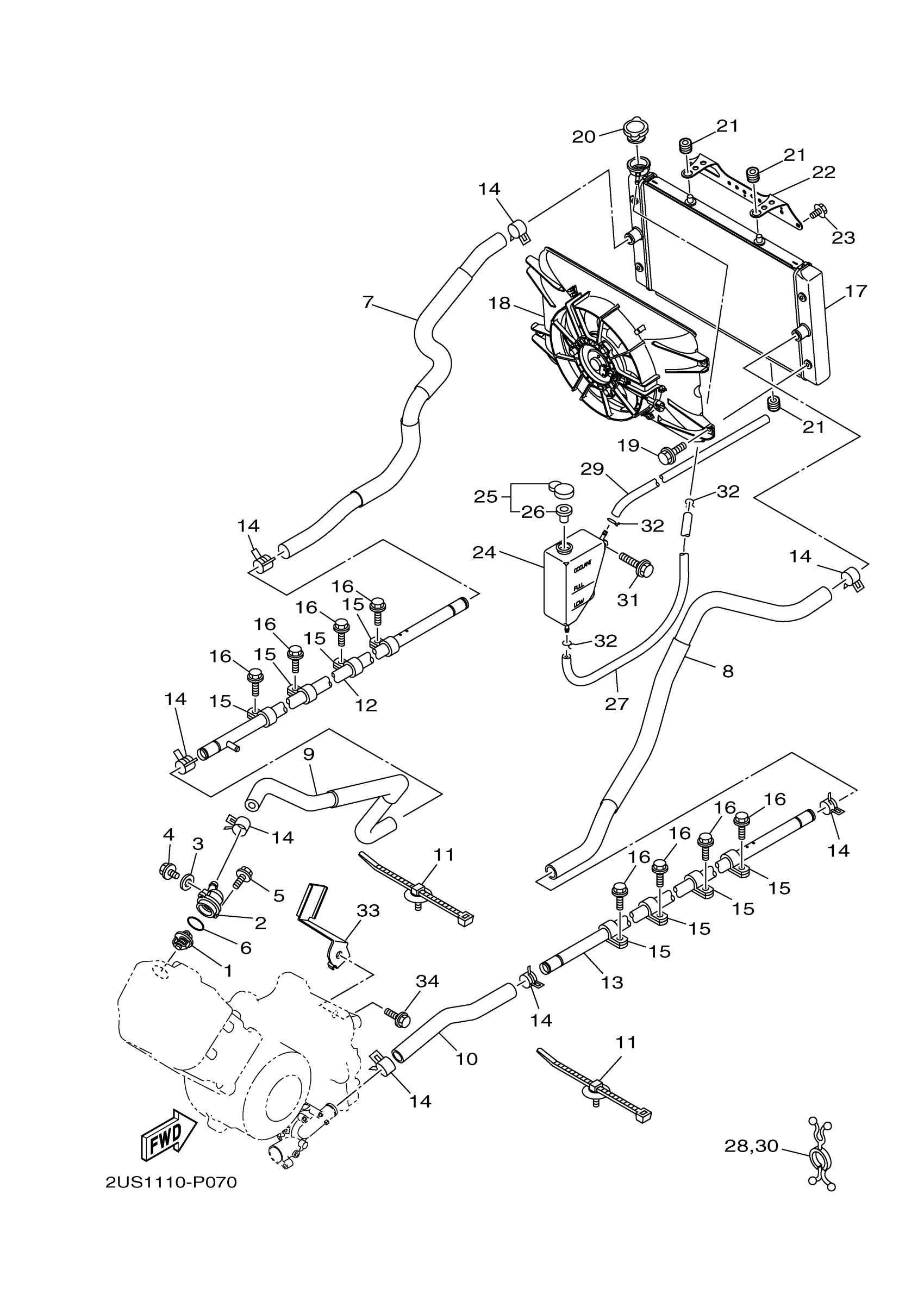

Yamaha YXC70VPHHH (VIKING VI EPS HUNTER) B85D 2017 RADIATOR HOSE Diagram
#
1
THERMOSTAT
1XD-12411-01-00
$37.99
2
COVER, THERMOSTAT
5B4-12413-00-00
$46.99
3
GASKET 256113960000
90430-06014-00
Unavailable
4
BOLT, FLANGE
95022-06010-00
$5.60
5
BOLT, FLANGE
95022-06020-00
$3.62
6
O-RING (132)
93210-41042-00
$7.49
7
HOSE 1
1XD-E2576-00-00
$36.99
8
HOSE 2
1XD-E2577-00-00
$36.99
9
HOSE 3
1XD-E2578-00-00
$31.99
10
HOSE 4
1XD-E2579-00-00
$15.49
11
CLAMP
1NS-F1338-00-00
$3.33
12
PIPE, WATER
2PG-E2564-00-00
$40.99
13
PIPE 3
2PG-E2483-00-00
Unavailable
14
CLIP
90467-26189-00
$7.49
15
CLAMP
90461-12800-00
$2.28
16
BOLT, FLANGE
90105-06831-00
Unavailable
17
RADIATOR ASY
1XD-E2461-01-00
Unavailable
18
BLOWER ASSY
1XD-E2405-01-00
Unavailable
19
BOLT, BLOWER HOLDI
1XD-E2675-00-00
Unavailable
20
CAP, RADIATOR
1XD-E2462-00-00
Unavailable
21
GROMMET(2GH)
90480-12475-00
Unavailable
22
BRACKET, WATER COO
1XD-E2518-00-00
Unavailable
23
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
24
TANK, RECOVERY
1XD-F1871-00-00
Unavailable
25
CAP
1AA-21815-00-00
Unavailable
26
GASKET
1AA-21874-00-00
Unavailable
27
HOSE (L920)
90445-08846-00
Unavailable
28
CLAMP(3XV)
90464-29179-00
Unavailable
29
HOSE (L760)
90445-08845-00
Unavailable
30
CLAMP(3XV)
90464-29179-00
Unavailable
31
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
32
CLIP 101235600
90467-08003-00
Unavailable
33
STAY
1XD-E2443-00-00
Unavailable
34
BOLT, FLANGE
95814-10040-00
Unavailable
