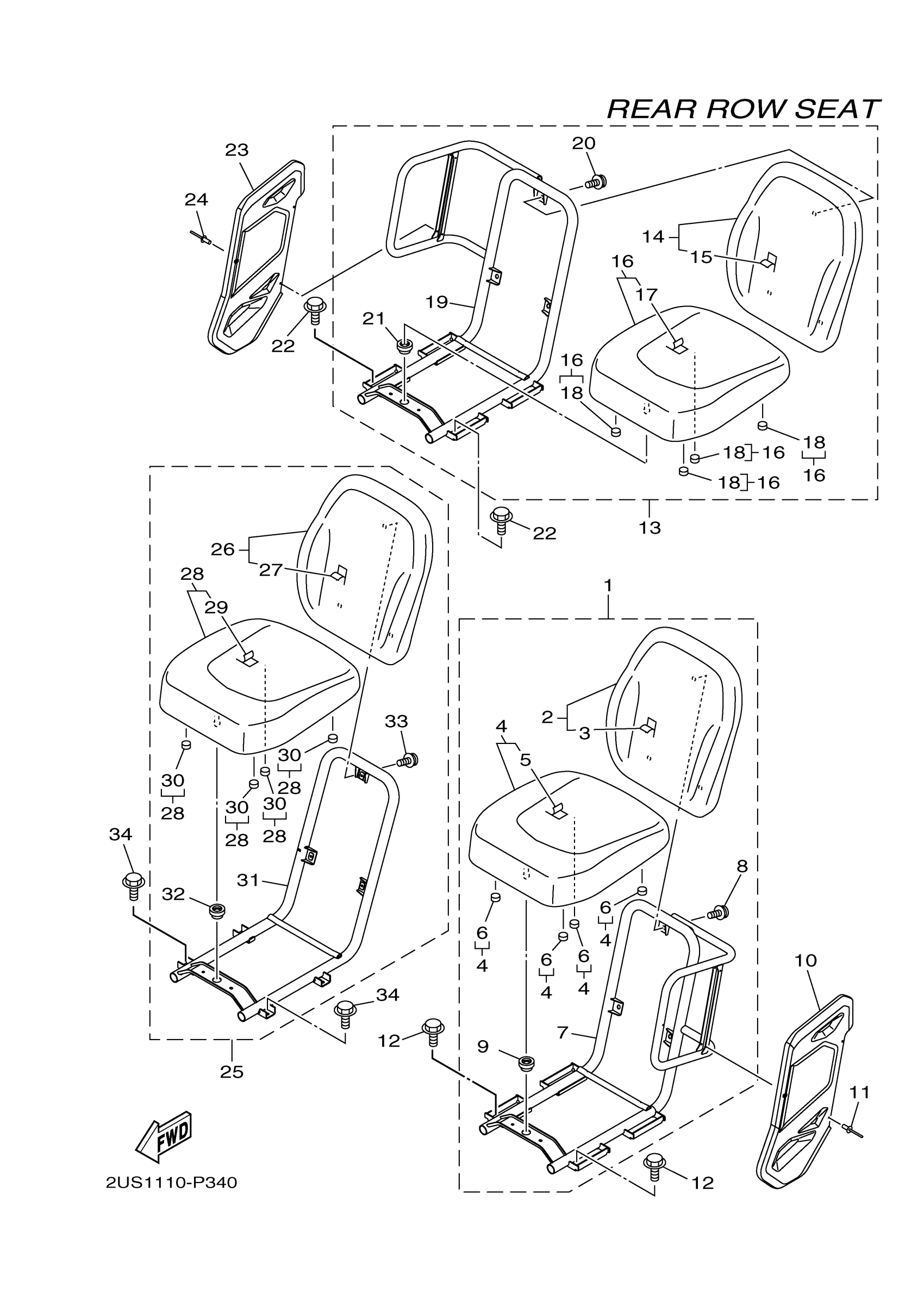

Yamaha YXC70VPHGH (VIKING VI EPS HUNTER) B855 2016 SEAT 3 Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-02-00

$256.18

2

SEAT BACK ASY

1XD-F4790-01-00

$458.81

3

COVER,SINGLE SEAT

1XD-F4711-01-00

$162.57

4

SEAT ASSY

1XD-F4700-01-00

Unavailable

5

COVER,DOUBLE SEAT

1XD-F4731-01-00

$154.13

6

DAMPER, SEAT

1XD-F4723-00-00

$1.43

7

FRAME, SEAT 1

1XD-F473C-01-00

$285.88

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

9

GROMMET

1XD-F4742-00-00

Unavailable

10

COVER,2

1XD-F475X-01-00

$30.12

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

12

BOLT, FLANGE

95817-08012-00

$3.81

13

SEAT 2

2PG-F7499-02-00

$300.21

14

SEAT BACK ASY

1XD-F4790-01-00

$458.81

15

COVER,SINGLE SEAT

1XD-F4711-01-00

$162.57

16

SEAT ASSY

1XD-F4700-01-00

Unavailable

17

COVER,DOUBLE SEAT

1XD-F4731-01-00

$154.13

18

DAMPER, SEAT

1XD-F4723-00-00

$1.43

19

FRAME, SEAT 2

1XD-F473D-01-00

$246.18

20

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

21

GROMMET

1XD-F4742-00-00

Unavailable

22

BOLT, FLANGE

95817-08012-00

$3.81

23

COVER,2

1XD-F475X-01-00

$30.12

24

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

25

SEAT 3

2PG-F749A-02-00

$315.40

26

SEAT BACK ASY

1XD-F4790-01-00

$458.81

27

COVER,SINGLE SEAT

1XD-F4711-01-00

$162.57

28

SEAT ASSY

1XD-F4700-01-00

Unavailable

29

COVER,DOUBLE SEAT

1XD-F4731-01-00

$154.13

30

DAMPER, SEAT

1XD-F4723-00-00

$1.43

31

DAMPER

1XD-F473Y-01-00

Unavailable

32

GROMMET

1XD-F4742-00-00

Unavailable

33

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

34

BOLT, FLANGE

95817-08012-00

$3.81
