- YXC70VPHGH (VIKING VI EPS HUNTER) B855 2016
FRONT FENDER

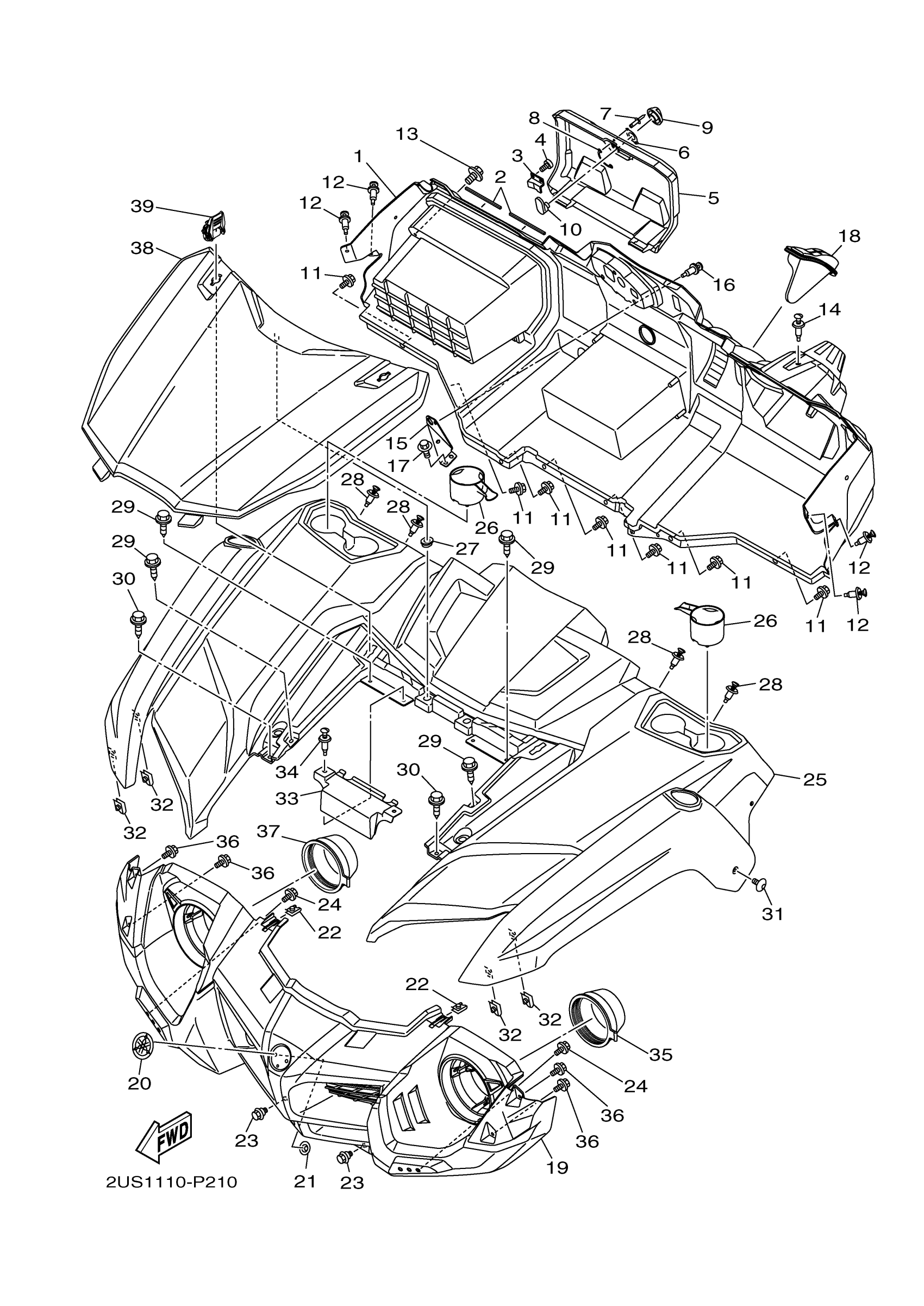

Yamaha YXC70VPHGH (VIKING VI EPS HUNTER) B855 2016 FRONT FENDER Diagram
#
1
PANEL, INSTRUMENT
1XD-K7711-00-00
Unavailable
2
DAMPER 1
1XD-F1541-01-00
$3.40
3
BRACKET, COVER
1XD-F139T-00-00
$2.70
4
SCREW, TAPPING
90164-04800-00
Unavailable
5
LID
1XD-F160F-00-00
Unavailable
6
WASHER, SPECIAL
1XD-F1515-00-00
Unavailable
7
RIVET, BLIND
90267-24143-00
$8.49
8
WASHER, SPECIAL 2
1XD-F1516-00-00
$1.92
9
LOCK 1
1XD-2837G-00-00
$4.06
10
LOCK 2
1XD-2837H-00-00
$2.70
11
BOLT, WITH WASHER
90119-06226-00
$8.49
12
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
13
BOLT, WITH WASHER
90119-06226-00
$8.49
14
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
15
BRACKET, DASH UPPER 1
1XD-F258G-00-00
Unavailable
16
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
17
BOLT, FLANGE
95817-06012-00
Unavailable
18
COVER, HANDLE LEVE
1XD-F6372-00-00
Unavailable
19
GRILLE, FRONT
1XD-F8309-00-00
Unavailable
20
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
21
NUT, SPRING
90183-06071-00
Unavailable
22
NUT, SPRING
90183-060A6-00
Unavailable
23
BOLT
90109-06202-00
Unavailable
24
BOLT, HEXA W/W
90119-06018-00
Unavailable
25
FRONT FENDER COMP.
BD9-F1510-00-00
Unavailable
26
HOLDER
2PG-F1596-00-00
Unavailable
27
GROMMET(4DN)
90480-01558-00
Unavailable
28
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
29
BOLT, WITH WASHER
90119-06226-00
$8.49
30
BOLT, WITH WASHER
90119-06226-00
$8.49
31
SCREW(3LD)
90149-06280-00
Unavailable
32
NUT, SPRING
90183-060A6-00
Unavailable
33
COVER,REAR FENDER
1XD-F163A-01-00
Unavailable
34
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
35
CAP
3B4-28349-00-00
Unavailable
36
BOLT, WITH WASHER
90119-06226-00
$8.49
37
CAP
3B4-28349-00-00
Unavailable
38
HOOD ASSY 3
2MB-F197A-00-00
Unavailable
39
LEVER, LOCK
1XD-2175K-10-00
Unavailable
