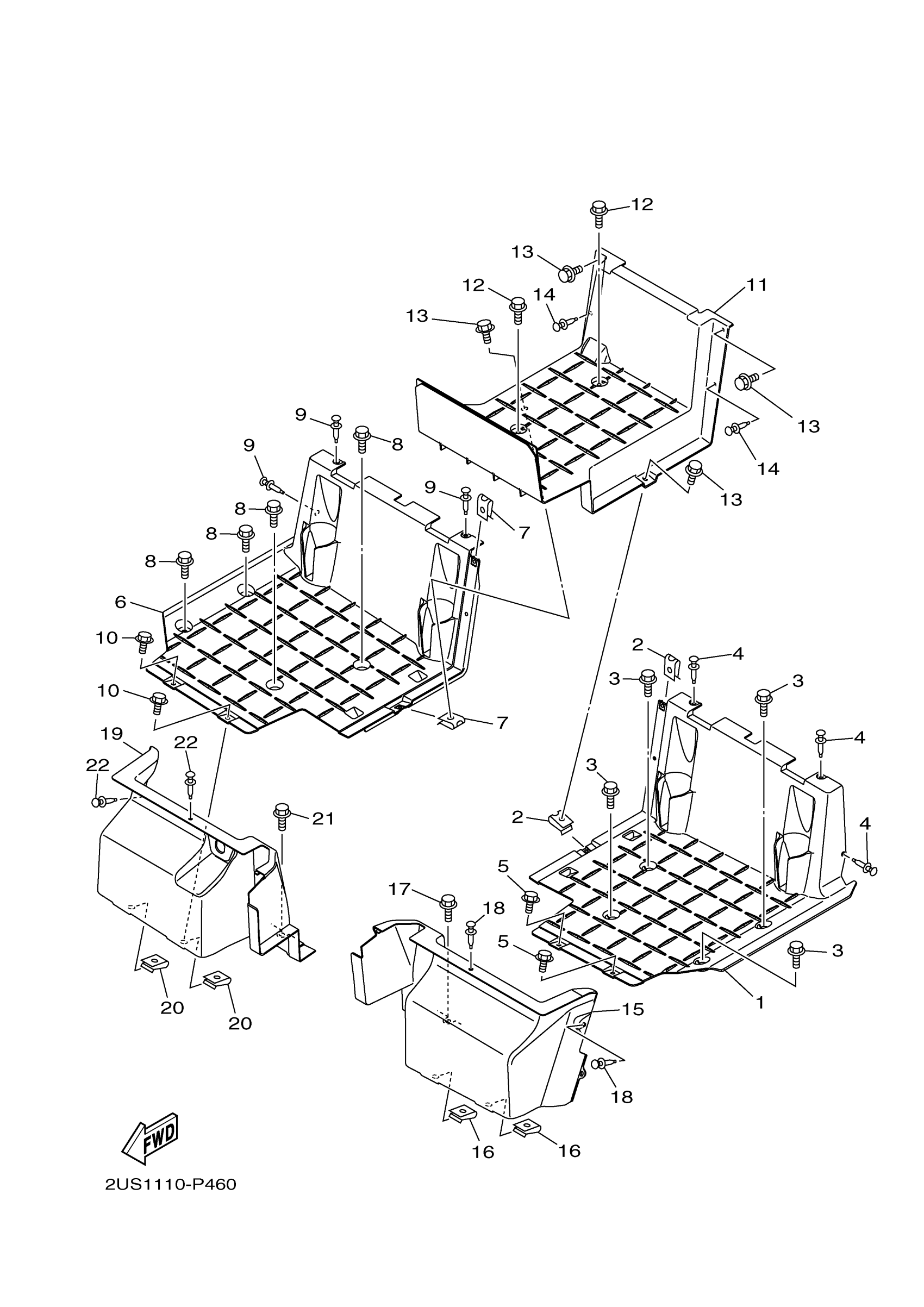

Yamaha YXC700PSFS (VIKING VI EPS SE) 2US8 2015 STAND FOOTREST 2 Diagram

#

Description
Price

1

FOOTREST, REAR 1

2PG-F7431-00-00

$40.67

2

NUT, SPRING

90183-060A6-00

$3.90

3

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

5

BOLT, WITH WASHER

90119-06226-00

$2.12

6

FOOTREST, REAR 2

2PG-F7441-00-00

$42.15

7

NUT, SPRING

90183-060A6-00

$3.90

8

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

9

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

10

BOLT, WITH WASHER

90119-06226-00

$2.12

11

COVER, FOOTREST

2PG-F7423-00-00

$43.68

12

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

13

BOLT, WITH WASHER

90119-06226-00

$2.12

14

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

15

COVER, REAR FOOTRE

2PG-F7433-00-00

$23.95

16

NUT, SPRING

90183-060A6-00

$3.90

17

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

18

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

19

COVER, REAR FOOTRE

2PG-F7444-00-00

Unavailable

20

NUT, SPRING

90183-060A6-00

$3.90

21

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

22

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07
