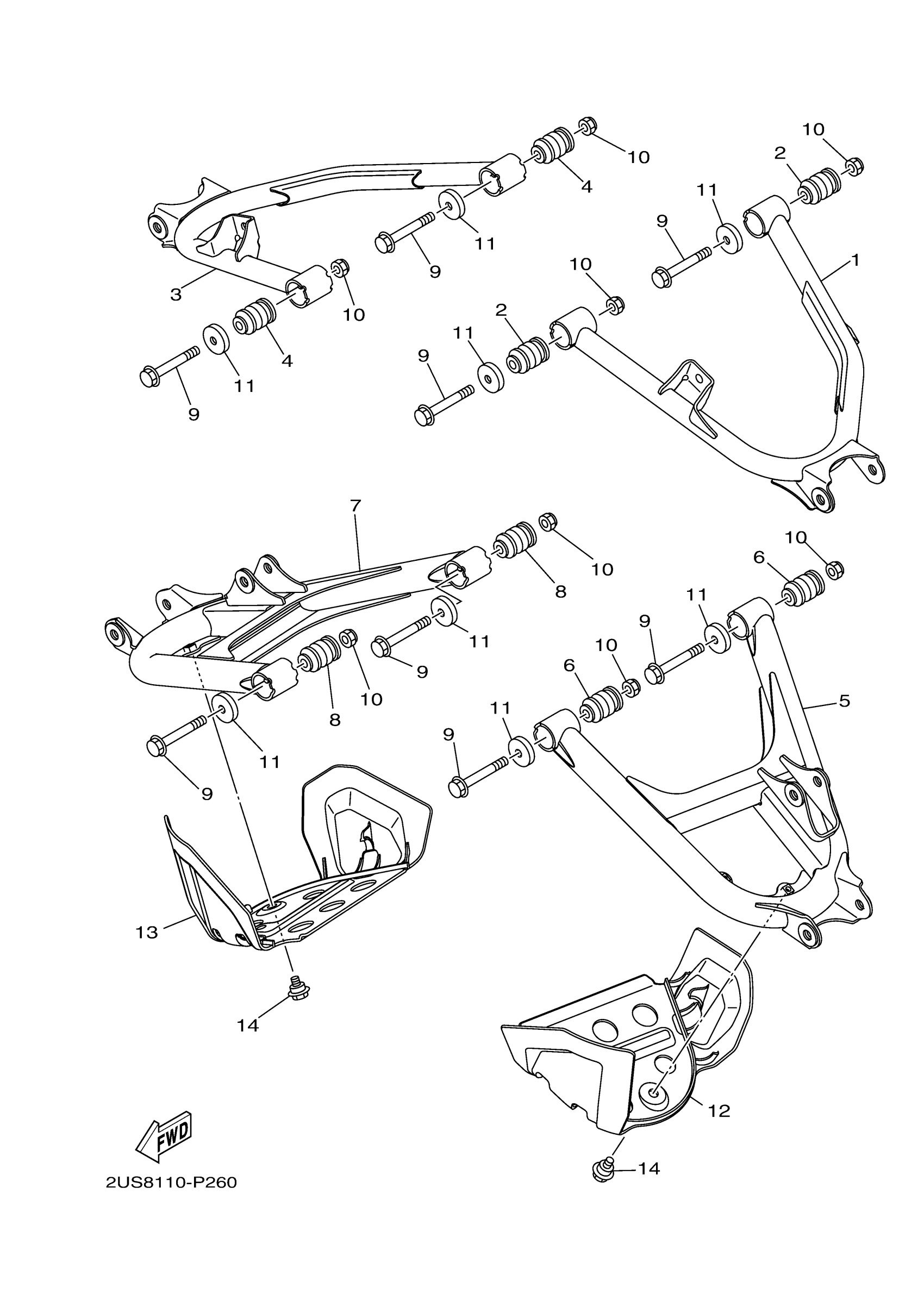

Yamaha YXC700PSFS (VIKING VI EPS SE) 2US8 2015 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

2US-F2171-00-00

$40.16

2

BUSH

1HP-F3526-00-00

$20.42

3

ARM, REAR 2

2US-F2172-00-00

$32.67

4

BUSH

1HP-F3526-00-00

$20.42

5

ARM 1

1XD-F217M-01-00

$61.66

6

BUSH

1HP-F3526-00-00

$20.42

7

ARM 2

1XD-F217N-01-00

$59.88

8

BUSH

1HP-F3526-00-00

$20.42

9

BOLT, FLANGE

90105-10267-00

$7.23

10

NUT, SELF-LOCKING

90185-10012-00

$2.78

11

WASHER

5KM-22149-10-00

$6.10

12

COVER, THRUST 1

1XD-F2128-01-00

Unavailable

13

COVER, THRUST 2

1XD-F2129-01-00

$9.01

14

BOLT

90109-06220-00

$6.94
