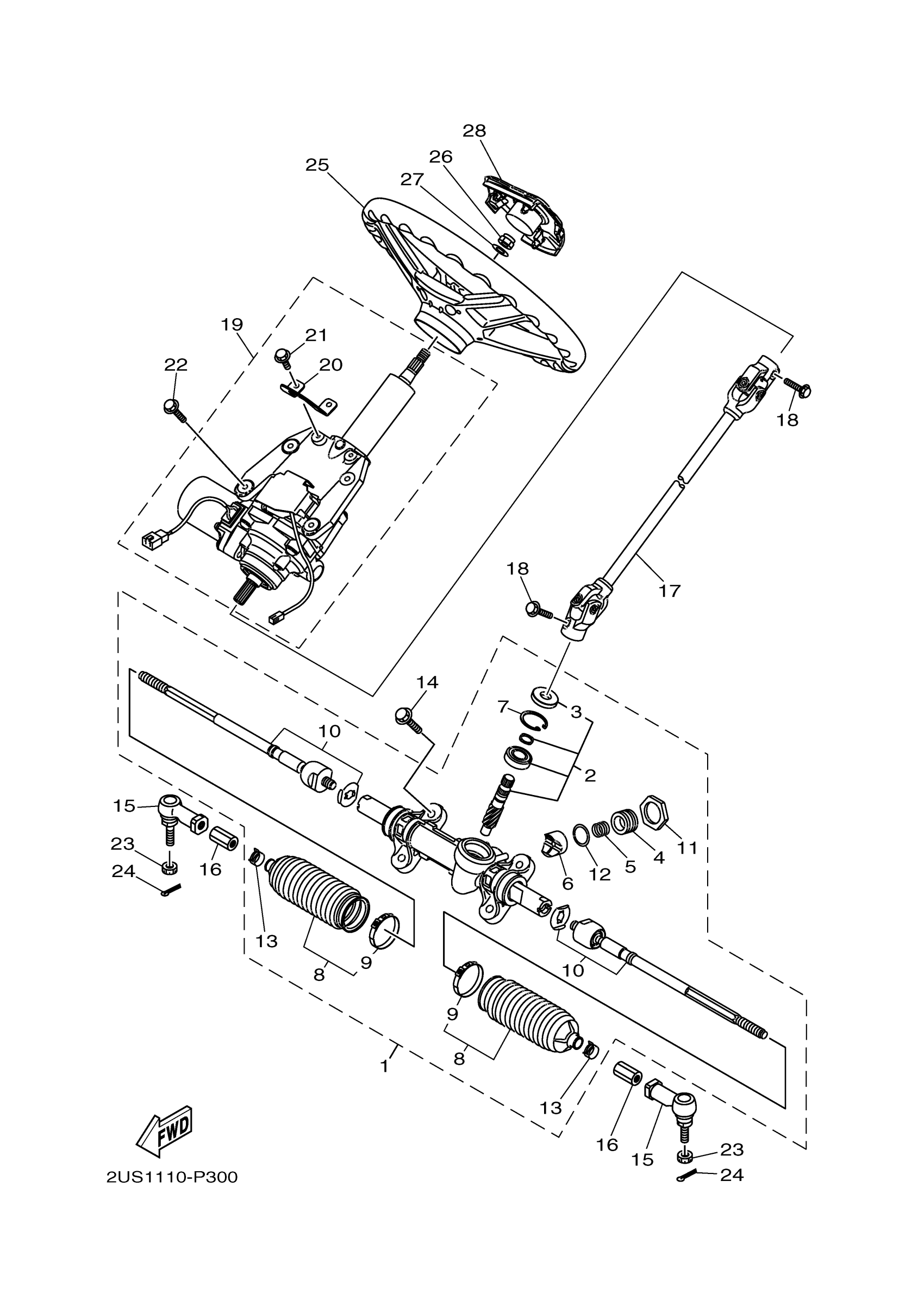

Yamaha YXC700PHFH (VIKING VI EPS HUNTER) 2US6 2015 STEERING Diagram
#
Description
Price
1
STEERING ASY
2PG-F3400-01-00
$223.99
2
STEERING PINION SE
2PG-F38G0-00-00
$27.99
3
SEAL
1XD-F3844-00-00
$4.94
4
COVER,ADJUST
1XD-F387G-00-00
Unavailable
5
SPRING,PRESSURE
1XD-F387K-00-00
Unavailable
6
PAD,PRESSURE
1XD-F387F-00-00
Unavailable
7
RING,STOPPER
1XD-F387J-00-00
Unavailable
8
SEAL 1 W/ BAND SET OF 2
1XD-F1208-00-00
Unavailable
9
BAND
1XD-F3489-00-00
$2.81
10
RACK END SET
1XD-F38H0-00-00
Unavailable
11
LOCK ASSY
1XD-F178K-00-00
Unavailable
12
WASHER
1XD-F3165-00-00
$1.92
13
CLIP
1XD-F3447-00-00
$1.92
14
BOLT, FLANGE
95022-10030-00
$7.49
15
JOINT, UNIVERSAL 1
5B4-23841-00-00
$69.99
16
NUT 1
2PG-F3833-00-00
Unavailable
17
STEERING SHAFT ASS
1XD-F3840-01-00
Unavailable
18
BOLT, FLANGE
95022-08025-00
Unavailable
19
STEERING COLUMN SET
1XP-238D0-03-00
Unavailable
20
BRACKET 1
1XP-23881-00-00
Unavailable
21
BOLT, FLANGE
95817-06016-00
Unavailable
22
BOLT, FLANGE
95812-08020-00
Unavailable
23
NUT, CASTLE
90171-12001-00
Unavailable
24
PIN, COTTER
91490-20025-00
Unavailable
25
STEERING WHEEL KIT
2HC-F3838-09-00
Unavailable
26
NUT, SELF-LOCKING
90185-12008-00
Unavailable
27
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
28
COVER, STEERING
1XD-F3818-00-00
Unavailable
