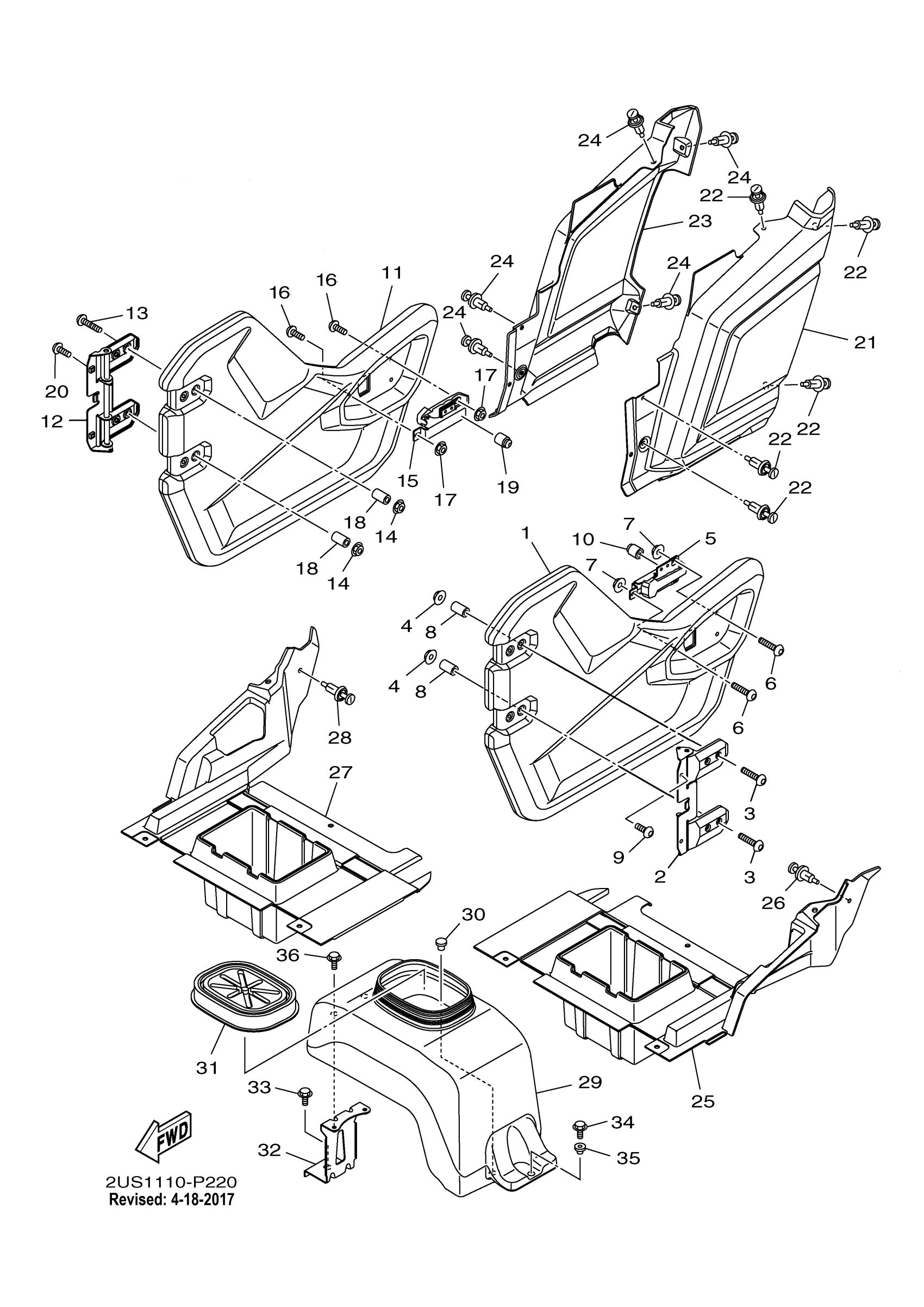

Yamaha YXC700PHFH (VIKING VI EPS HUNTER) 2US6 2015 SIDE COVER Diagram
#
1
PNL., DOOR FR. LH
1XD-K8557-11-00
$74.99
2
HINGE ASSY
1XD-F4772-00-00
$45.99
3
BOLT
90109-06897-00
$0.90
4
NUT, U FLANGE
95604-06200-00
$8.49
5
BODY,LATCH 1
1XD-K7171-10-00
Unavailable
6
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
7
NUT, U FLANGE
95604-06200-00
$8.49
8
COLLAR
90387-06304-00
$2.60
9
BOLT 2
5B4-F1722-00-00
$6.99
10
PAD
1XD-F8378-00-00
Unavailable
11
PNL., DOOR FR. LH
1XD-K8557-11-00
$74.99
12
HINGE ASSY
1XD-F4772-00-00
$45.99
13
BOLT
90109-06897-00
$0.90
14
NUT, U FLANGE
95604-06200-00
$8.49
15
BODY,LATCH 1
1XD-K7171-10-00
Unavailable
16
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
17
NUT, U FLANGE
95604-06200-00
$8.49
18
COLLAR
90387-06304-00
$2.60
19
PAD
1XD-F8378-00-00
Unavailable
20
BOLT 2
5B4-F1722-00-00
$6.99
21
COVER, SIDE 5
2PG-F171E-00-00
Unavailable
22
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
23
COVER, SIDE 6
2PG-F171X-00-00
Unavailable
24
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
25
PLATE, UNDER 4
2PG-F84A6-00-00
Unavailable
26
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
27
PLATE, UNDER 5
2PG-F84A7-00-00
Unavailable
28
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
29
CASE
2PG-F8271-01-00
Unavailable
30
. PLUG, BLIND
90605-502U1-00
Unavailable
31
LID
1HP-F160F-00-00
Unavailable
32
BRKT., FR. STORAGE
2PG-F253E-00-00
Unavailable
33
BOLT, FLANGE
90105-06831-00
Unavailable
34
BOLT, FLANGE
90105-06833-00
Unavailable
35
COLLAR (4N0)
90387-071E0-00
Unavailable
36
BOLT
90109-06202-00
Unavailable
