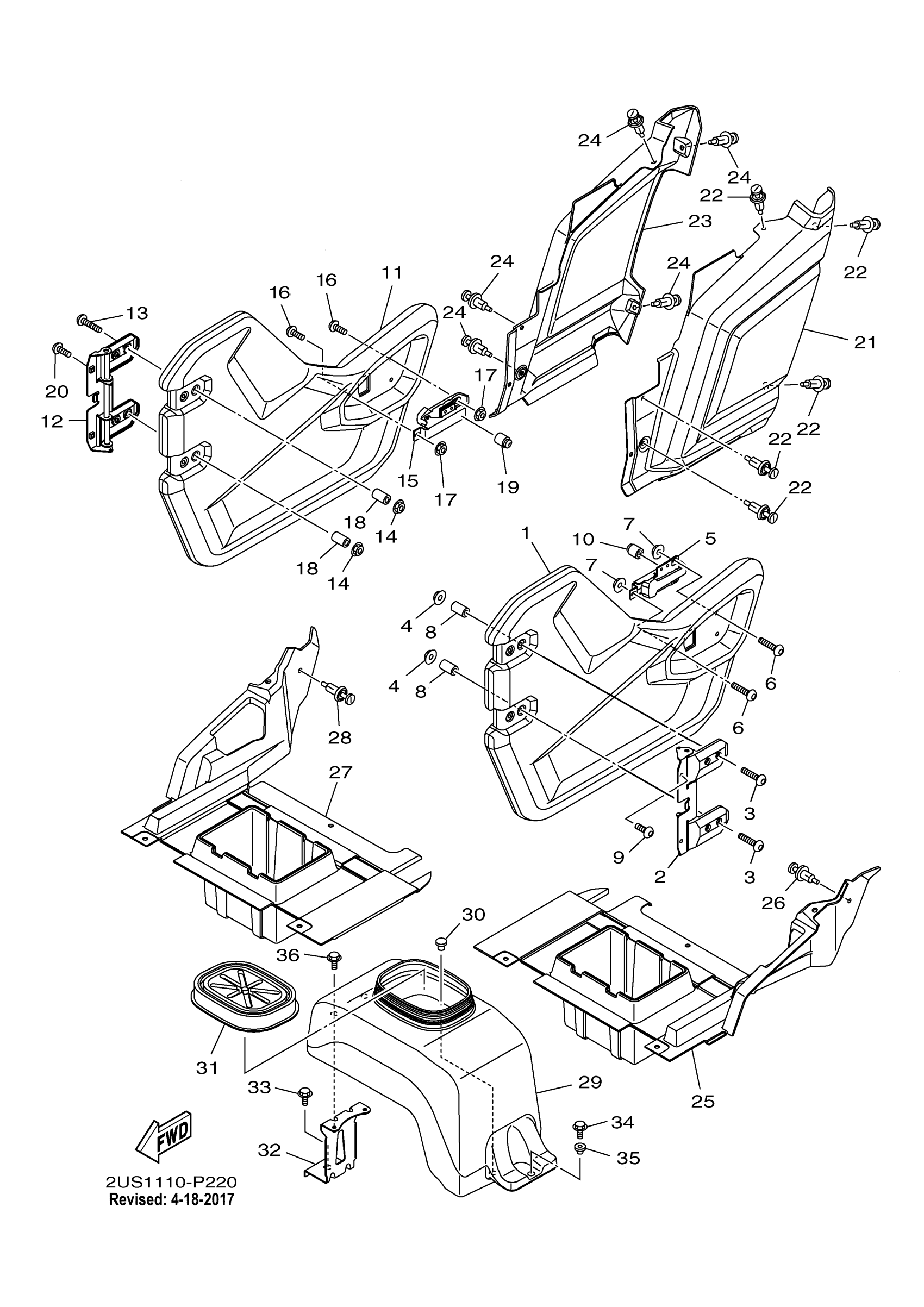

Yamaha YXC700PFR (VIKING VI EPS) 2US12 2015 SIDE COVER Diagram

#

Description
Price

1

PNL., DOOR FR. LH

1XD-K8557-11-00

$65.83

2

HINGE ASSY

1XD-F4772-00-00

$37.92

3

BOLT

90109-06897-00

$0.84

4

NUT, U FLANGE

95604-06200-00

$2.19

5

BODY,LATCH 1

1XD-K7171-10-00

Unavailable

6

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

7

NUT, U FLANGE

95604-06200-00

$2.19

8

COLLAR

90387-06304-00

$2.29

9

BOLT 2

5B4-F1722-00-00

$1.15

10

PAD

1XD-F8378-00-00

Unavailable

11

PNL., DOOR FR. LH

1XD-K8557-11-00

$65.83

12

HINGE ASSY

1XD-F4772-00-00

$37.92

13

BOLT

90109-06897-00

$0.84

14

NUT, U FLANGE

95604-06200-00

$2.19

15

BODY,LATCH 1

1XD-K7171-10-00

Unavailable

16

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$4.64

17

NUT, U FLANGE

95604-06200-00

$2.19

18

COLLAR

90387-06304-00

$2.29

19

PAD

1XD-F8378-00-00

Unavailable

20

BOLT 2

5B4-F1722-00-00

$1.15

21

COVER, SIDE 5

2PG-F171E-00-00

Unavailable

22

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

23

COVER, SIDE 6

2PG-F171X-00-00

$24.48

24

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

25

PLATE, UNDER 4

2PG-F84A6-00-00

Unavailable

26

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

27

PLATE, UNDER 5

2PG-F84A7-00-00

$27.70

28

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

29

CASE

2PG-F8271-01-00

Unavailable

30

. PLUG, BLIND

90605-502U1-00

$2.16

31

LID

1HP-F160F-00-00

Unavailable

32

BRKT., FR. STORAGE

2PG-F253E-00-00

Unavailable

33

BOLT, FLANGE

90105-06831-00

Unavailable

34

BOLT, FLANGE

90105-06833-00

Unavailable

35

COLLAR (4N0)

90387-071E0-00

Unavailable

36

BOLT

90109-06202-00

Unavailable
