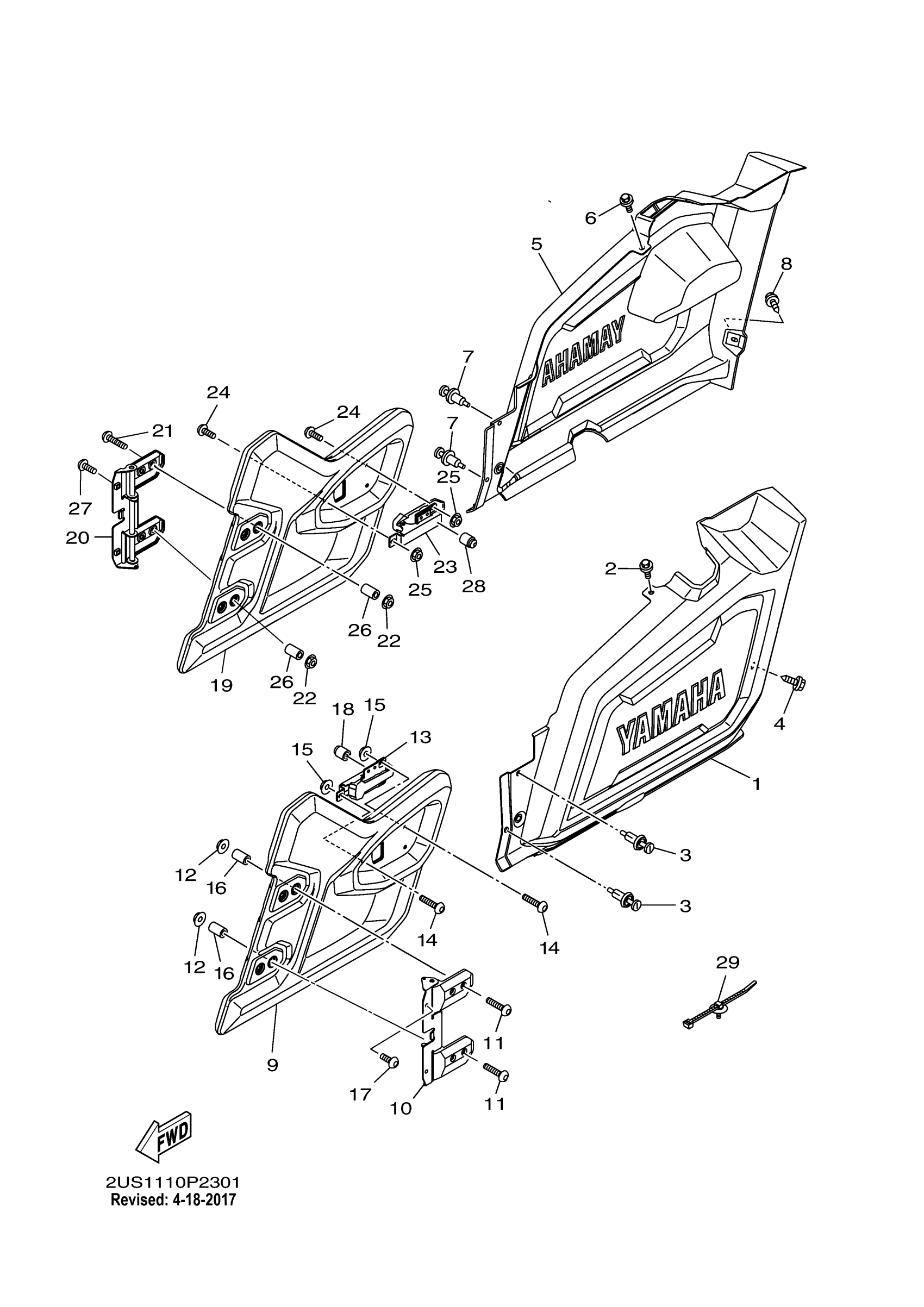

Yamaha YXC700PFR (VIKING VI EPS) 2US12 2015 SIDE COVER 2 Diagram

#

Description
Price

1

COVER, SIDE 2

1XD-F1721-00-00

$30.99

2

BOLT, WITH WASHER

90119-06226-00

$8.49

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

BOLT, WITH WASHER

90119-06226-00

$8.49

5

COVER, SIDE 3

1XD-F1731-00-00

$28.99

6

BOLT, WITH WASHER

90119-06226-00

$8.49

7

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

8

BOLT, WITH WASHER

90119-06226-00

$8.49

9

DOOR PANEL

2PG-K8571-11-00

$63.99

10

HINGE ASS'Y

2PG-F4772-00-00

$52.99

11

BOLT

90109-06897-00

$0.90

12

NUT, U FLANGE

95604-06200-00

$8.49

13

BODY,LATCH 1

1XD-K7171-10-00

Unavailable

14

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

15

NUT, U FLANGE

95604-06200-00

$8.49

16

COLLAR

90387-06304-00

Unavailable

17

SCREW

90149-06847-00

Unavailable

18

PAD

1XD-F8378-00-00

Unavailable

19

DOOR PANEL

2PG-K8571-11-00

$63.99

20

HINGE,SEAT 2

2PG-F4779-00-00

Unavailable

21

BOLT

90109-06897-00

$0.90

22

NUT, U FLANGE

95604-06200-00

$8.49

23

BODY,LATCH 1

1XD-K7171-10-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

25

NUT, U FLANGE

95604-06200-00

$8.49

26

COLLAR

90387-06304-00

Unavailable

27

SCREW

90149-06847-00

Unavailable

28

PAD

1XD-F8378-00-00

Unavailable

29

CLAMP

5B4-F1338-00-00

Unavailable
