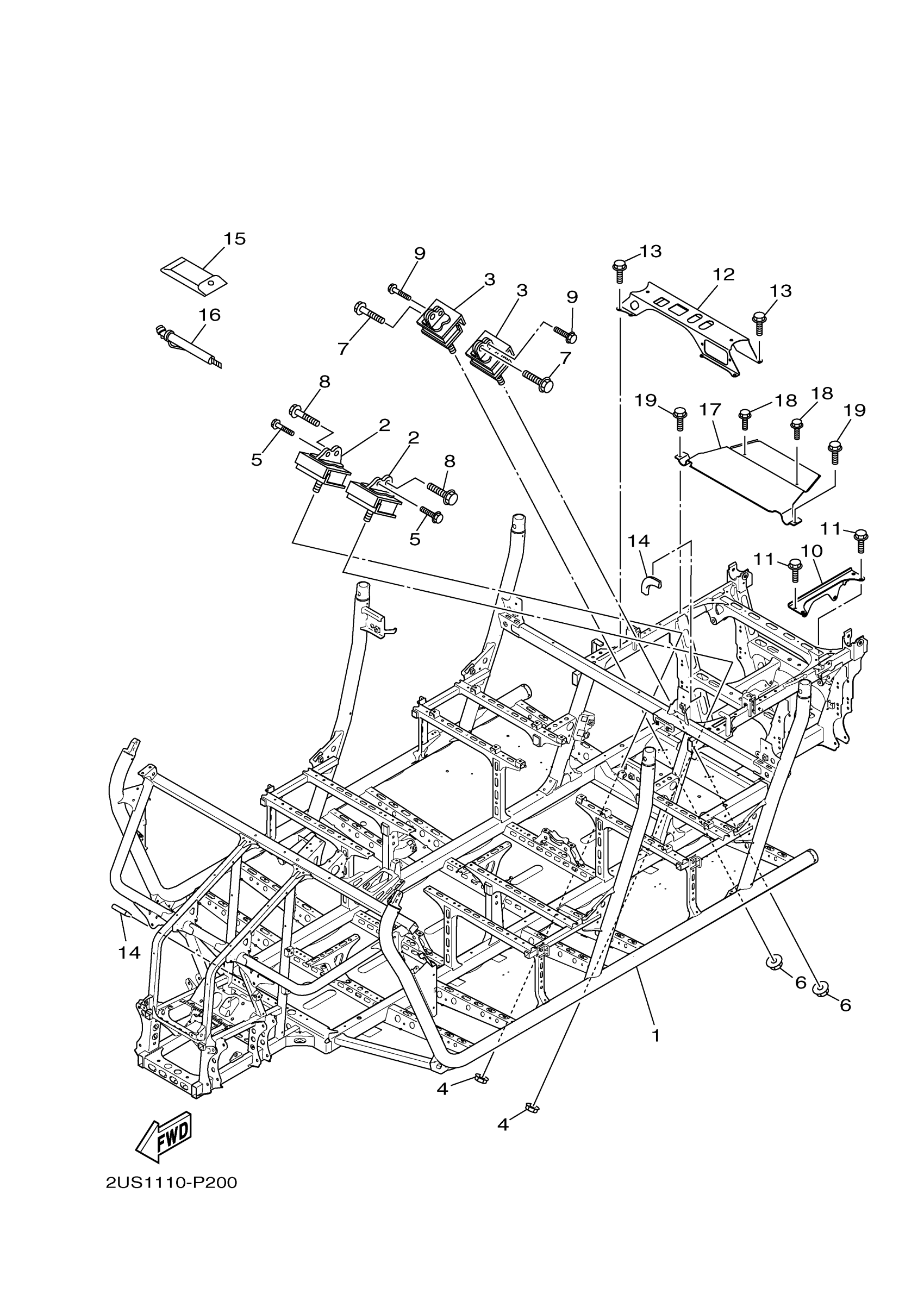

Yamaha YXC700PFR (VIKING VI EPS) 2US12 2015 FRAME Diagram

#

Description
Price

1

FRAME COMP.

2PG-F1110-00-00

Unavailable

2

DAMPER, RUBBER 1

2PG-21485-00-00

$25.18

3

DAMPER, RUBBER 1

2PG-21485-00-00

$25.18

4

NUT, SELF-LOCKING

90185-10011-00

$3.67

5

BOLT, FLANGE(2UJ)

95024-06016-00

$6.22

6

NUT, SELF-LOCKING

90185-10011-00

$3.67

7

BOLT, FLANGE

95812-10035-00

$4.66

8

BOLT, FLANGE

90105-10314-00

Unavailable

9

BOLT, FLANGE(2UJ)

95024-06016-00

$6.22

10

STAY, SUPPORT 1

2PG-F831T-00-00

$14.55

11

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

12

PROTECTOR 1

1XD-F834V-00-00

$27.67

13

BOLT, FLANGE

90105-08867-00

$1.47

14

MOLE 3

4XY-28347-00-00

Unavailable

15

TOOL KIT

5B4-F8100-00-00

$35.55

16

GAUGE, AIR

1XD-F811A-00-00

Unavailable

17

INSULATOR, HEAT

1XD-F2898-10-00

$30.44

18

BOLT, FLANGE

90105-08867-00

$1.47

19

BOLT, FLANGE

90105-08867-00

$1.47
