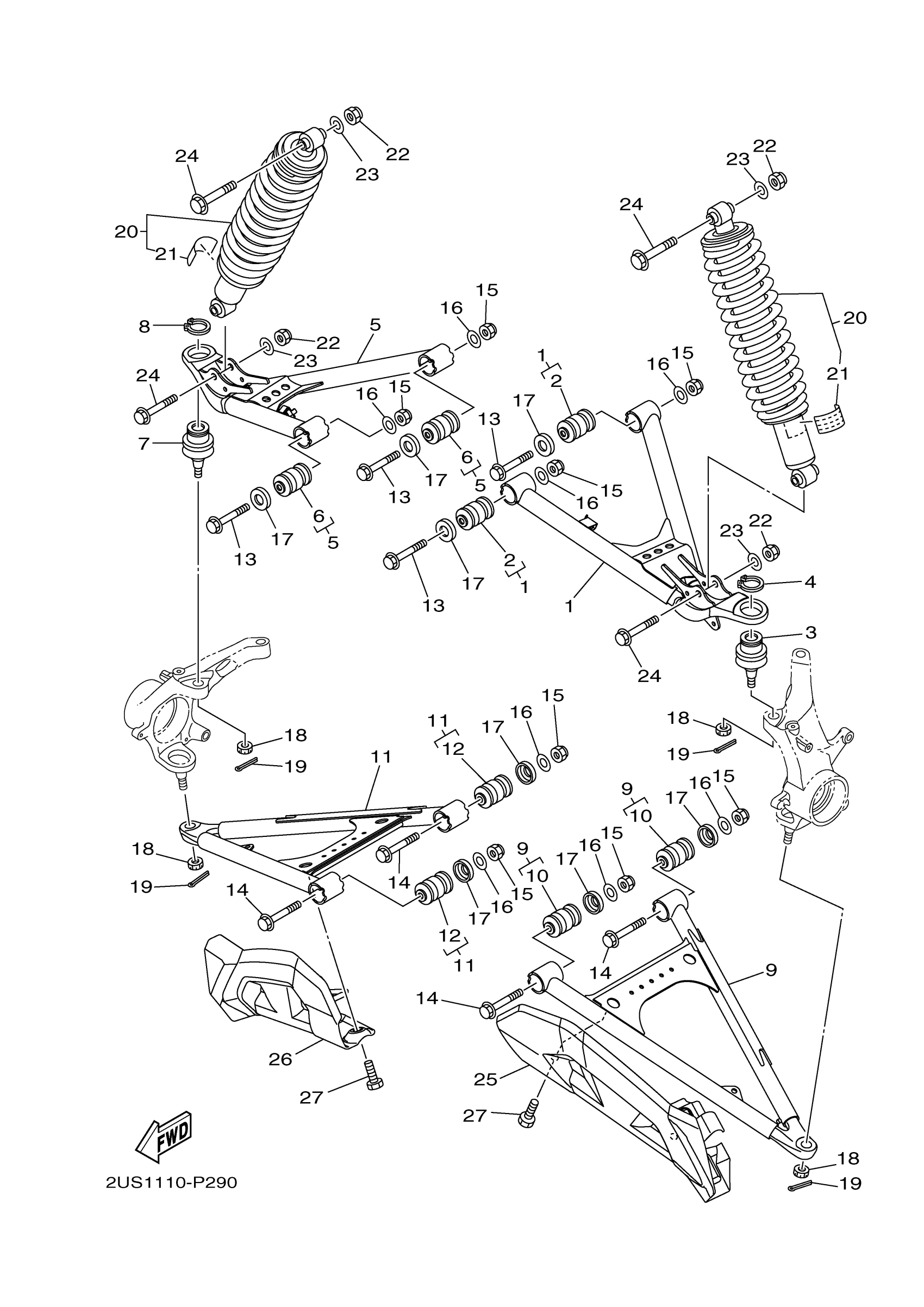

Yamaha YXC700DHFH (VIKING VI HUNTER) 2PG3 2015 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

1XD-F3540-02-00

$87.99

2

BUSH

1HP-F3526-00-00

$22.99

3

BALL JOINT 2

1XD-23579-00-00

$76.99

4

CIRCLIP

93410-32075-00

$9.49

5

FRONTUPPERARMCOMP.(RIGHT)

1XD-F3550-01-00

Unavailable

6

BUSH

1HP-F3526-00-00

$22.99

7

BALL JOINT 2

1XD-23579-00-00

$76.99

8

CIRCLIP

93410-32075-00

$9.49

9

FRONT LOWER ARM CO

2PG-F3570-01-00

$91.99

10

BUSH

1HP-F3526-00-00

$22.99

11

FRONT LOWER ARM CO

2PG-F3580-01-00

$87.99

12

BUSH

1HP-F3526-00-00

$22.99

13

BOLT, FLANGE

90105-10272-00

$7.49

14

BOLT, FLANGE

90105-10267-00

$9.49

15

NUT, SELF-LOCKING

90185-10012-00

$9.49

16

WASHER, PLATE

90201-10035-00

Unavailable

17

WASHER

5KM-22149-10-00

Unavailable

18

NUT, CASTLE

90171-12001-00

Unavailable

19

PIN, COTTER

91490-25020-00

Unavailable

20

SHOCK ABSORBER ASS

2PG-F3390-00-00

Unavailable

21

LABEL,WARNING

1HP-F2259-01-00

Unavailable

22

NUT, SELF-LOCKING

90185-10012-00

$9.49

23

WASHER, PLATE

90201-10035-00

Unavailable

24

BOLT, FLANGE

90105-10199-00

Unavailable

25

COVER, UNDER 1

1XD-F3123-00-00

Unavailable

26

COVER, LOWER 2

1XD-F3133-00-00

Unavailable

27

BOLT

90109-06220-00

Unavailable
