REAR BRAKE CALIPER

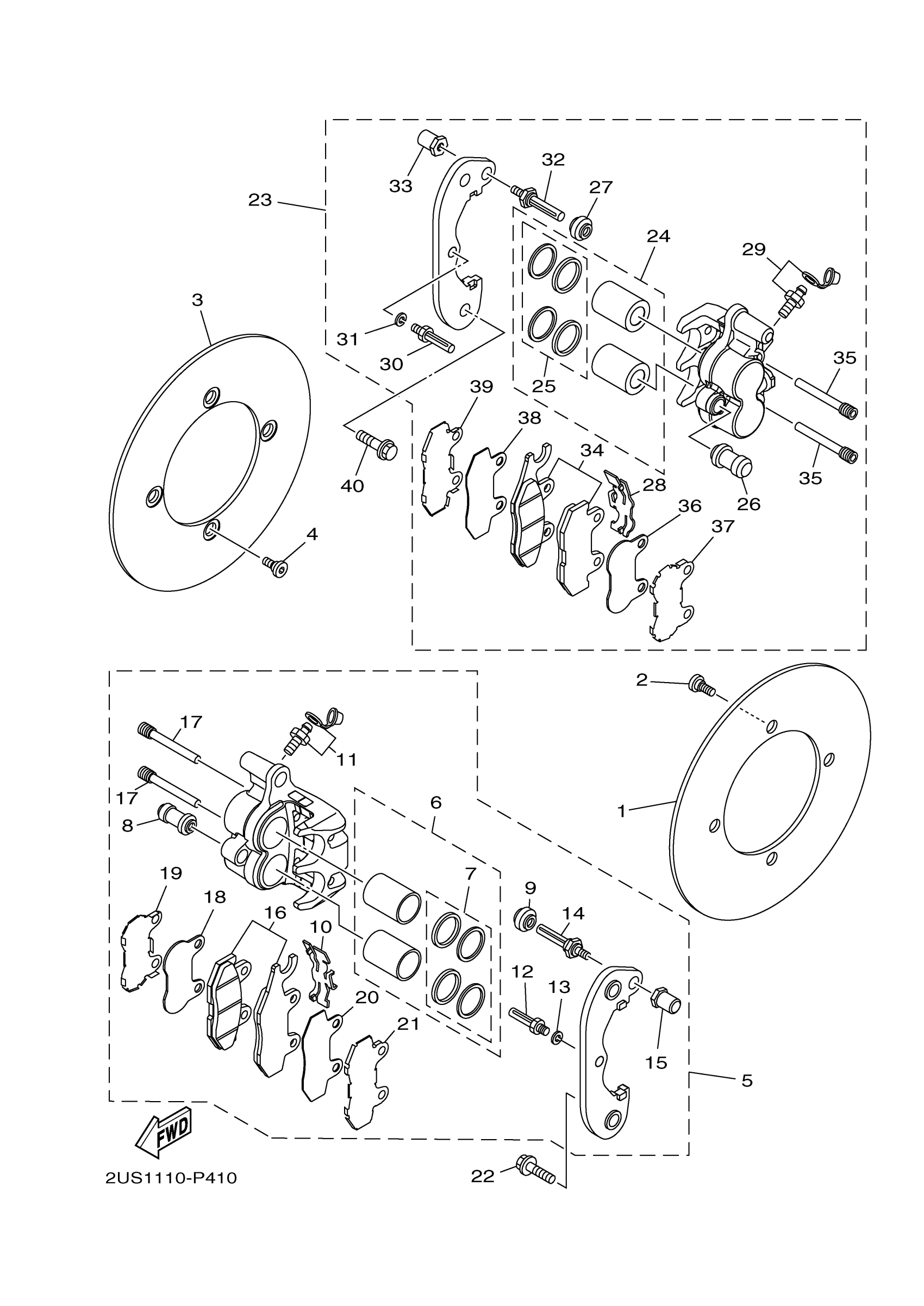

Yamaha YXC700DFR (VIKING VI) 2PG12 2015 REAR BRAKE CALIPER Diagram
#
1
DISC, BRAKE (LEFT)
1XD-F582T-00-00
$53.99
2
BOLT
90109-08087-00
$8.49
3
DISC, BRAKE (LEFT)
1XD-F582T-00-00
$53.99
4
BOLT
90109-08087-00
$8.49
5
CALIPER ASSY, REAR
2PG-2580V-01-00
Unavailable
6
PISTON ASSY, CALIPER
3LD-25802-00-00
$53.99
7
CALIPER SEAL KIT
3JD-25803-00-00
$21.99
8
BOOT 2
1UY-25937-51-00
$14.49
9
BOOT, CALIPER
3JD-25917-00-00
$8.99
10
SPRING, PAD
3LD-25934-01-00
$30.99
11
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
12
BOLT
1UY-25926-51-00
$4.47
13
WASHER, SPRING
1UY-25938-51-00
Unavailable
14
BOLT
3JD-25926-00-00
$7.99
15
NUT
3JD-25961-00-00
$8.99
16
BRAKE PAD KIT 2
1XD-25806-01-00
Unavailable
17
PIN, PAD
3FV-25924-00-00
Unavailable
18
SHIM, CALIPER
2PG-25827-10-00
Unavailable
19
SHIM, CALIPER
2PG-25828-10-00
Unavailable
20
SHIM, CALIPER
2PG-25827-20-00
Unavailable
21
SHIM, CALIPER
2PG-25828-20-00
Unavailable
22
BOLT, FLANGE
90105-10265-00
Unavailable
23
CALIPER ASSY, REAR
2PG-2580W-01-00
Unavailable
24
PISTON ASSY, CALIPER
3LD-25802-00-00
$53.99
25
CALIPER SEAL KIT
3JD-25803-00-00
$21.99
26
BOOT 2
1UY-25937-51-00
$14.49
27
BOOT, CALIPER
3JD-25917-00-00
$8.99
28
SPRING, PAD
3LD-25934-01-00
$30.99
29
BLEED SCREW KIT
36Y-W0048-00-00
$9.99
30
BOLT
1UY-25926-51-00
$4.47
31
WASHER, SPRING
1UY-25938-51-00
Unavailable
32
BOLT
3JD-25926-00-00
$7.99
33
NUT
3JD-25961-00-00
$8.99
34
BRAKE PAD KIT 2
1XD-25806-11-00
Unavailable
35
PIN, PAD
3FV-25924-00-00
Unavailable
36
SHIM, CALIPER
2PG-25827-10-00
Unavailable
37
SHIM, CALIPER
2PG-25828-10-00
Unavailable
38
SHIM, CALIPER
2PG-25827-20-00
Unavailable
39
SHIM, CALIPER
2PG-25828-20-00
Unavailable
40
BOLT, FLANGE
90105-10265-00
Unavailable
