- YXC700DFR (VIKING VI) 2PG12 2015
ELECTRICAL 1

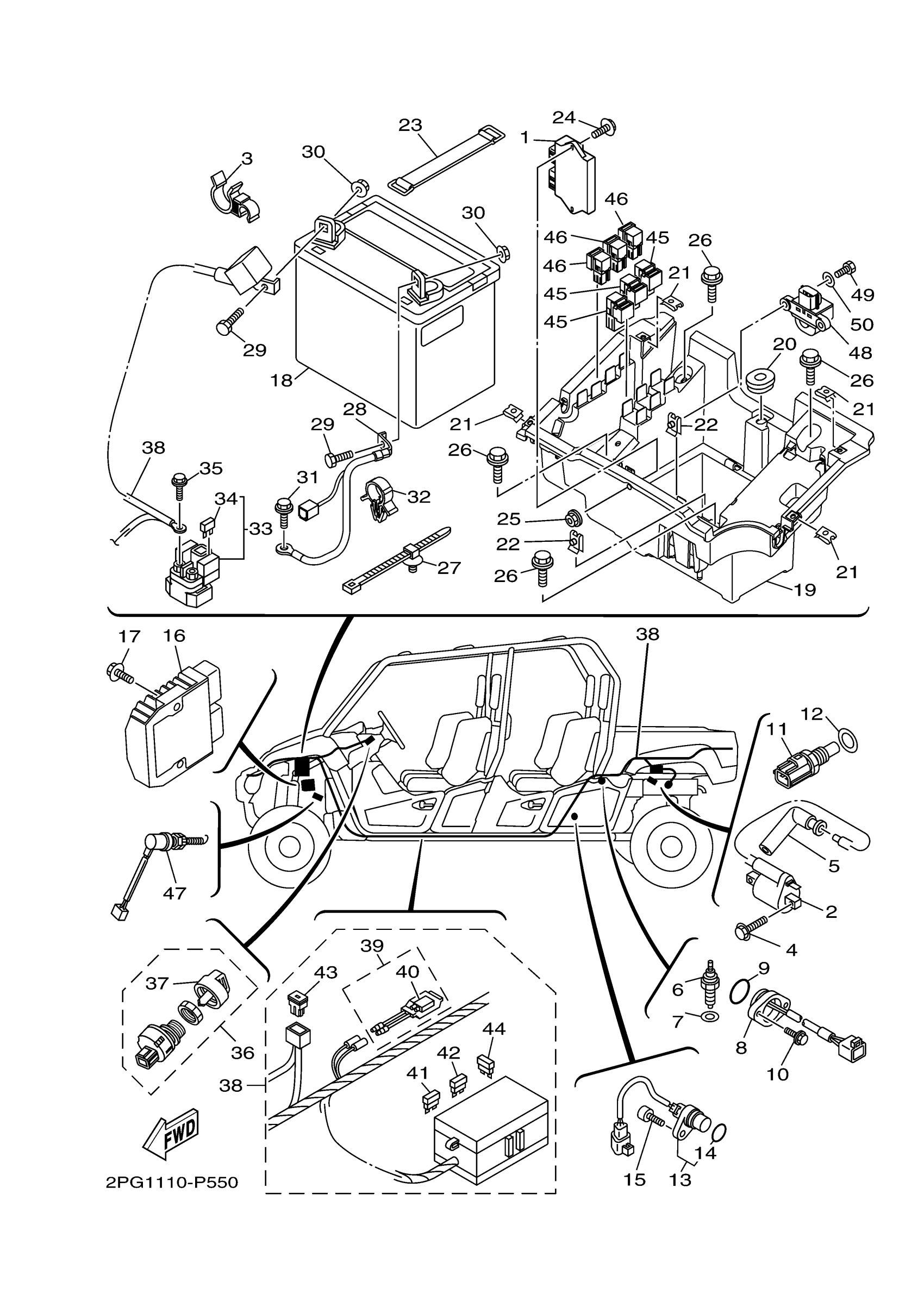

Yamaha YXC700DFR (VIKING VI) 2PG12 2015 ELECTRICAL 1 Diagram
#
1
ENGINE CONTROL UNI
2PG-8591A-00-00
Unavailable
2
IGNITION COIL ASSY
5YU-H2310-14-00
Unavailable
3
CLAMP
90464-18016-00
$2.55
4
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
5
PLUG CAP ASSY
5B4-82370-00-00
$65.99
6
NEUTRAL SWITCH ASSY
3GB-82540-01-00
$58.99
7
GASKET (1KH,1.0T)
90430-10148-00
$5.60
8
NEUTRAL SWITCH ASSY
1XD-82540-02-00
$57.99
9
O-RING (371)
93210-29196-00
$8.49
10
BOLT, WITH WASHER
90119-06137-00
$8.49
11
THERMOSENSOR ASSY
5YP-85790-00-00
$64.99
12
GASKET(2GH)
90430-12202-00
$9.49
13
SENSOR, SPEED
3B4-83755-01-00
$132.99
14
O-RING
4D9-81168-00-00
$6.99
15
BOLT,SOCKET HEAD
91314-06020-00
$1.49
16
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
Unavailable
17
BOLT, FLANGE
90105-06833-00
Unavailable
18
11-U1LD GS BATTERY
11U-1LD00-00-00
Unavailable
19
BOX, BATTERY 1
1XD-H212B-00-00
Unavailable
20
GROMMET(4DN)
90480-01558-00
Unavailable
21
NUT, SPRING
90183-060A6-00
Unavailable
22
NUT, SPRING
90183-05008-00
Unavailable
23
BAND, BATTERY
22F-82131-00-00
Unavailable
24
BOLT, FLANGE
95817-06020-00
Unavailable
25
NUT, FLANGE
95702-06500-00
Unavailable
26
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
27
CLAMP
1NS-F1338-00-00
Unavailable
28
WIRE, MINUS LEAD
2PG-H2116-01-00
Unavailable
29
BOLT(6TD)
97080-08020-00
Unavailable
30
NUT
90179-08015-00
Unavailable
31
BOLT, FLANGE
95812-06014-00
Unavailable
32
CLAMP(3XV)
90464-15157-00
Unavailable
33
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
Unavailable
34
FUSE (10A)
42X-82151-00-00
Unavailable
35
BOLT, FLANGE
95022-06008-00
Unavailable
36
MAIN SWITCH ASSY
1XD-H2510-11-00
Unavailable
37
CAP, KEY
5UG-H2579-00-00
Unavailable
38
WIRE HARNESS ASSY
2PG-82590-00-00
Unavailable
39
CIRCUIT BREAKER ASSY
5B4-82180-00-00
Unavailable
40
THERMO SWITCH ASSY
5B4-82560-00-00
Unavailable
41
FUSE (15A)
67F-82151-50-00
Unavailable
42
. FUSE (10A)
67F-82151-40-00
Unavailable
43
SLOW BLOW FUSE
JR9-82151-00-00
Unavailable
44
FUSE (25A-BL)
5JJ-82151-70-00
Unavailable
45
RELAY ASSY
5DM-81950-01-00
Unavailable
46
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
47
STOP SWITCH ASSY
4KB-82530-11-00
Unavailable
48
LEAN ANGLE SENSOR
3B4-82576-00-00
Unavailable
49
BOLT(6A1)
97095-05016-00
Unavailable
50
WASHER, PLAIN (646)
92990-05600-00
Unavailable
