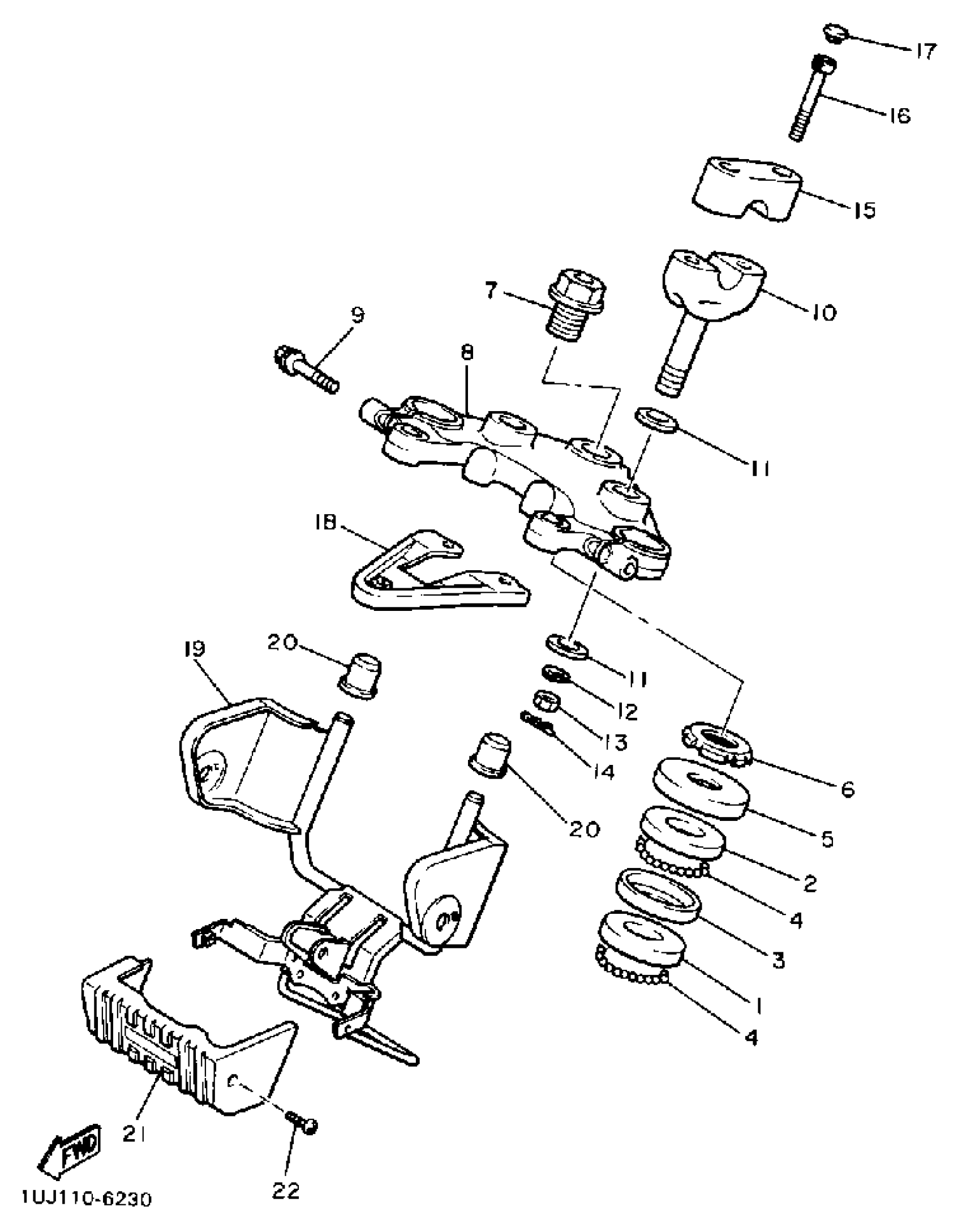

Yamaha YX600WC (RADIAN CA) 1989 STEERING Diagram

#

Description
Price

1

RACE, BALL 2

B6E-23412-00-00

$13.49

2

RACE, BALL 1

4FP-F3411-20-00

$9.99

3

RACE,BALL 2

4FP-F3412-10-00

Unavailable

4

BALL

93501-04011-00

$8.49

5

COVER, BALL RACE

136-23415-00-00

$8.99

6

NUT

90179-25004-00

$24.99

7

BOLT (2A2)

90105-14102-00

$5.60

8

CROWN, HANDLE

1UJ-W2341-00-39

Unavailable

9

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

10

HOLDER, HANDLE LWR

3Y6-23442-00-38

Unavailable

11

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

12

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

13

NUT (682)

95380-10700-00

Unavailable

14

CLIP 136253750000

90468-12006-00

$8.49

15

HOLDER, HANDLE UPPER

4H7-23441-01-38

Unavailable

16

BOLT,SOCKET

91314-08030-00

Unavailable

17

PLUG(42X)

90338-08163-00

Unavailable

18

STAY

1UJ-2317E-00-00

Unavailable

19

STAY, HEADLIGHT

1UJ-23174-00-00

Unavailable

20

DAMPER 1

33M-2317J-00-00

Unavailable

21

COVER, OUTER 1

1UJ-23122-01-00

Unavailable

22

SCREW, BINDING

98907-05010-00

Unavailable
