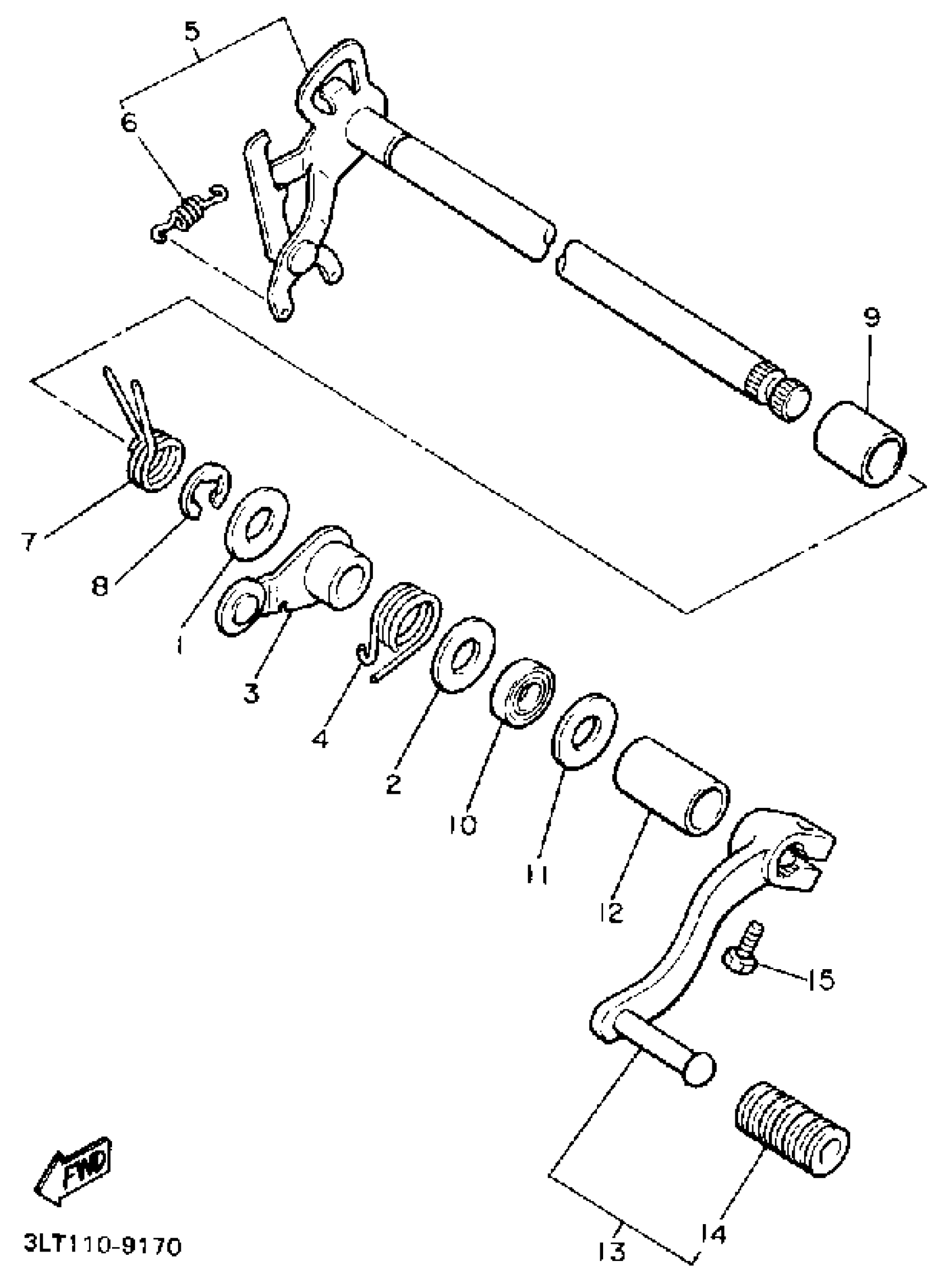

Yamaha YX600WC (RADIAN CA) 1989 SHIFT SHAFT Diagram

#

Description
Price

1

WASHER

90201-12588-00

$7.49

2

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

3

STOPPER LEVER ASSY

4G0-18140-00-00

Unavailable

4

SPRING, TORSION

90508-29640-00

Unavailable

5

SHIFT LEVER ASSEMBLY

4G0-18120-01-00

Unavailable

6

SPRING, TENSION (4H7)

90506-08227-00

$4.19

7

. SPRING, TORSION

90508-32534-00

Unavailable

8

CIRCLIP

99006-10600-00

$9.49

9

COLLAR

90387-12033-00

$7.49

10

SEAL, OIL (30X)

93102-12321-00

$12.49

11

WASHER, PLATE (353)

90201-12575-00

$8.49

12

COLLAR (4G0)

90387-125A8-00

$3.61

13

SHIFT PEDAL ASSEMBLY

3LT-18110-00-00

Unavailable

14

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

15

BOLT, HEXAGON

97017-06020-00

$4.06
