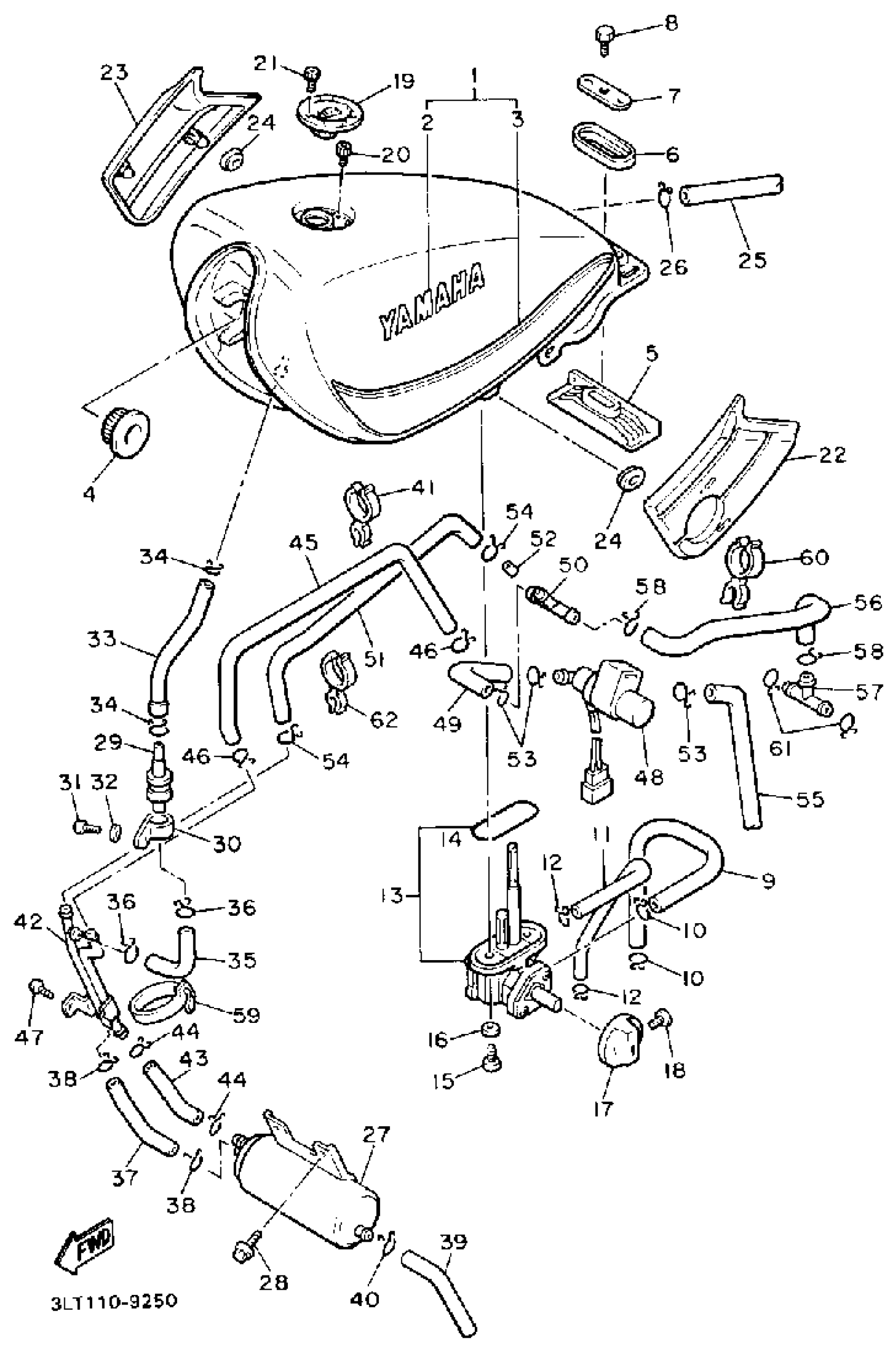

Yamaha YX600WC (RADIAN CA) 1989 FUEL TANK Diagram
#
1
FUEL TANK (DARK PURPLISH BLUE COCKTAIL 1)
1UJ-24110-00-07
Unavailable
1
FUEL TANK (NEW YAMAHA BLACK)
1UL-24110-00-06
Unavailable
1
FUEL TANK (NEW YAMAHA BLACK)
1UL-24110-00-06
Unavailable
1
FUEL TANK
1UL-24110-00-07
Unavailable
2
. EMBLEM, YAMAHA (3LT)
99221-00025-00
Unavailable
2
EMBLEM, YAMAHA
99245-00100-00
Unavailable
3
. GRAPHIC SET
3LT-24240-00-00
Unavailable
5
DAMPER, LOCATING 2
(1UJ-24182-00-00)
Unavailable
6
DAMPER, LOCATING 3
4H7-24183-00-00
Unavailable
7
WASHER, SPECIAL
4H7-24186-00-00
Unavailable
9
PIPE, FUEL 1
4G0-24311-00-00
Unavailable
12
CLIP (16G)
90467-08021-00
Unavailable
13
FUEL COCK ASSEMBLY 1
1UJ-24500-00-00
Unavailable
14
O-RING
4X8-24512-00-00
Unavailable
15
SCREW 256241430000
90149-06011-00
Unavailable
16
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
17
LEVER, COCK
29L-24524-01-00
Unavailable
18
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
19
CAP ASSY
4FM-24602-20-00
Unavailable
19
CAP ASSY
4HM-24602-01-00
Unavailable
20
BOLT, SOCKET
91314-05010-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
22
COVER, SIDE 1
1UJ-24129-00-00
Unavailable
23
COVER, SIDE 2
1UJ-24139-00-00
Unavailable
24
GROMMET(41Y)
90480-01401-00
Unavailable
25
HOSE
90445-106A7-00
Unavailable
26
CLIP
90467-090A2-00
Unavailable
27
CANISTER ASSY
1UL-24170-00-00
Unavailable
28
BOLT, FLANGE
95817-06016-00
Unavailable
29
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
30
CLAMP
90464-15014-00
Unavailable
31
SCREW, PAN
98517-05012-00
Unavailable
32
WASHER(1RW)
92907-05600-00
Unavailable
33
PIPE 4
(1UL-24314-00-00)
Unavailable
35
PIPE 3
(1UL-24313-00-00)
Unavailable
37
PIPE 5
(1UL-24315-00-00)
Unavailable
39
HOSE (L198)
90445-11293-00
Unavailable
40
CLIP(1JH)
90467-11106-00
Unavailable
41
CLAMP
90464-26082-00
Unavailable
42
PIPE JOINT ASSEMBLY
(1UL-24380-00-00)
Unavailable
43
PIPE 6
(1UL-24316-00-00)
Unavailable
45
HOSE
90445-11M71-00
Unavailable
47
SCREW, BINDING
98907-06008-00
Unavailable
48
VLV, OUT VENT CON 2
1UL-14896-00-00
Unavailable
49
PIPE 1
(1UL-14871-00-00)
Unavailable
50
WAY 3
90413-11028-00
Unavailable
51
HOSE (L590)
90445-10020-00
Unavailable
52
NOZZLE 1
(1WJ-15138-00-00)
Unavailable
53
CLIP (4X4)
90467-12052-00
Unavailable
54
CLIP
90467-090A2-00
Unavailable
55
HOSE
90445-137E8-00
Unavailable
56
PIPE 2
1UL-14872-00-00
Unavailable
57
WAY 3
90413-11025-00
Unavailable
58
CLIP (4X4)
90467-12052-00
Unavailable
59
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
60
CLAMP
90464-26091-00
Unavailable
61
CLIP (4X4)
90467-12052-00
Unavailable
62
CLAMP
90464-26082-00
Unavailable
