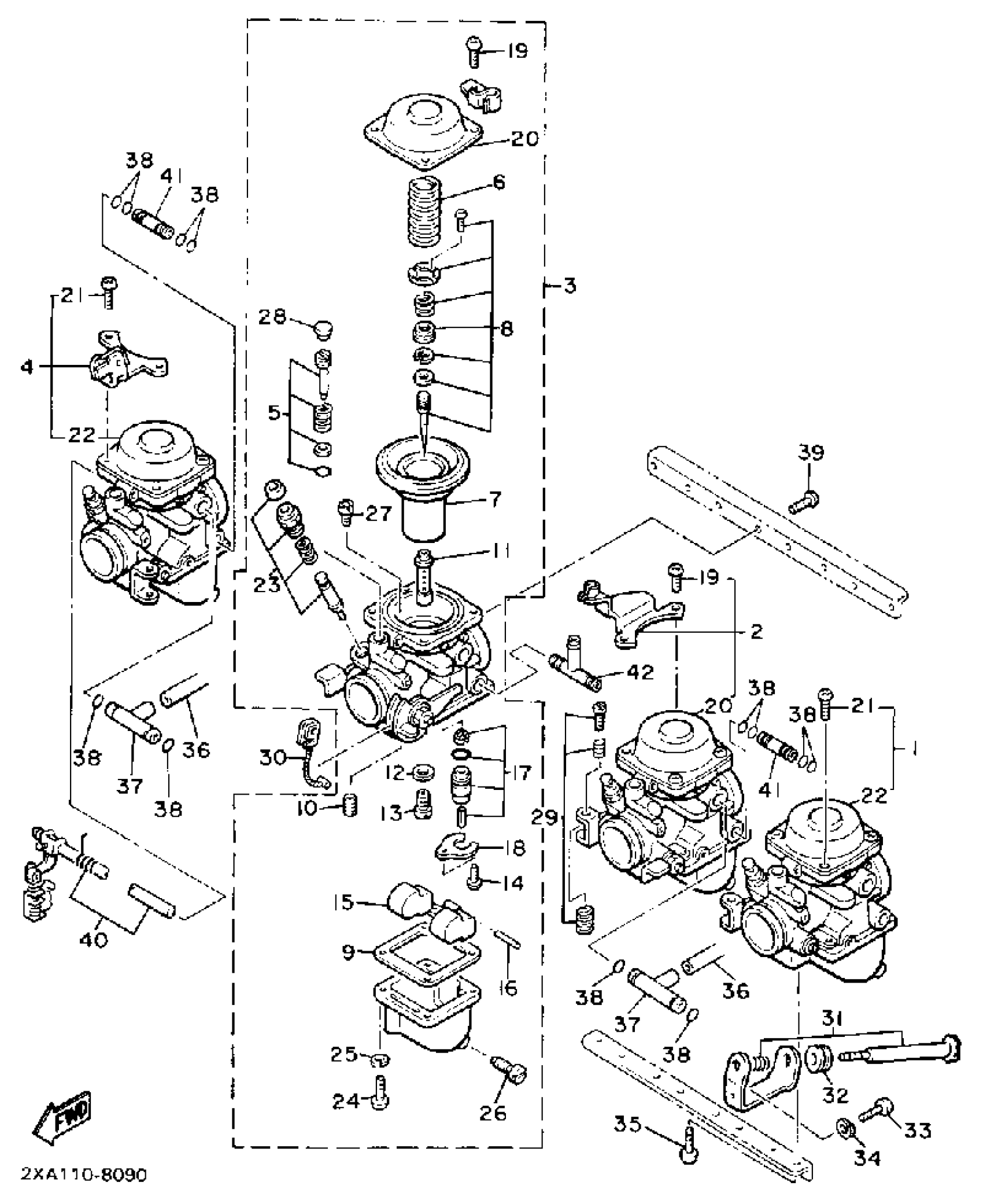

Yamaha YX600WC (RADIAN CA) 1989 CARBURETOR Diagram

#

Description
Price

1

. CARBURETOR ASSEMBLY 1

1UL-14901-01-00

Unavailable

1

. CARBURETOR ASSEMBLY 1

1UL-14901-01-00

Unavailable

2

CARBURETOR ASY 2

1UJ-14902-02-00

Unavailable

2

CARBURETOR ASSEMBLY 2

1UL-14902-01-00

Unavailable

3

. CARBURETOR ASSEMBLY 3

1UL-14903-01-00

Unavailable

3

. CARBURETOR ASSEMBLY 3

1UL-14903-01-00

Unavailable

4

CARBURETOR ASSY 4

1UL-14904-02-00

Unavailable

4

CARBURETOR ASSY 4

1UL-14904-02-00

Unavailable

5

PILOT SCREW SET

12R-14105-00-00

$17.49

6

.. SPRING, DIAPHRAGM

4U8-14933-00-00

Unavailable

7

.. DIAPHRAGM ASSEMBLY

33M-14940-00-00

Unavailable

8

.. NEEDLE SET

1UJ-1490J-00-00

Unavailable

8

NEEDLE SET

1UL-1490J-00-00

Unavailable

9

GASKET, FLOAT CHAMBER

46X-14984-00-00

$22.99

10

JET, PILOT (# 30)

4G0-14142-30-00

$11.99

11

.. NOZZLE MAIN

1UJ-14141-36-00

Unavailable

12

WASHER,MAIN JET

137-14153-00-00

Unavailable

13

JET,MA1N #97.5

620-1423A-70-A0

Unavailable

14

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

15

FLOAT

4G0-14985-00-00

Unavailable

16

PIN, FLOAT

537-14186-00-00

Unavailable

17

NEEDLE VALVE SET

25G-14107-23-00

Unavailable

18

. PLATE

2H0-14146-00-00

Unavailable

19

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

20

.. COVER, DIAPHRAGM

33M-14958-00-00

Unavailable

21

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

22

.. COVER, DIAPHRAGM

35J-14958-00-00

Unavailable

23

.. STARTER SET

33M-1410A-00-00

Unavailable

24

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

25

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

26

PLUG, DRAIN

12R-14191-00-00

Unavailable

27

JET, MAIN (#135)

3G2-14231-27-00

Unavailable

28

CAP

3F9-14118-00-00

Unavailable

29

. STOP SCREW SET

1UJ-1490K-01-00

Unavailable

30

. CABLE

4G0-14130-00-00

Unavailable

31

. THROTTLE SCREW SET

31A-14103-00-00

Unavailable

32

. BUSH

4G0-14998-00-00

Unavailable

33

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

34

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

35

SCREW, PAN

98507-06014-00

Unavailable

36

HOSE

50H-14987-00-00

Unavailable

37

. PIPE, STARTER CON

4V7-14988-00-00

Unavailable

38

O-RING

36Y-14147-00-00

Unavailable

39

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

40

. STARTER LEVER SET

1UJ-1490L-00-00

Unavailable

41

. PIPE, STARTER CON

4G0-14988-00-00

Unavailable

42

PIPE, STARTER CONNECTING

4U8-14988-00-00

Unavailable
