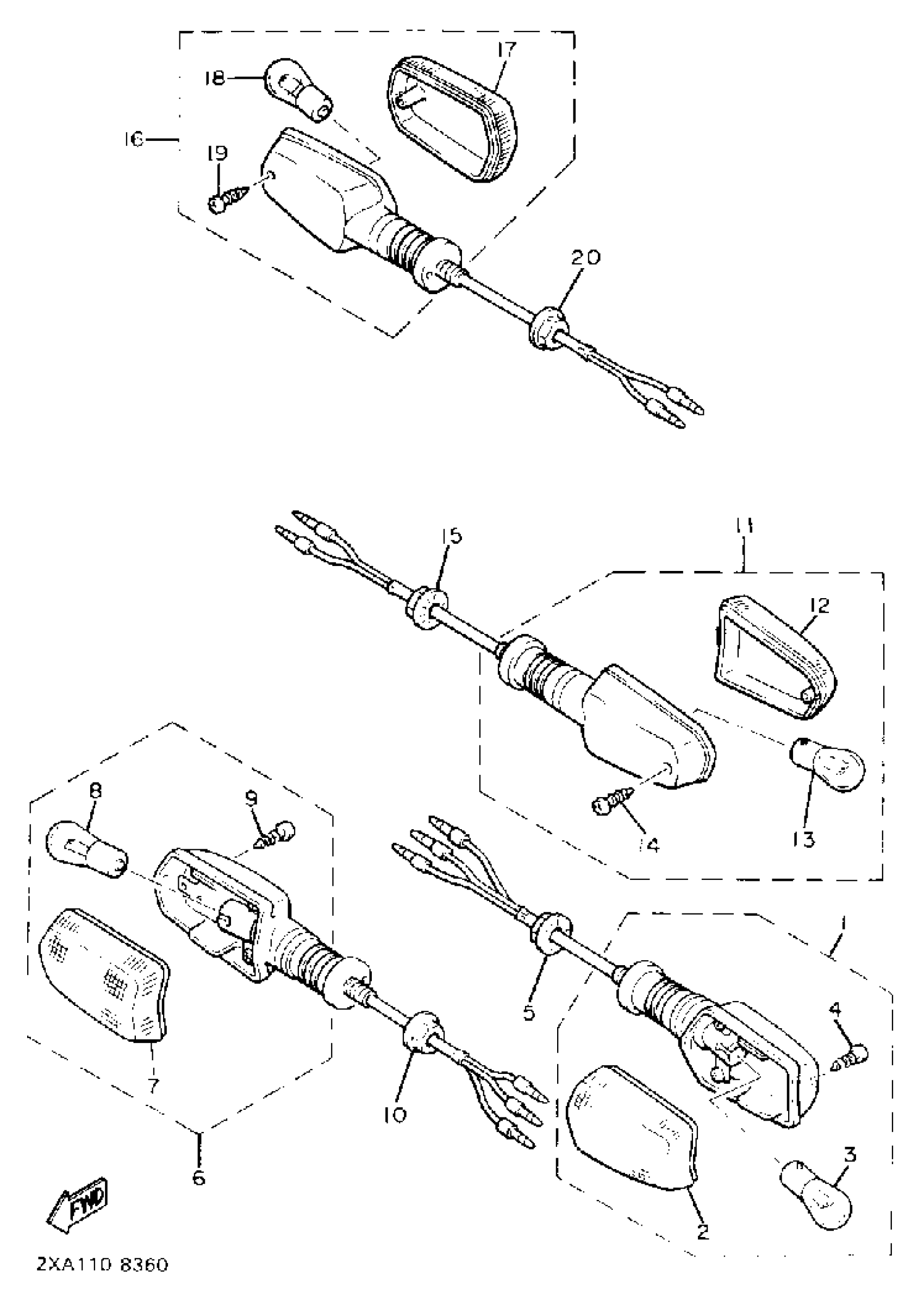

Yamaha YX600UC (RADIAN CA) 1988 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1UF-83310-00-00

$135.99

2

LENS, FLASHER

51L-83332-01-00

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

SCREW, PAN TAP.2

97707-40520-00

$9.49

5

NUT(3GG)

90179-12588-00

$7.49

6

FRONT FLASHER LIGHT ASSY 2

1UF-83320-00-00

$135.99

7

LENS, FLASHER 2

51L-83342-01-00

$11.99

8

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

9

SCREW, PAN TAP.2

97707-40520-00

$9.49

10

NUT(3GG)

90179-12588-00

$7.49

11

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

12

LENS, FLASHER 2

51L-83342-01-00

$11.99

13

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

14

SCREW, PAN TAP.2

97707-40520-00

$9.49

15

NUT(3GG)

90179-12588-00

$7.49

16

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

Unavailable

17

LENS, FLASHER

51L-83332-01-00

Unavailable

18

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

19

SCREW, PAN TAP.2

97707-40520-00

$9.49

20

NUT(3GG)

90179-12588-00

$7.49
