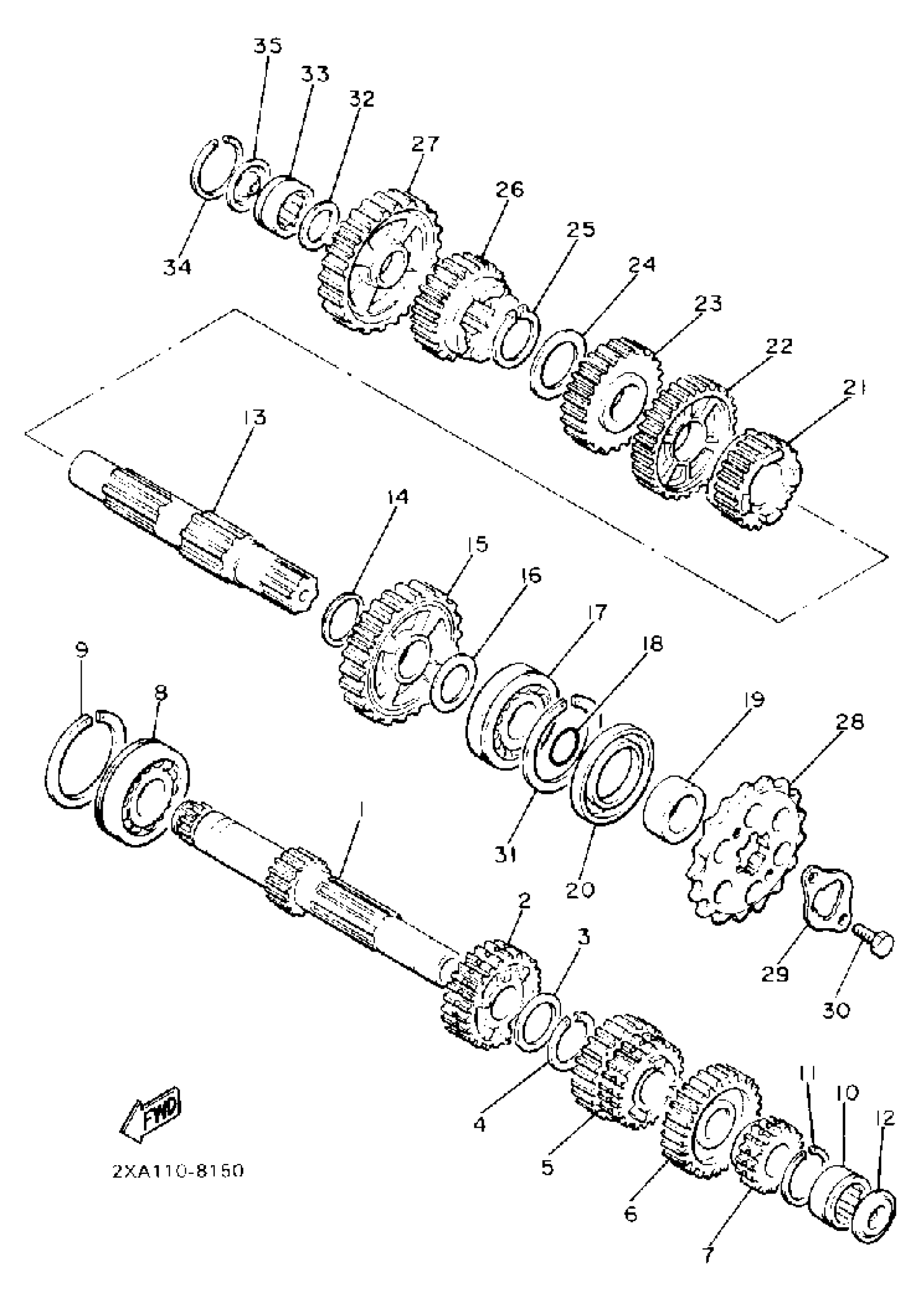

Yamaha YX600UC (RADIAN CA) 1988 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

4G0-17411-00-00

Unavailable

2

GEAR, 5TH PINION (28T)

4U8-17151-01-00

Unavailable

3

WASHER (3J3)

90209-22191-00

$7.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION (22/25T)

4U8-17131-00-00

Unavailable

6

GEAR, 6TH PINION (30T)

4U8-17161-00-00

Unavailable

7

GEAR, 2ND PINION

4U8-17121-01-00

Unavailable

8

UNAVAILABLE IN PRICE BOOK

90306-30530-00

Unavailable

9

CIRCLIP

278-17424-01-00

$21.99

10

BEARING, CYL.#11

93311-42045-00

Unavailable

11

CIR CLIP

278-17425-00-00

$8.99

12

NOZZLE

4G0-17433-01-00

Unavailable

13

AXLE, DRIVE

4G0-17421-00-00

Unavailable

14

. WASHER, PLATE

90201-273A9-00

Unavailable

15

. GEAR, 2ND WHEEL (37T)

4G0-17221-00-00

Unavailable

16

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

17

BEARING(1WG)

93306-30550-00

Unavailable

18

O-RING

93210-22298-00

Unavailable

19

. COLLAR

90387-257A3-00

Unavailable

20

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

21

GEAR,6TH WHEEL

4G0-17261-01-00

Unavailable

22

GEAR, 3RD WHEEL

4G0-17231-01-00

Unavailable

23

GEAR, 4TH WHEEL

4G0-17241-01-00

Unavailable

24

WASHER (3J3)

90209-22191-00

$7.49

25

CIRCLIP (4L0)

93440-25084-00

$5.60

26

GEAR, 5TH WHEEL (29T)

12R-17251-00-00

Unavailable

27

GEAR, 1ST WHEEL (41T)

4G0-17211-00-00

Unavailable

28

SPROCKET, DRIVE 16T (49A1746161)

49A-17460-00-00

Unavailable

29

HOLDER, SPROCKET

3Y1-17456-00-00

Unavailable

30

BOLT, HEXAGON

97017-06012-00

Unavailable

31

CIRCLIP

278-17424-01-00

$21.99

32

WASHER PLATE 328171160000

90201-20276-00

Unavailable

33

BEARING, CYL.#11

93311-42045-00

Unavailable

34

CIR CLIP

278-17425-00-00

$8.99

35

NOZZLE

4G0-17433-01-00

Unavailable
