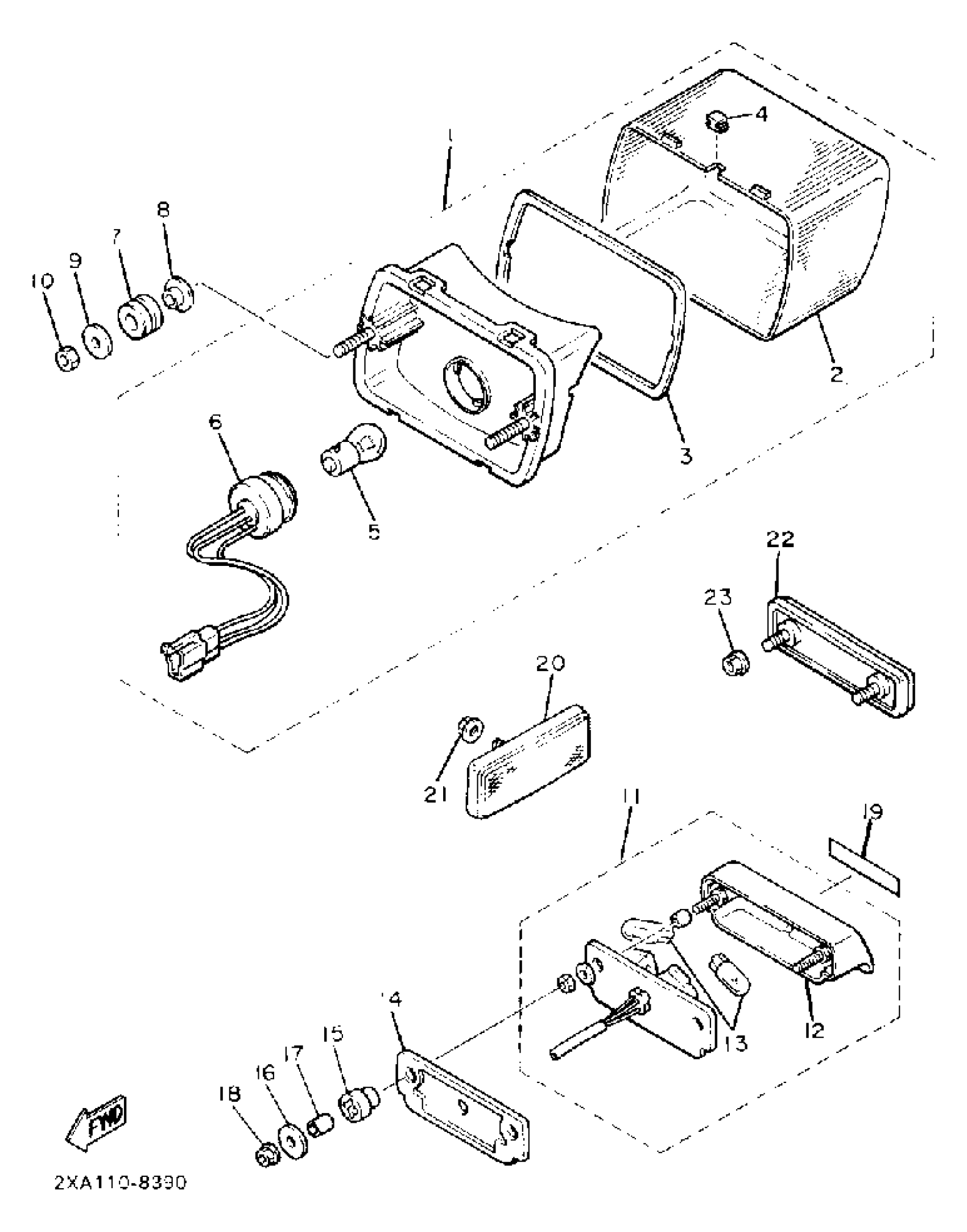

Yamaha YX600UC (RADIAN CA) 1988 TAILLIGHT Diagram
#
Description
Price
1
TAILLIGHT UNIT ASSEMBLY
1UJ-84710-A0-00
Unavailable
2
. LENS, TAILLIGHT
1FN-84721-E0-00
Unavailable
3
GASKET, TAIL LENS
47X-84723-00-00
Unavailable
4
. GROMMET
1A2-84718-40-00
Unavailable
6
. CORD ASSEMBLY
1UJ-84735-A0-00
Unavailable
10
NUT, HEXAGON
95380-06600-00
Unavailable
11
LICENCE LIGHT UNIT ASSY
4GY-84745-01-00
Unavailable
12
. BODY, LICENSE LIGHT
2AX-84749-00-00
Unavailable
13
. BULB, METER 12V 38W
3F9-84744-00-XX
Unavailable
15
DAMPER
3F9-84553-00-00
Unavailable
16
WASHER, SPECIAL
3F9-84754-00-00
Unavailable
17
COLLAR(53Y)
90387-066H9-00
Unavailable
18
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
19
EMBLEM
1UJ-24786-00-00
Unavailable
20
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
21
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
22
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
23
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
