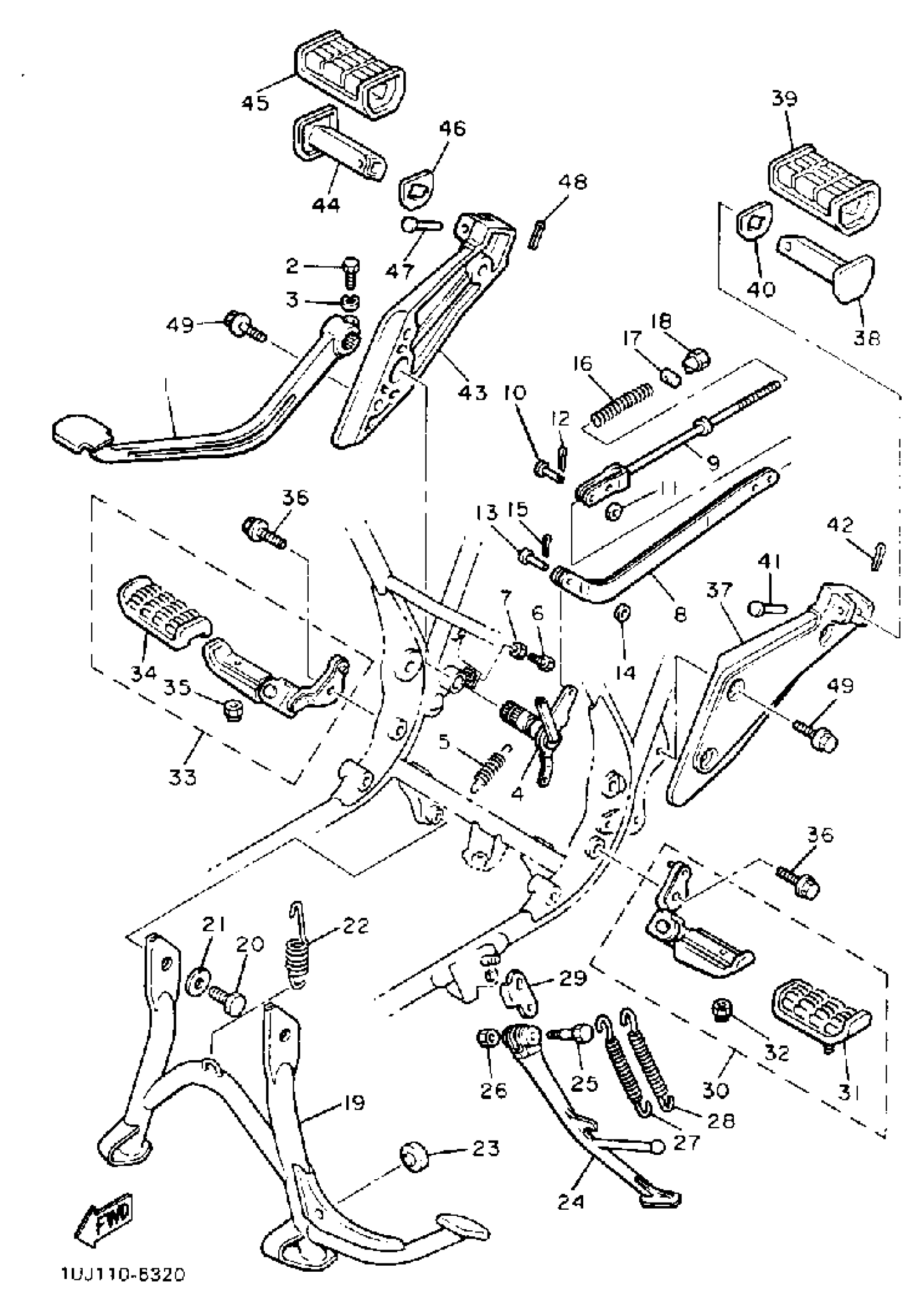

Yamaha YX600UC (RADIAN CA) 1988 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

4G0-27211-00-00

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SHAFT, BRAKE PEDAL

1UJ-27212-00-00

Unavailable

5

SPRING, TENSION (2X3)

90506-20193-00

$14.99

6

SCREW 341272170000

90153-06008-00

$7.49

7

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

8

ROD, JOINT

1UJ-27241-00-00

Unavailable

9

ROD, BRAKE

1UJ-27231-00-00

Unavailable

10

PIN, CLEVIS (24X)

90240-06103-00

$7.49

11

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

12

PIN, COTTER

91490-20025-00

$1.99

13

PIN (3H0)

90240-08067-00

Unavailable

14

WASHER, PLATE 1562722600

90201-08083-00

$9.49

15

PIN, COTTER

91490-20025-00

$1.99

16

SPRING, (180-27236-00)

90501-10245-00

Unavailable

17

PIN 1562723700

90249-12008-00

Unavailable

18

NUT (25K)

90179-06411-00

Unavailable

19

STAND, MAIN

1UJ-27111-00-R4

Unavailable

20

BOLT (97002-10016-00)

97003-10016-00

Unavailable

21

WASHER, PLATE (3J6)

90201-100A1-00

Unavailable

22

SPRING, TENSION

90506-40251-00

Unavailable

23

STOPPER, MAIN STAND

1UJ-27114-00-00

Unavailable

24

STAND, SIDE

4G0-27311-00-R4

Unavailable

25

BOLT

90109-10473-00

Unavailable

26

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

27

SPRING, TENSION (4K0)

90506-18224-00

Unavailable

28

SPRING, TENSION (4K0)

90506-26225-00

Unavailable

29

LINK, SIDE STAND

3VD-27315-00-00

Unavailable

30

FRT FOOTREST ASSEMBLY L

1UJ-27410-00-R4

Unavailable

31

COVER, FOOTREST

22N-27413-00-00

Unavailable

32

NUT, SELF-LOCKING

95617-06100-00

Unavailable

33

FRT FOOTREST ASSEMBLY R

1UJ-27420-00-R4

Unavailable

34

COVER, FOOTREST

22N-27413-00-00

Unavailable

35

NUT, SELF-LOCKING

95617-06100-00

Unavailable

36

BOLT, FLANGE(JN5)

95817-12030-00

Unavailable

37

BRACKET 2

1UJ-27442-00-00

Unavailable

38

. FOOTREST, REAR 1

4X7-27431-00-00

Unavailable

39

. COVER, REAR FOOTREST

3H5-27433-00-00

Unavailable

40

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

41

PIN, CLEVIS

91702-06038-00

Unavailable

42

PIN, COTTER

91490-16020-00

Unavailable

43

BRACKET 3

1UJ-27443-00-00

Unavailable

44

. FOOTREST, REAR 2

4X7-27441-00-00

Unavailable

45

. COVER, REAR FOOTREST

3H5-27444-00-00

Unavailable

46

. WASHER, SPECIAL SHAPE

90209-18190-00

Unavailable

47

PIN, CLEVIS

91702-06038-00

Unavailable

48

PIN, COTTER

91490-16020-00

Unavailable

49

BOLT,SOCKET

91314-10025-00

Unavailable
