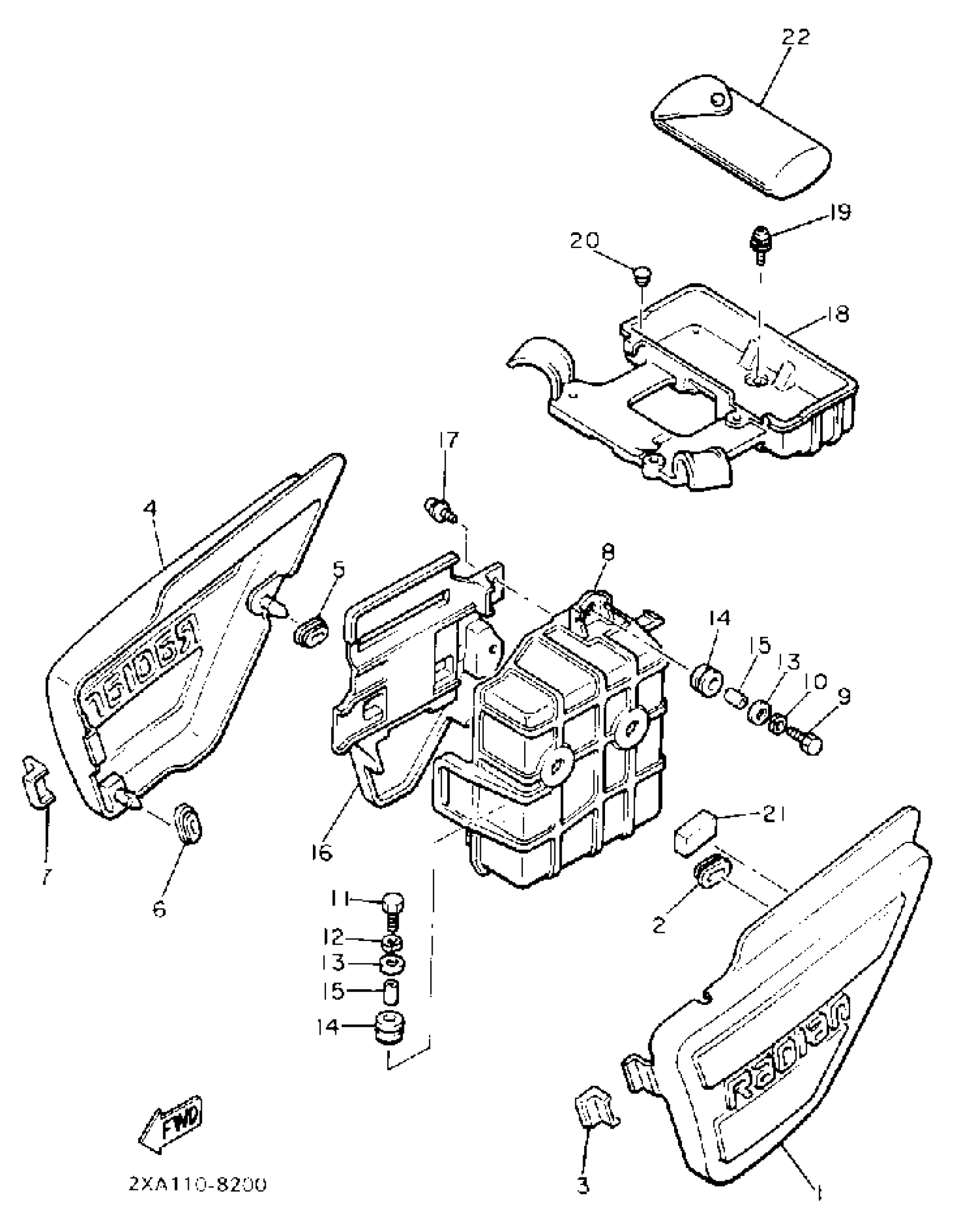

Yamaha YX600UC (RADIAN CA) 1988 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

1UJ-21711-00-00

Unavailable

2

GROMMET(41Y)

90480-01401-00

$8.49

3

DAMPER, SIDE COVER

466-21717-00-00

$10.99

4

COVER, SIDE 2

1UJ-21721-00-00

Unavailable

5

GROMMET(41Y)

90480-01401-00

$8.49

6

GROMMET(41Y)

90480-01401-00

$8.49

7

DAMPER, SIDE COVER

466-21717-00-00

$10.99

8

BOX

4G0-21170-01-00

Unavailable

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER, SPRING

92995-06100-00

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

14

GROMMET (2N3)

90480-16233-00

$8.49

15

COLLAR

90387-06113-00

$11.49

16

LID

5K5-28185-01-00

Unavailable

17

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

18

BOX, TOOL

(4G0-21171-01-00)

Unavailable

19

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

20

DAMPER, SIDE COVER

1J7-21717-00-00

Unavailable

21

DAMPER 1

83R-14425-00-00

Unavailable

22

TOOL KIT

46X-W2810-00-00

Unavailable
